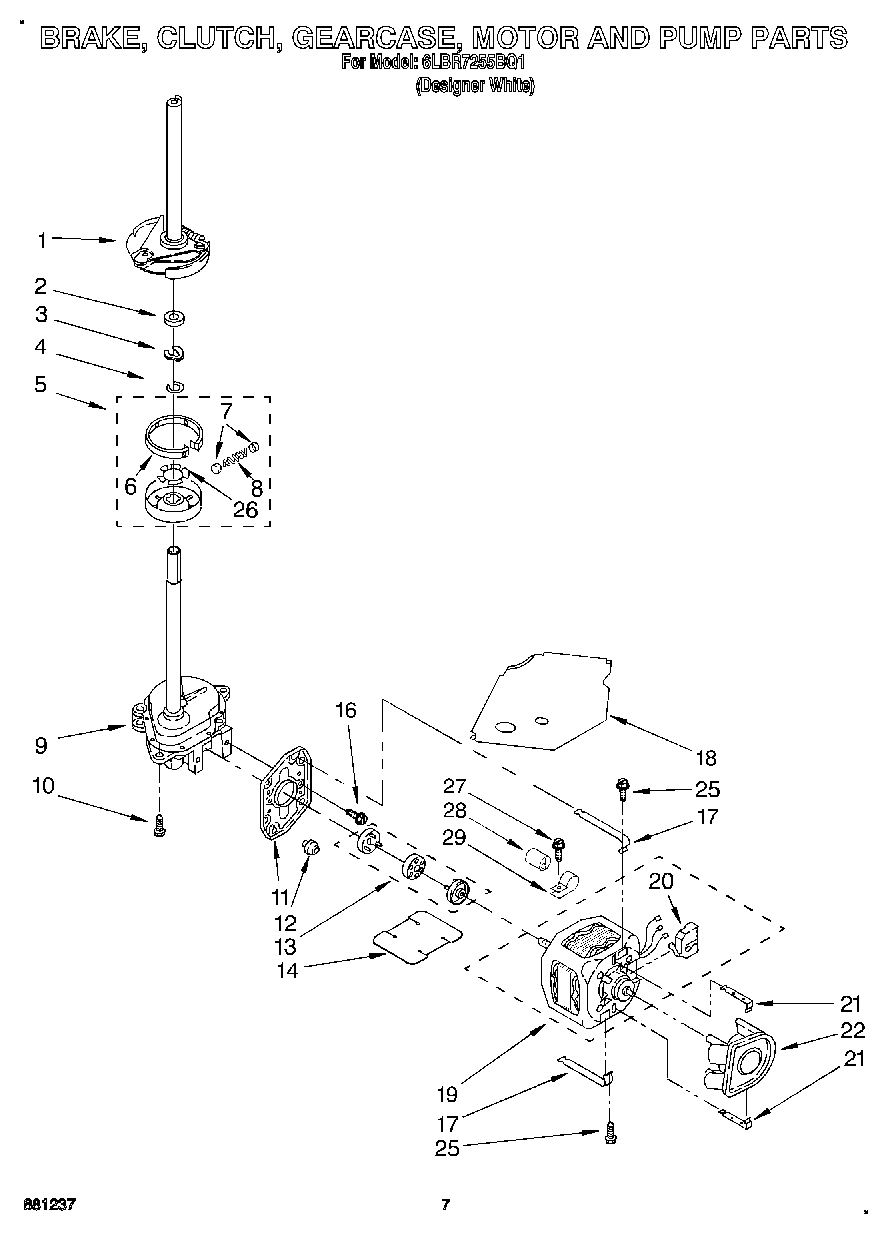

6LBR7255BQ1 05 – BRAKE, CLUTCH, GEARCASE, MOTOR & PUMP

6LBR7255BQ1 05 – BRAKE, CLUTCH, GEARCASE, MOTOR & PUMP

Written by

in

6LBR7255BQ1 05 – BRAKE, CLUTCH, GEARCASE, MOTOR & PUMP

Products

PositionProduct
1W10820043 Whirlpool Washer Drive and Brake Basket Assembly
2WP63292 Whirlpool Washer
3WPW10080230 Whirlpool Ring
4285353 Whirlpool Ring
5285785 Whirlpool Washer Direct Drive Clutch
6285790 Whirlpool Washer Clutch Band and Lining Kit
7WP62646 Whirlpool Cap
8WP3946792 Whirlpool Spring
93363395 Whirlpool Gearcase
11WP62611 Whirlpool Plate
12WP62691 Whirlpool Grommet
13285753A Whirlpool Washer Direct Drive Motor Coupling
14WP3946532 Whirlpool Shield
16WP3400516 Whirlpool Screw
17WPW10086010 Whirlpool Motor Retainer Clip
18W10838408 Whirlpool Motor Shield
19WP3363190 Whirlpool Drive Motor
20Switch, Main Drive Motor
21WP8546127 Whirlpool Retainer Clip
22WP3363892 Whirlpool Water Pump
25WP273556 Whirlpool Screw
26Clip, Anti-Rattle
27WP3390631 Whirlpool Screw
28CAPACITOR
29357030 Whirlpool Clamp
