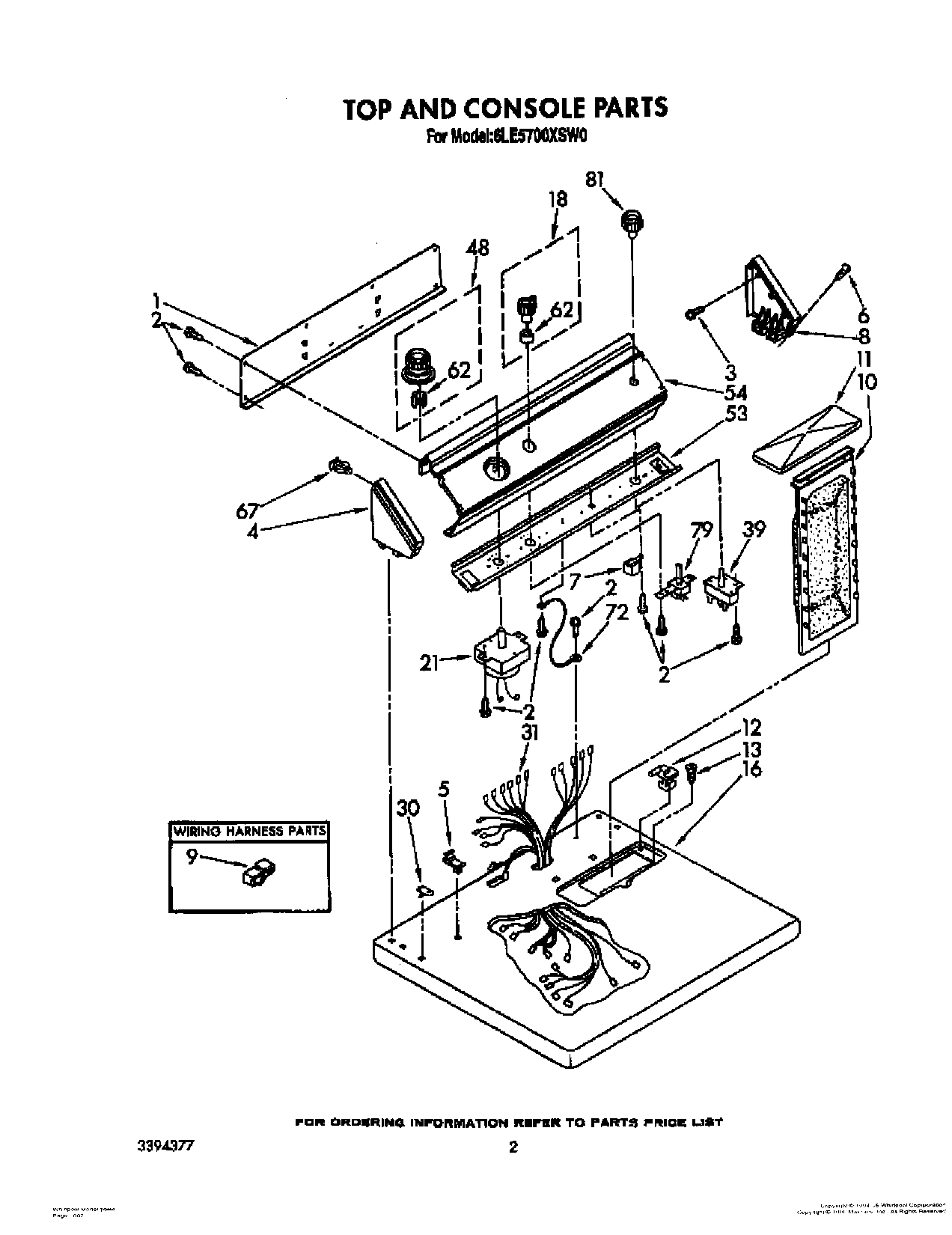

6LE5700XSW0 01 – TOP AND CONSOLE

Products

PositionProduct
350930 Whirlpool White Spray Paint
Literature Parts (Do-It-Yourself Manual 07-03 Litho In U.S.A. (bd))
WPL LIT677971
Washer (Belt Drive)
Guide, Dryer
Dryer
WPL LIT3394023
Use & Care Guide
350938 Whirlpool Spray Gun
72017 Whirlpool Appliance Touch-Up Paint White
799344 Whirlpool Refrigerator Paint
List, Service Parts
Leveler (Thinner)
WPL LIT677967
1Panel, Rear
2SCREW
3WPL 355326
4Cap, End (L.H.)
5Stop, Push-In Top
6WPL 64211
7WP694419 Whirlpool Buzzer Adjuster
8WPL 63795
9Clip, Retainer
10339392V Whirlpool Dryer Lint Filter Screen
11Cover, Lint Screen (White)
12WPW10044480 Whirlpool Hinge Assembly
12WPW10044470 Whirlpool Hinge Assembly
13W11693756 Whirlpool Screw Assembly
16Top (White)
18Control Knob, Temperature
21Timer, 50 Hz.
30Nut, Push-In (2)
31Harness, Wiring
39Switch, Push-To-Start
48Timer Knob Assembly
53Bracket, Control
54Panel, Control
62WP688805 Whirlpool Spring Clip
67WP689559 Whirlpool Nut
72Wire, Ground
79Switch, Temperature Selector
81Knob, Push-To-Start
