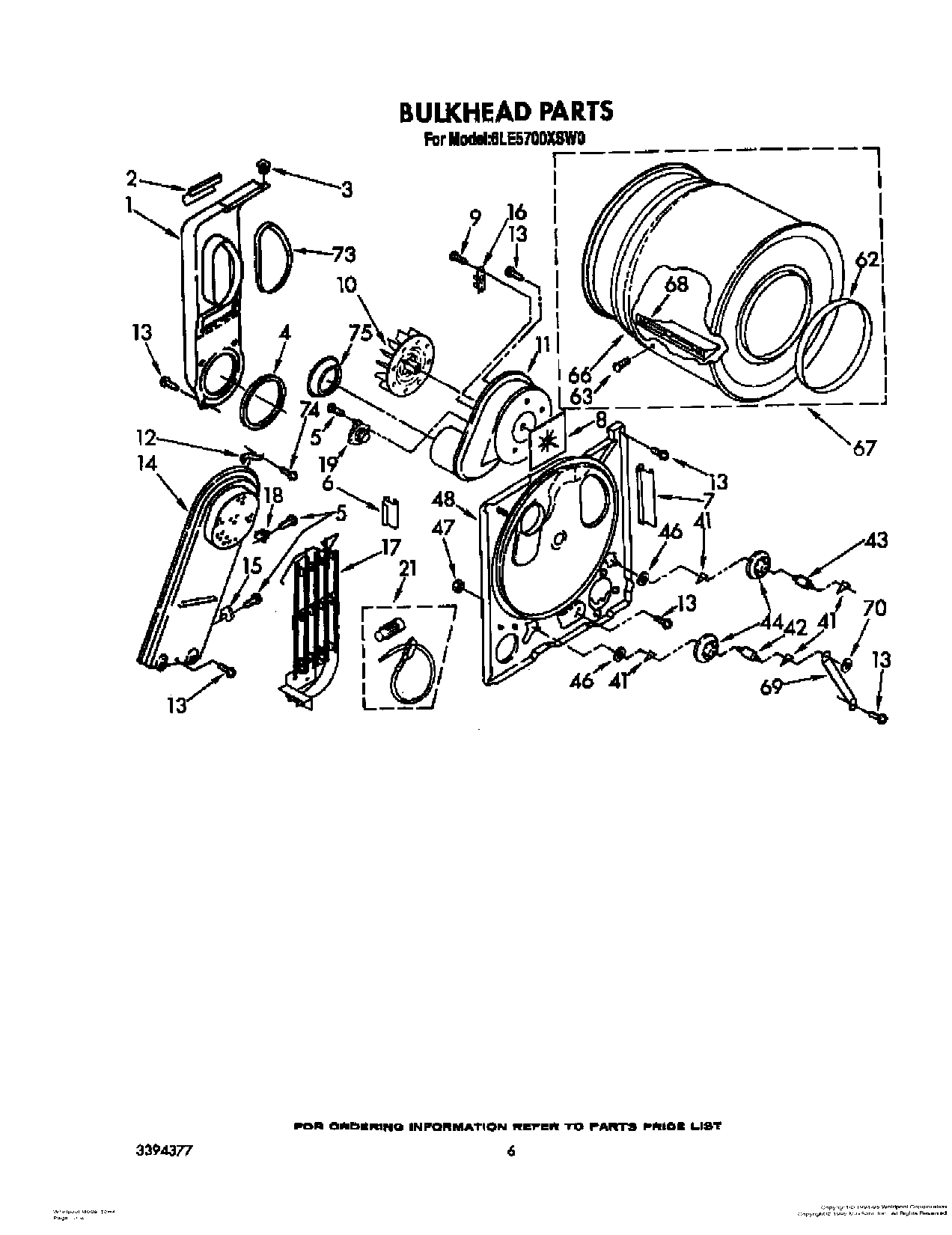

6LE5700XSW0 03 – BULKHEAD

6LE5700XSW0 03 – BULKHEAD

Written by

in

6LE5700XSW0 03 – BULKHEAD

Products

PositionProduct
1279505 Whirlpool Chute
2686770 Whirlpool Support Bracket
398460 Whirlpool Nut
4W11415783 Whirlpool Seal
5WP90767 Whirlpool Screw
7686889 Whirlpool Pad
8Seal, Blower
9WP965173 Whirlpool Dishwasher Screw
10WP694089 Whirlpool Dryer Blower Wheel
11Housing, Blower
12279771 Whirlpool Clip
13SCREW
14Box, Heater
15(Alt.)
16WP3392519 Whirlpool Dryer Thermal Fuse
17Element, Heater
18279769 Whirlpool Dryer Thermal Cut-Off Fuse Kit
19WP3387137 Whirlpool Thermostat
21279457 Whirlpool Dryer Heating Element Wide Spade Connection
41WPW10512946 Whirlpool Dryer Tri-Ring Drum Roller
42SHAFT SUPPORT ROLLER DRYER
43SHAFT SUPPORT ROLLER DRYER
44349241T Whirlpool Dryer Drum Support Roller Kit
46WP348197 Whirlpool Washer Assembly
47WP358160 Whirlpool Nut
48Bulkhead
62WP3394508 Whirlpool Bearing Ring
63Screw, 11-16 x 7/8
66239087 Whirlpool Dryer Rear Drum Seal Green Stitches
673396775 Whirlpool Drum Assembly
68WP342847 Whirlpool Drum Baffle
69Bracket, Support
70WP90296 Whirlpool Clip
73SEAL
75W11233063 Whirlpool Shield Assembly
