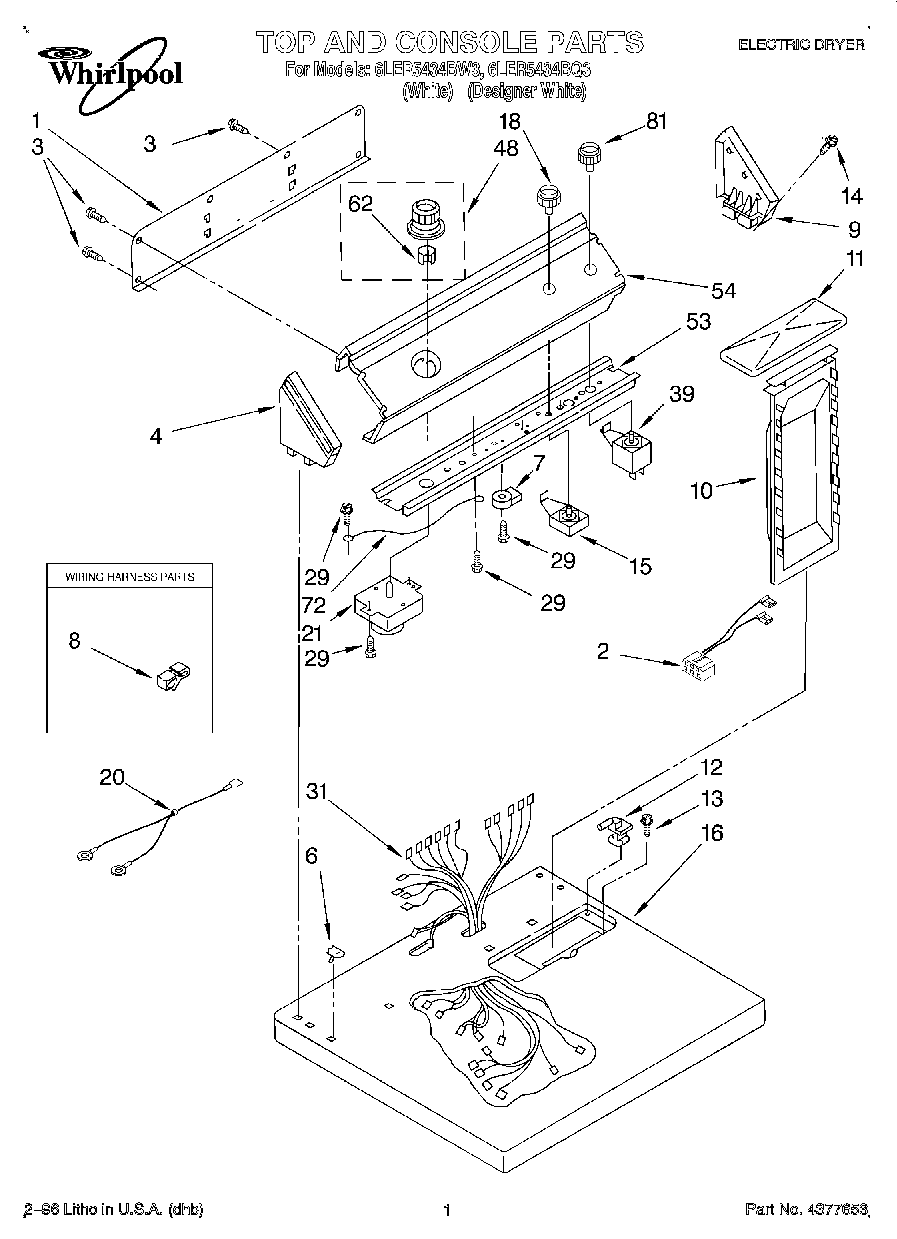

6LER5434BQ3 01 – SECTION

6LER5434BQ3 01 – SECTION

Written by

in

6LER5434BQ3 01 – SECTION

Products

PositionProduct
WPL LIT4377554
WPL LIT3394023
WPL LIT3401070
Gu
Label, Operating Instructions
Dryer
Leveler (Thinner)
WP72107 Whirlpool Touchup
799344 Whirlpool Refrigerator Paint
350930 Whirlpool White Spray Paint
72017 Whirlpool Appliance Touch-Up Paint White
350956 Whirlpool Spray Assembly
Almond (Uncut)
350938 Whirlpool Spray Gun
1Panel, Rear Console
28283286 Whirlpool Wire Harness
3WP693995 Whirlpool Screw
4Cap, End (L.H.)
4Cap, End (L.H.)
6WP357213 Whirlpool Hinge Stopper
7279872 Whirlpool Resistor
8Clip, Retainer
9Cap, End (R.H.)
9Cap, End (R.H.)
10339392V Whirlpool Dryer Lint Filter Screen
11Cover, Lint Screen (White)
12WPW10044480 Whirlpool Hinge Assembly
12WPW10044470 Whirlpool Hinge Assembly
13W11693756 Whirlpool Screw Assembly
14WP388326 Whirlpool Screw
153399638 Whirlpool Switch
16Top (White)
18KNOB
18WP3957796 Whirlpool Knob
20Harness, Ground
21WP3396215 Whirlpool Timer
29WPW10139210 Whirlpool Screw
31Harness, Wiring (Includes 3397659 Terminal Block)
39WP3395382 Whirlpool Push To Start Switch
48WP3957752 Whirlpool Knob
53Bracket, Control
54Panel, Control (FOR MODEL 6LER5434BW2)
54Panel, Control (FOR MODEL 6LER5434BQ2)
62WP688805 Whirlpool Spring Clip
72Wire, Ground
81WP3957800 Whirlpool Knob
81Knob, Push To Start
