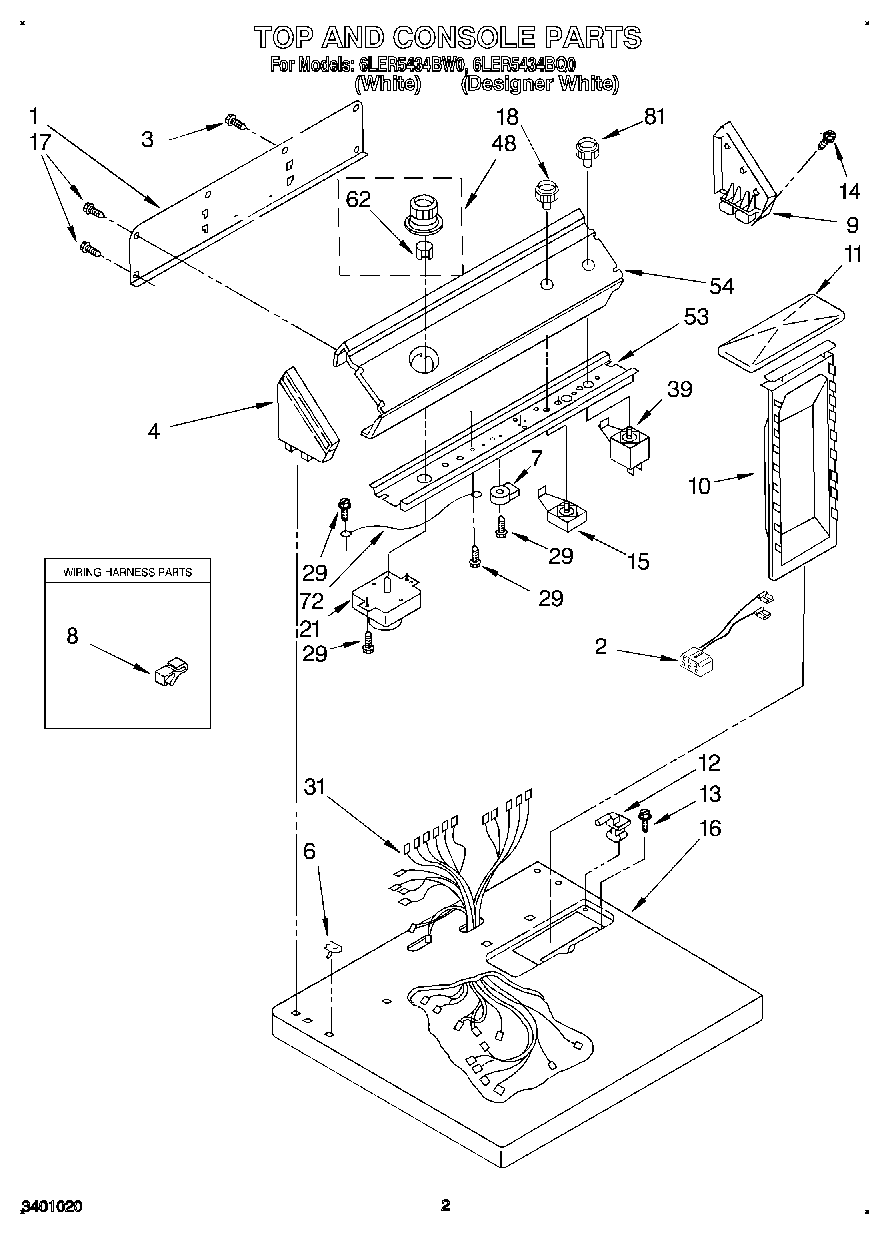

6LER5434BW0 02 – TOP AND CONSOLE, LIT/OPTIONALadmin2025-04-26T12:35:21+00:006LER5434BW0 02 – TOP AND CONSOLE, LIT/OPTIONAL
Products
| Position | Product |
|---|
| 350930 Whirlpool White Spray Paint |
| Dryer |
| List, Servi |
| Gu |
| WPL LIT3401070 |
| Label, Operating Instructions |
| Leveler (Thinner) |
| WP72107 Whirlpool Touchup |
| 799344 Whirlpool Refrigerator Paint |
| WPL LIT3394023 |
| 350938 Whirlpool Spray Gun |
| 350956 Whirlpool Spray Assembly |
| 72017 Whirlpool Appliance Touch-Up Paint White |
| Almond (Uncut) |
| 1 | Panel, Rear Console |
| 2 | 8283286 Whirlpool Wire Harness |
| 3 | WP693995 Whirlpool Screw |
| 4 | Cap, End (L.H.) (White) |
| 6 | WP357213 Whirlpool Hinge Stopper |
| 7 | 279872 Whirlpool Resistor |
| 8 | Clip, Retainer |
| 9 | Cap, End (R.H.) (White) |
| 10 | 339392V Whirlpool Dryer Lint Filter Screen |
| 11 | Cover, Lint Screen (White) |
| 12 | WPW10044470 Whirlpool Hinge Assembly |
| 12 | WPW10044480 Whirlpool Hinge Assembly |
| 13 | W11693756 Whirlpool Screw Assembly |
| 14 | WP388326 Whirlpool Screw |
| 15 | Switch, Temperature |
| 16 | Top (White) |
| 17 | WP489069 Whirlpool Compactor Screw |
| 18 | WP3957796 Whirlpool Knob |
| 18 | KNOB |
| 21 | WP3396215 Whirlpool Timer |
| 29 | WPW10139210 Whirlpool Screw |
| 31 | Harness, Wiring (Includes 3397659 Terminal Block) |
| 39 | WP3395382 Whirlpool Push To Start Switch |
| 48 | WP3957752 Whirlpool Knob |
| 53 | Bracket, Control |
| 54 | Panel, Control (Designer White) |
| 54 | Panel, Control (White) |
| 62 | WP688805 Whirlpool Spring Clip |
| 72 | Wire, Ground |
| 81 | WP3957800 Whirlpool Knob |
| 81 | Knob, Push To Start |
