6LER5434BW3 01 – SECTION
Written by
in

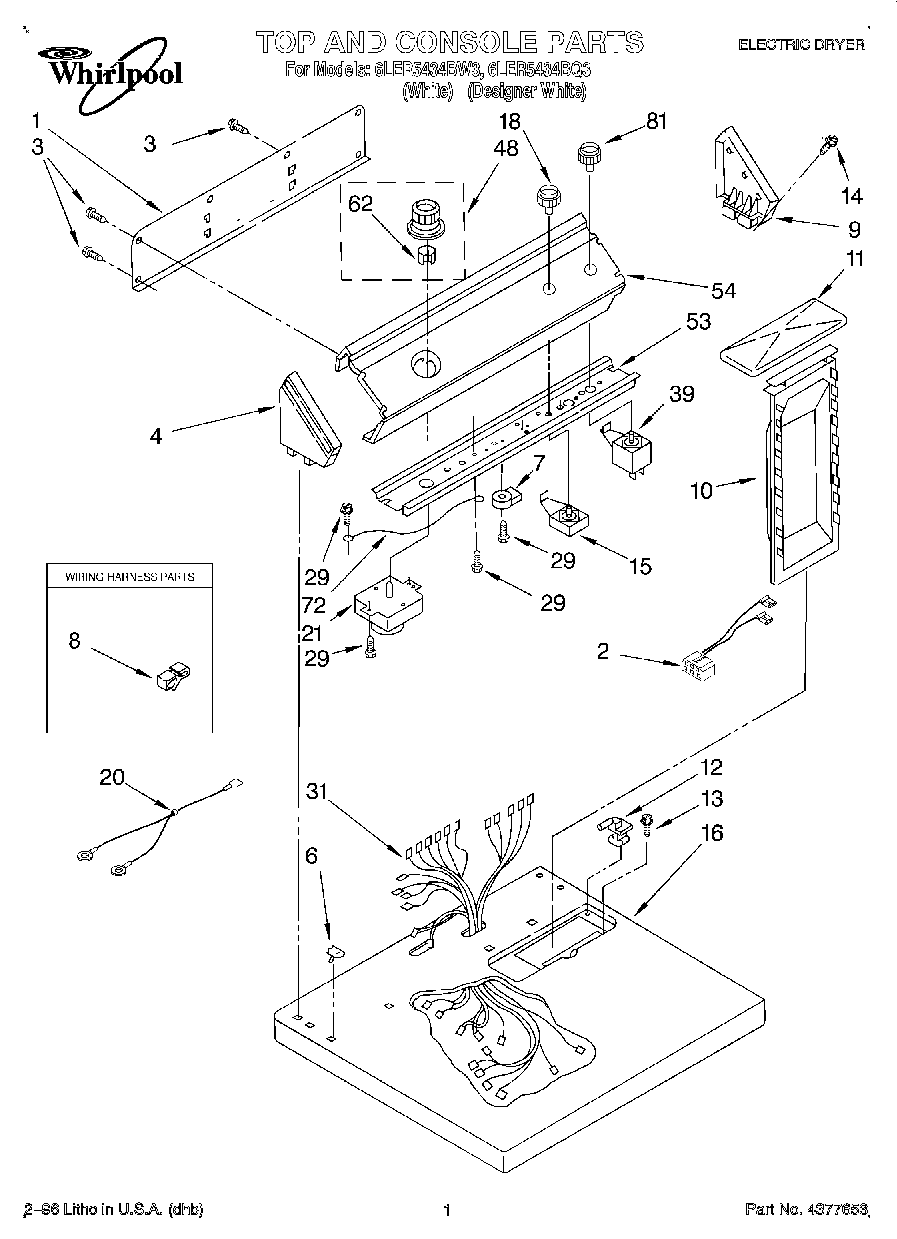

6LER5434BW3 01 – SECTION
Products
Position
Product
WPL LIT4377554
WPL LIT3394023
WPL LIT3401070
Gu
Label, Operating Instructions
Dryer
Leveler (Thinner)
WP72107 Whirlpool Touchup
799344 Whirlpool Refrigerator Paint
350930 Whirlpool White Spray Paint
72017 Whirlpool Appliance Touch-Up Paint White
350956 Whirlpool Spray Assembly
Almond (Uncut)
350938 Whirlpool Spray Gun
1
Panel, Rear Console
2
8283286 Whirlpool Wire Harness
3
WP693995 Whirlpool Screw
4
Cap, End (L.H.)
4
Cap, End (L.H.)
6
WP357213 Whirlpool Hinge Stopper
7
279872 Whirlpool Resistor
8
Clip, Retainer
9
Cap, End (R.H.)
9
Cap, End (R.H.)
10
339392V Whirlpool Dryer Lint Filter Screen
11
Cover, Lint Screen (White)
12
WPW10044480 Whirlpool Hinge Assembly
12
WPW10044470 Whirlpool Hinge Assembly
13
W11693756 Whirlpool Screw Assembly
14
WP388326 Whirlpool Screw
15
3399638 Whirlpool Switch
16
Top (White)
18
KNOB
18
WP3957796 Whirlpool Knob
20
Harness, Ground
21
WP3396215 Whirlpool Timer
29
WPW10139210 Whirlpool Screw
31
Harness, Wiring (Includes 3397659 Terminal Block)
39
WP3395382 Whirlpool Push To Start Switch
48
WP3957752 Whirlpool Knob
53
Bracket, Control
54
Panel, Control (FOR MODEL 6LER5434BW2)
54
Panel, Control (FOR MODEL 6LER5434BQ2)
62
WP688805 Whirlpool Spring Clip
72
Wire, Ground
81
WP3957800 Whirlpool Knob
81
Knob, Push To Start
←
