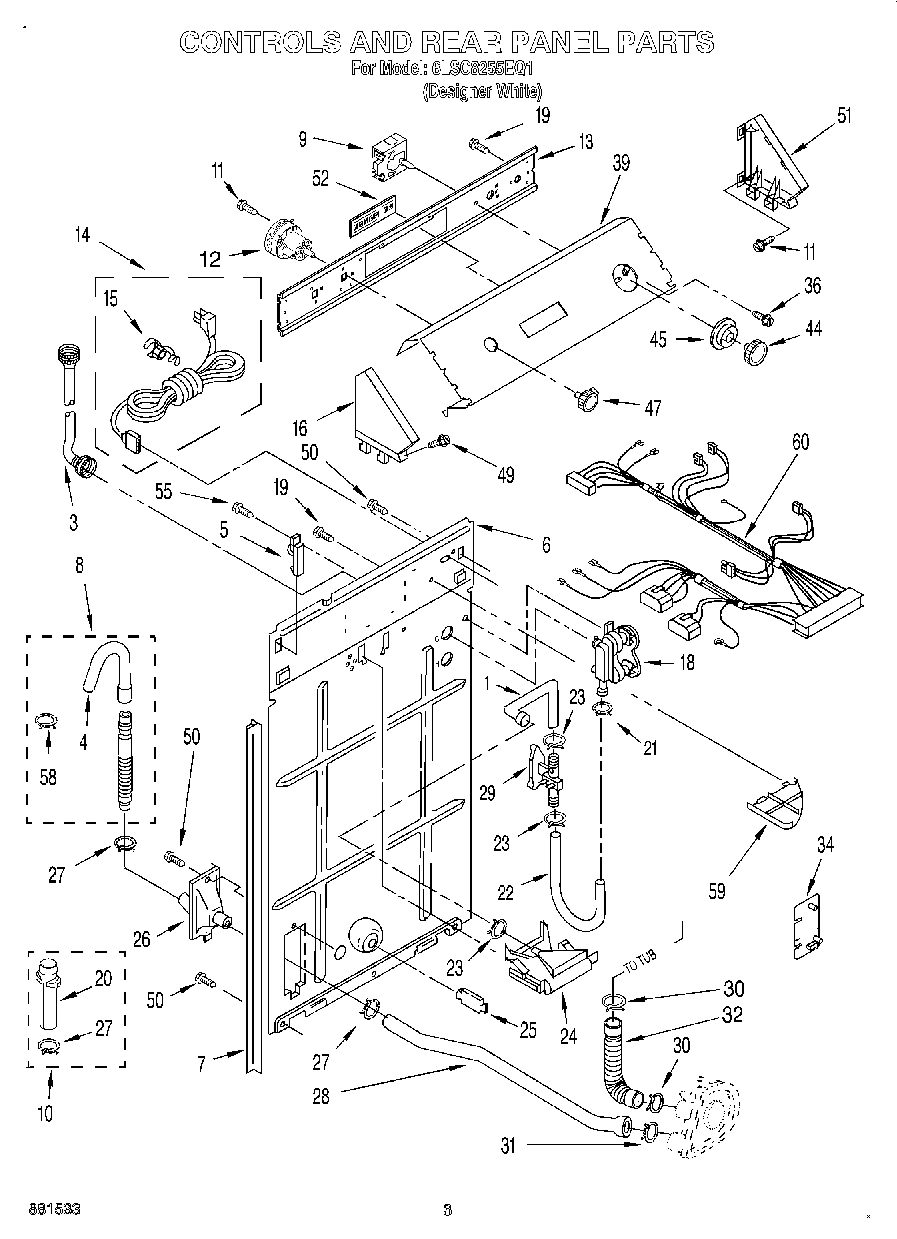

6LSC8255EQ1 02 – CONTROLS AND REAR PANEL

6LSC8255EQ1 02 – CONTROLS AND REAR PANEL

Written by

in

6LSC8255EQ1 02 – CONTROLS AND REAR PANEL

Products

PositionProduct
1WP3349365 Whirlpool Hose
3WPW10489643 Whirlpool Fill Hose
4WP3357027 Whirlpool Nozzle Assembly
5Hinge, Console (2)
6WP3357978 Whirlpool Rear Panel
7WP62747 Whirlpool Pad
8285702 Whirlpool Extensions
8285664 Whirlpool Drain Hose
8285666 Whirlpool Drain Hose 10'
9Timer, Control (60 Hz.) (Motor Not A Service Part)
10Kit, Adapter (Includes Illus. Nos. 17 & 29)
11WP90767 Whirlpool Screw
12W10339326 Whirlpool Washer Water Level Switch
13Bracket, Control
14Cord, Power
15Strain Relief, Power Cord
16Cap, End (R.H.)
18285874 Whirlpool Valve Assembly
19WP3351614 Whirlpool Screw
203363920A Whirlpool Adapter Assembly
22WP3357319 Whirlpool Hose
24WP3360977 Whirlpool Washer Tub Fill Nozzle
25WP8519200 Whirlpool Support Assembly
26WPW10358149 Whirlpool Hose
27WP356138 Whirlpool Hose Clamp
28Hose, Pump To Drain
29Sensor-ETC-Inline
30WP616099 Whirlpool Clamp
31WP596669 Whirlpool Hose Clamp
32285871 Whirlpool Hose and Clamp
34Control, Atc
34WP3388228 Whirlpool Screw
36WP356418 Whirlpool Screw
39Panel, Console
44WP3364293 Whirlpool Timer Knob
45WP3957841 Whirlpool Dial
47WP3957796 Whirlpool Knob
49WP388326 Whirlpool Screw
50WP3390631 Whirlpool Screw
51Cap, End (L.H.)
52Switch, Clean Touch (7 Pad)
55WP308685 Whirlpool Microwave Screw
58WP3357331 Whirlpool Clamp
59WPL 3348424
60Harness, Wiring (For Detail See Page 6.) Also See Clips.
