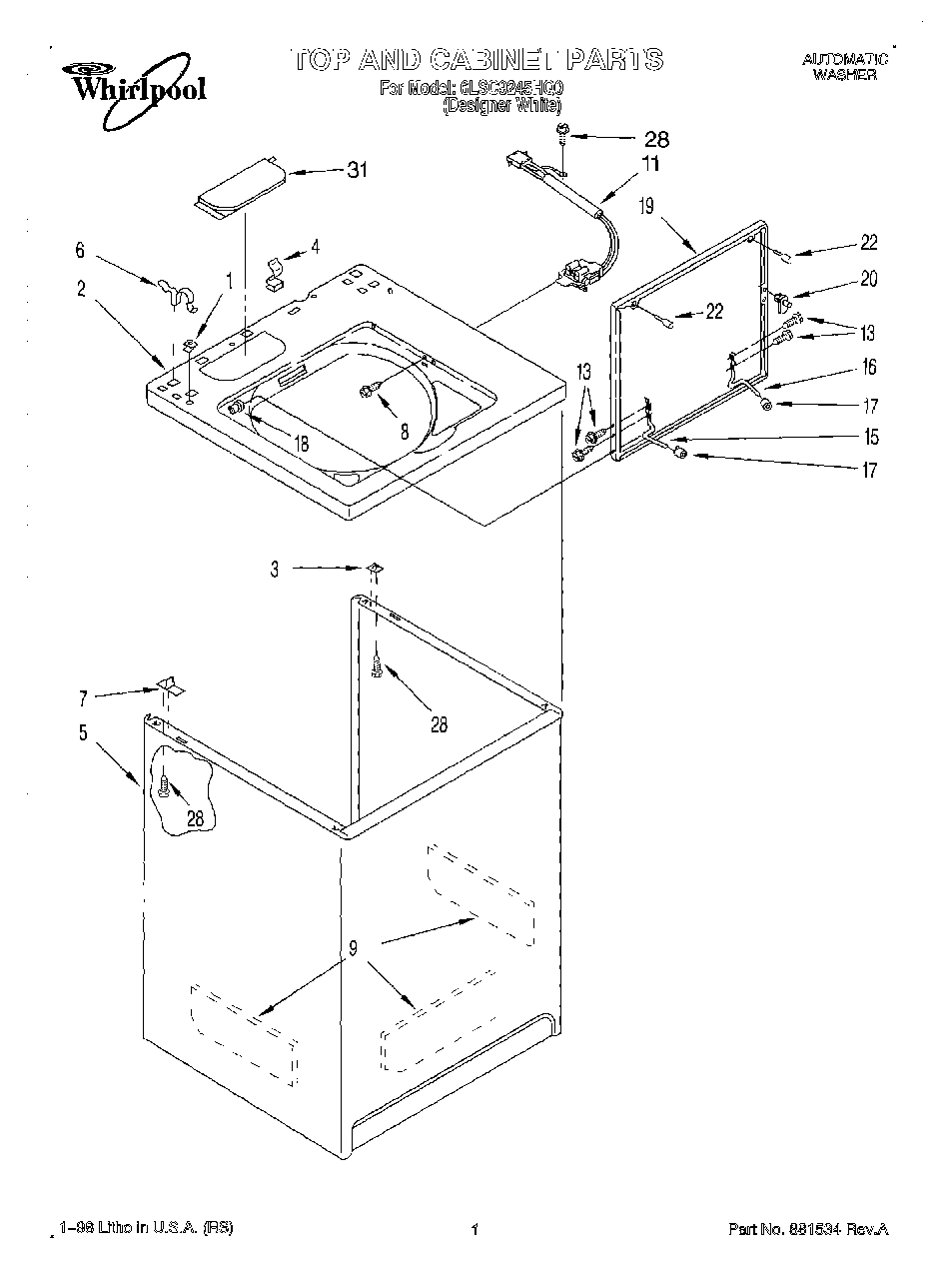

6LSC9245HQ0 01 – TOP AND CABINET

6LSC9245HQ0 01 – TOP AND CABINET

Written by

in

6LSC9245HQ0 01 – TOP AND CABINET

Products

PositionProduct
1WP357213 Whirlpool Hinge Stopper
2Top (For White Model)
3WP62750 Whirlpool Spacer
4WP90016 Whirlpool Clip
563424 Whirlpool Cabinet Assembly
6WP62780 Whirlpool Cabinet Clip
7Spacer Cab/Top
8WP3356311 Whirlpool Screw
9Cabinet-Sound Damper
11Switch, Lid
13SCREW
15WP54584 Whirlpool Hinge
16WP54583 Whirlpool Hinge
17Bumper, Lid Hinge
18WP21258 Whirlpool Washer Lid Hinge Bearing
19Lid (White)
20WP358684 Whirlpool Strike Assembly
22WP9724509 Whirlpool Bumper
28SCREW
31Cover, Hose (Disconnect)
