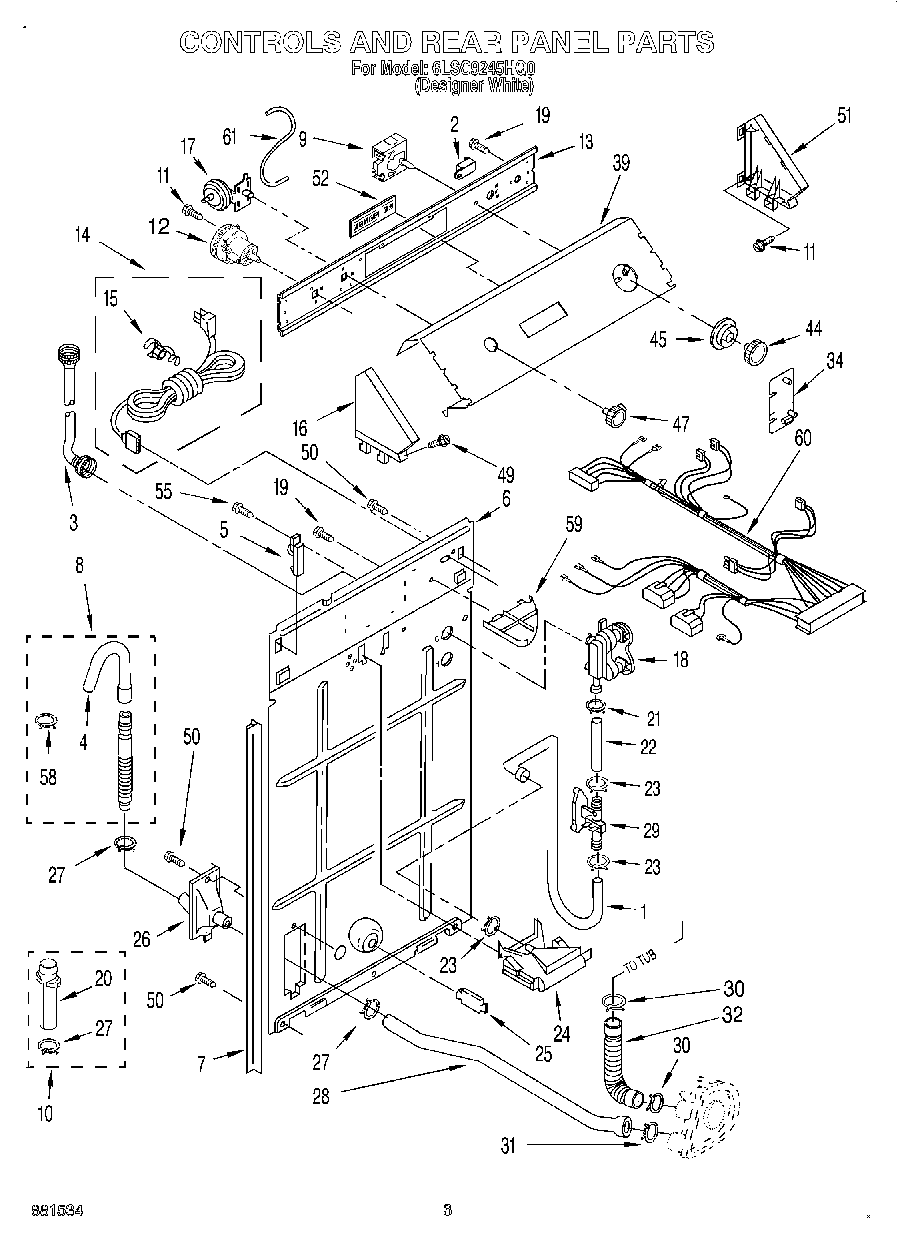

6LSC9245HQ0 02 – CONTROLS AND REAR PANEL

Products

Position	Product
1	WP3349365 Whirlpool Hose
2	3952439 Whirlpool Buzzer
3	WPW10489643 Whirlpool Fill Hose
4	WP3357027 Whirlpool Nozzle Assembly
5	Hinge, Console (2)
6	Panel, Rear
7	WP62747 Whirlpool Pad
8	285664 Whirlpool Drain Hose
8	285666 Whirlpool Drain Hose 10'
8	285702 Whirlpool Extensions
9	W10915367 Whirlpool Screw Assembly
9	Timer, Control (50 Hz.) (Motor Not A Service Part)
10	Kit, Adapter (Includes Illus. Nos. 17 & 29)
11	WP90767 Whirlpool Screw
12	W10339326 Whirlpool Washer Water Level Switch
13	Bracket, Control
14	Cord, Power
15	Strain Relief, Power Cord
16	Cap, End (R.H.)
17	Switch, Dispensor Level
18	Valve, Water Mixing
19	WP3351614 Whirlpool Screw
20	3363920A Whirlpool Adapter Assembly
22	Hose, Sensor (Lower)
24	WP3360977 Whirlpool Washer Tub Fill Nozzle
25	WP8519200 Whirlpool Support Assembly
26	WPW10358149 Whirlpool Hose
27	WP356138 Whirlpool Hose Clamp
28	Hose, Pump To Drain
29	Sensor-ETC-Inline
30	WP616099 Whirlpool Clamp
31	WP596669 Whirlpool Hose Clamp
32	285871 Whirlpool Hose and Clamp
34	Control, Atc
39	Panel, Console
44	W10807860 Whirlpool White Control Knob
45	WP3957841 Whirlpool Dial
47	WP3957796 Whirlpool Knob
49	WP388326 Whirlpool Screw
50	WP3390631 Whirlpool Screw
51	Cap, End (L.H.)
52	Switch, Clean Touch (8 Pad)
55	WP308685 Whirlpool Microwave Screw
58	WP3357331 Whirlpool Clamp
59	WPL 3348424
60	Harness, Wiring (For Detail See Page 6.) Also See Clips.
61	Hose, Pressure
