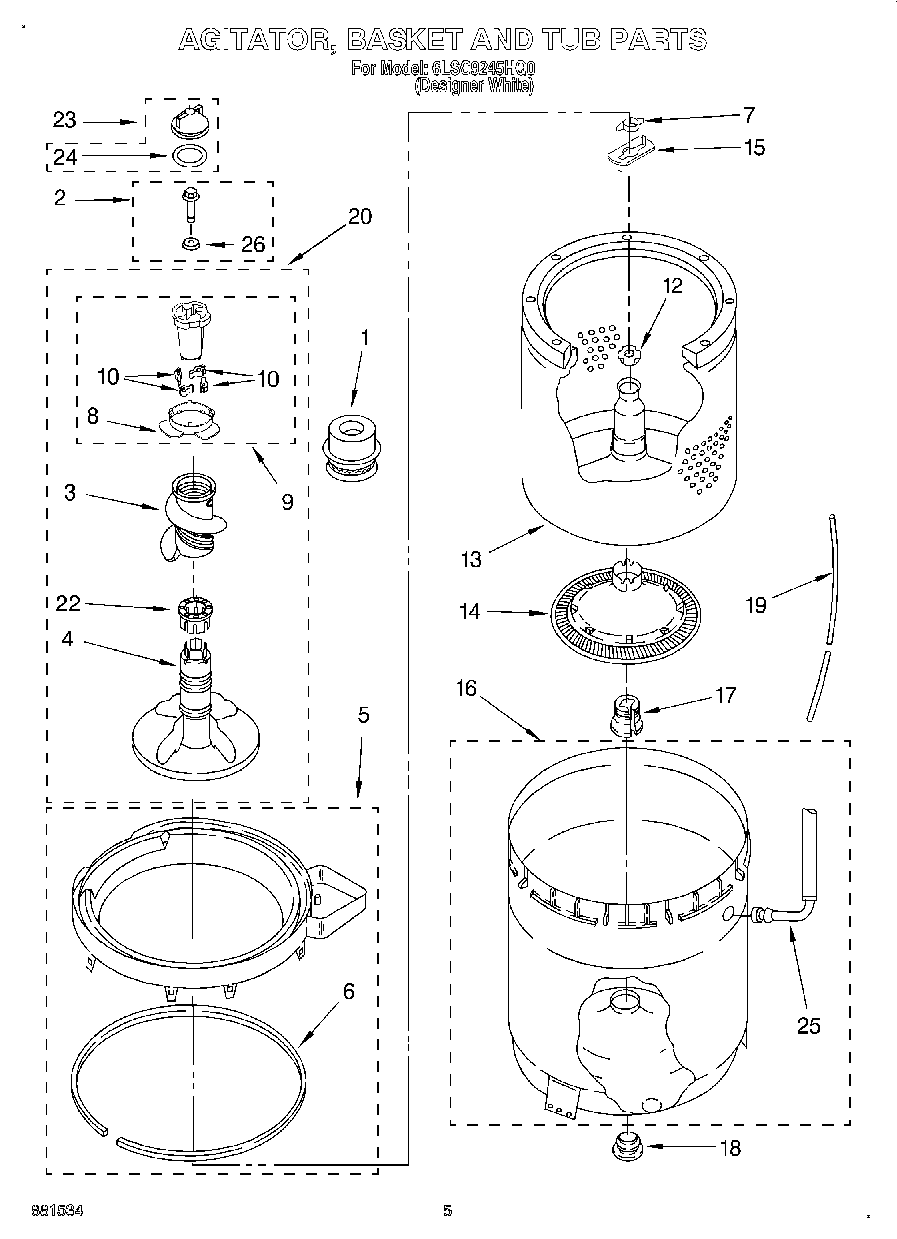

6LSC9245HQ0 03 – AGITATOR, BASKET AND TUB

6LSC9245HQ0 03 – AGITATOR, BASKET AND TUB

Written by

in

6LSC9245HQ0 03 – AGITATOR, BASKET AND TUB

Products

PositionProduct
1WP63594 Whirlpool Dispenser
2WP358237 Whirlpool Agitator Bolt
3Clothes Mover
4WP3947517 Whirlpool Agitator
5Tub Ring & Gasket
6Gasket, Tub Ring
7WP3354845 Whirlpool Clip
8WP3363661 Whirlpool Bearing Cam
9285748 Whirlpool Agitator Cam Kit
1080040 Whirlpool Washer Agitator Dog Kit
12WP21366 Whirlpool Spanner Nut
13Basket & Balance Ring
14285868 Whirlpool Washer Filter Plug Kit
15WP8543666 Whirlpool Washer
1663849 Whirlpool Outer Tub Primary Assembly
17WP389140 Whirlpool Drive Block or Bell
18W10814296 Whirlpool Washer Center Post Seal Gasket
19WP353244 Whirlpool Hose
20WP8538246 Whirlpool Agitator
22285587 Whirlpool Thrust Washer
23WP3362061 Whirlpool Cap
24WP358912 Whirlpool Gasket
25Hose, Bleach
26WP3949550 Whirlpool Gasket Assembly
