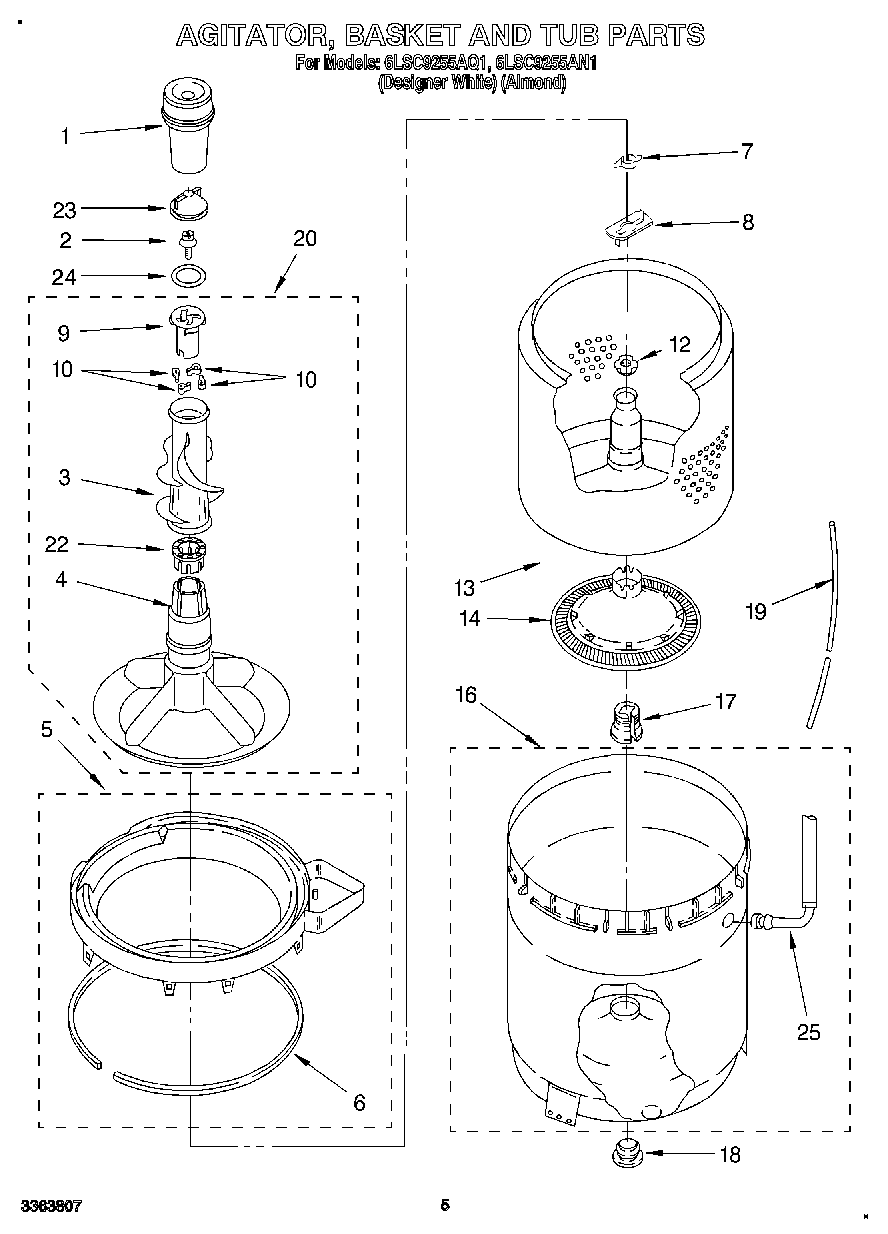

6LSC9255AW1 04 – AGITATOR, BASKET AND TUB

6LSC9255AW1 04 – AGITATOR, BASKET AND TUB

Written by

in

6LSC9255AW1 04 – AGITATOR, BASKET AND TUB

Products

PositionProduct
163580 Whirlpool Washer Fabric Softener Dispenser
2WP358237 Whirlpool Agitator Bolt
3WP3348752 Whirlpool Agitator Mover
4AGITATOR
5W10880720 Whirlpool Tub Ring
6WP3976308 Whirlpool Tub Seal
7WP3354845 Whirlpool Clip
8WP8543666 Whirlpool Washer
9285811 Whirlpool Washer Agitator Repair Kit
1080040 Whirlpool Washer Agitator Dog Kit
12WP21366 Whirlpool Spanner Nut
13W10389328 Whirlpool Basket
14285868 Whirlpool Washer Filter Plug Kit
163361596 Whirlpool Outer Tub Primary
17WP389140 Whirlpool Drive Block or Bell
18W10814296 Whirlpool Washer Center Post Seal Gasket
19WP353244 Whirlpool Hose
20285565 Whirlpool Agitator Assembly
22285587 Whirlpool Thrust Washer
23WPW10074580 Whirlpool Agitator Inner Cap and Seal
24WPW10072840 Whirlpool Seal Assembly
25Hose, Bleach
