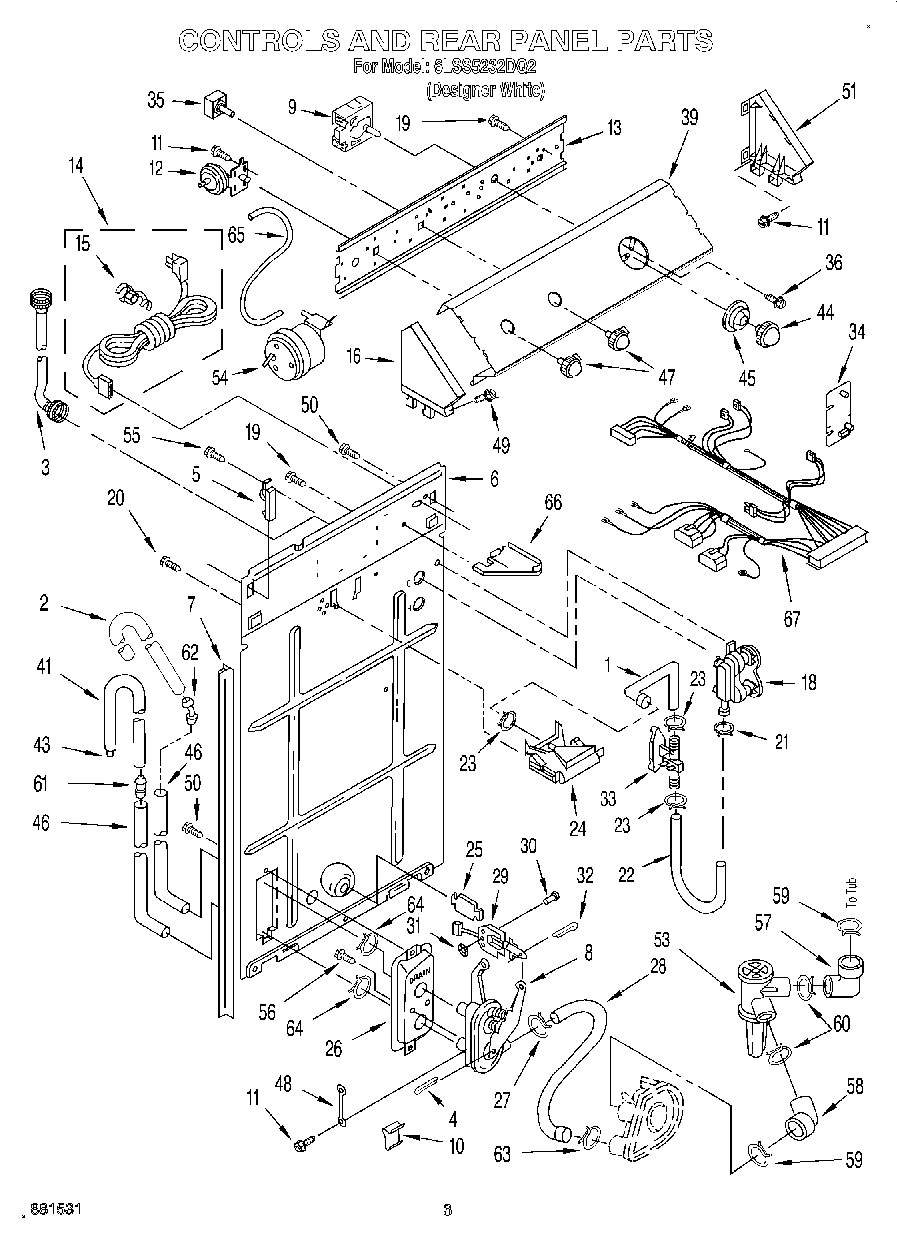

6LSS5232DQ2 02 – CONTROLS AND REAR PANEL

Products

Position	Product
1	WP3349365 Whirlpool Hose
2	WP96743 Whirlpool Hose
3	WPW10489643 Whirlpool Fill Hose
4	Pin
5	Hinge, Console (2)
6	WP3357978 Whirlpool Rear Panel
7	WP62747 Whirlpool Pad
8	Valve, 2-Way (Diaphragm 358317)
9	Timer, Control (60 Hz.) (Motor Not A Service Part)
10	Clip, Retainer
12	W10339228 Whirlpool Washer Water Level Switch
13	WP3948608 Whirlpool Bracket
14	Cord, Power
15	Strain Relief, Power Cord
16	Cap, End (L.H.)
18	285874 Whirlpool Valve Assembly
19	WP3946532 Whirlpool Shield
20	SCREW
21	WP596669 Whirlpool Hose Clamp
22	WP3357319 Whirlpool Hose
24	WP3360977 Whirlpool Washer Tub Fill Nozzle
25	WP8519200 Whirlpool Support Assembly
26	Connector, Drain Hose
27	WP285655 Whirlpool Hose Clamp
28	Hose, Pump To Drain Connector
29	Solenoid, Suds Valve
30	Rivet
31	WP90296 Whirlpool Clip
32	Pin, Cotter (1/8 x 3/4)
33	Sensor-ETC-Inline
34	WP90767 Whirlpool Screw
34	Control, Atc
35	SWTCH-TEMP
36	WP356418 Whirlpool Screw
39	Panel, Console
41	Hose, Gooseneck
43	Strainer, Hose
44	WP3364293 Whirlpool Timer Knob
45	Dial, Timer
46	96746 Whirlpool Drain Hose Assembly
47	WP3957796 Whirlpool Knob
48	Strap, Ground
49	WP388326 Whirlpool Screw
50	WP3390631 Whirlpool Screw
51	Cap, End (R.H.)
53	Protector, Valve
54	Switch, Suds Level
55	WP308685 Whirlpool Microwave Screw
56	Screw (2)
57	Connector, To Tub
58	Connector, To Pump
59	WP371502 Whirlpool Clamp
60	WP616099 Whirlpool Clamp
61	WP16272 Whirlpool Hose Coupling
62	Connector, Hose
64	WP356138 Whirlpool Hose Clamp
65	WP353244 Whirlpool Hose
66	WPL 3348424
67	Harness, Wiring (For Detai
