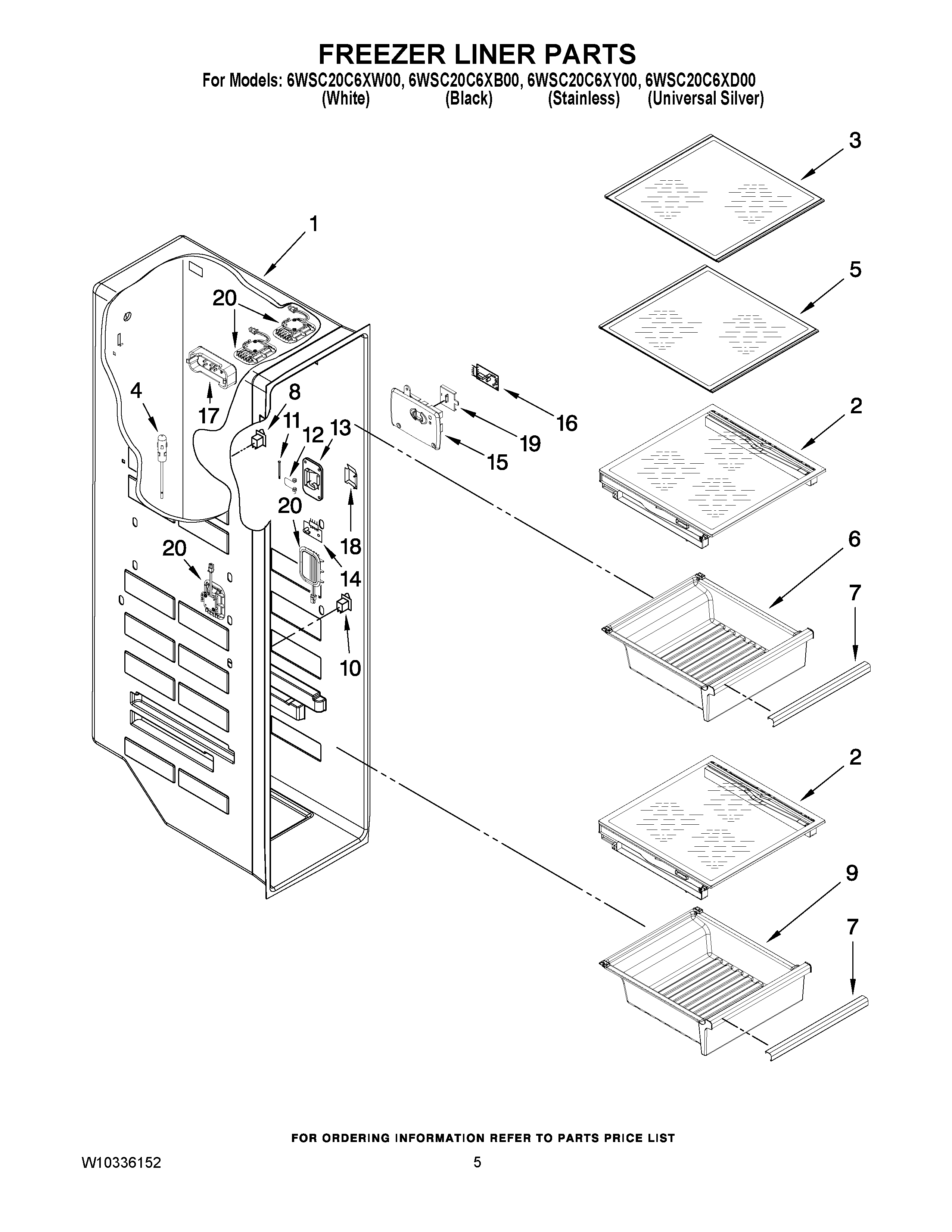

6WSC20C6XB00 04 – FREEZER LINER PARTS

Products

PositionProduct
1CABINET (NOT A SERVICEABLE PART)
2COVER ASSY
3WPW10269160 Whirlpool Glass Shelf
4THERMISTOR
5WPW10269161 Whirlpool Refrigerator Glass Shelf
6PAN, FREEZER UPPER (ALSO ORDER 9)
7TRIM, HANDLE
8W11123943 Whirlpool Refrigerator Switch
9PAN, FREEZER LOWER (ALSO ORDER 11)
10Rocker Arm Switch
11WP2198634 Whirlpool Door Pin
12WP2198635 Whirlpool Refrigerator Spring
13W10258502 Whirlpool Refrigerator Cover
14W10870822 Whirlpool Refrigerator Electronic Control Board
15COVER, RECEIVER
16W10898445 Whirlpool Refrigerator Electronic Control Board + Core
17W10425253 Whirlpool Refrigerator Cover
18FLIPPER
19W10258540 Whirlpool Refrigerator Slide
20MODULE
