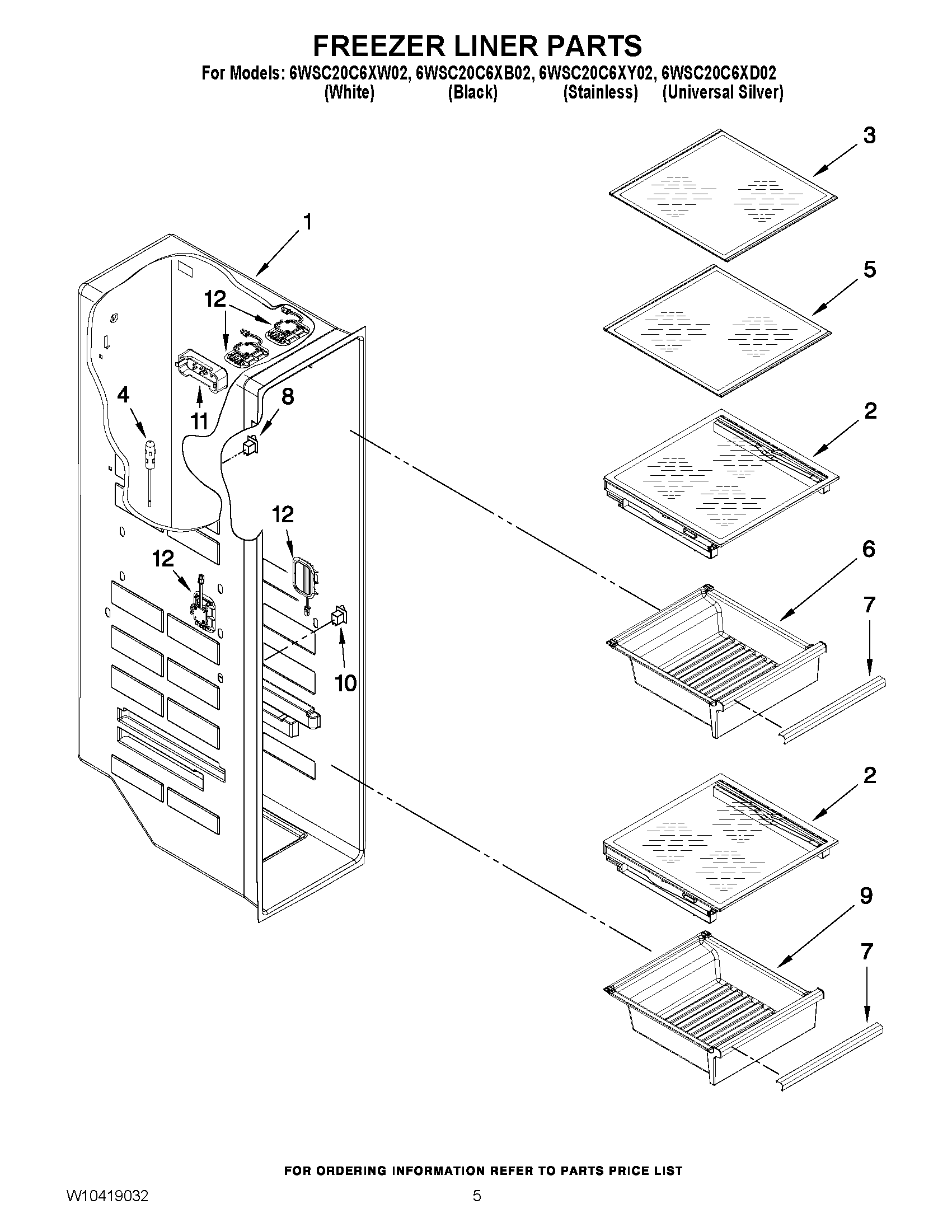

6WSC20C6XB02 04 – FREEZER LINER PARTS

Products

Position	Product
1	CABINET (NOT A SERVICEABLE PART)
2	COVER ASSY
3	WPW10269160 Whirlpool Glass Shelf
4	THERMISTOR
5	WPW10269161 Whirlpool Refrigerator Glass Shelf
6	PAN, FREEZER UPPER (ALSO ORDER 9)
7	TRIM, HANDLE
8	W11123943 Whirlpool Refrigerator Switch
9	PAN, FREEZER LOWER (ALSO ORDER 11)
10	W11457217 Whirlpool Refrigerator Rocker Switch Combination
11	W10425253 Whirlpool Refrigerator Cover
12	MODULE
