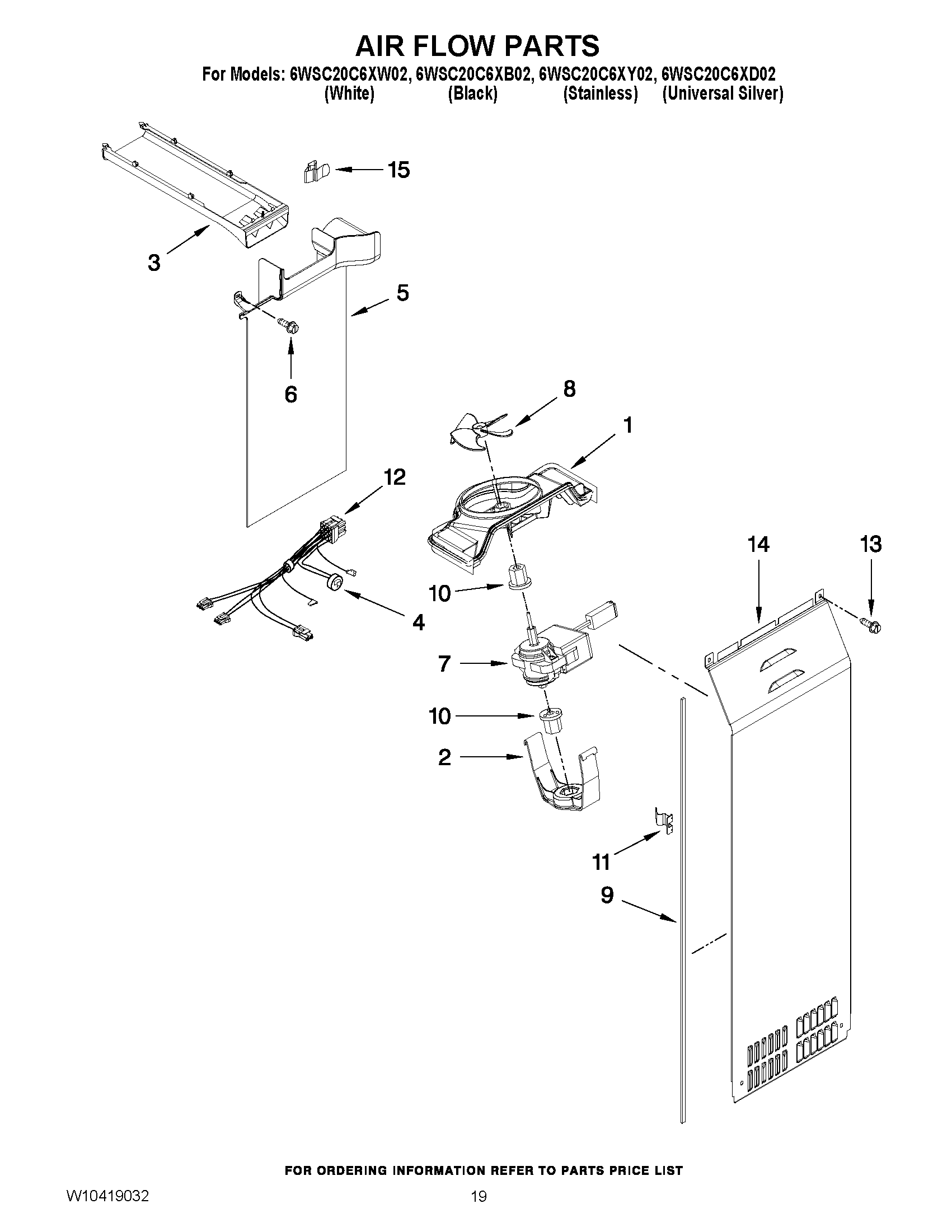

6WSC20C6XB02 11 – AIR FLOW PARTS

Products

Position	Product
1	W10251462 Whirlpool Refrigerator Scroll Fan
2	W11671527 Whirlpool Retainer Assembly
3	AIR DUCT, UPPER
4	W11590570 Whirlpool Bimetal Defrost
5	W10260378 Whirlpool Refrigerator Air Duct
6	WP489478 Whirlpool Refrigerator Screw
7	WPW10312014 Whirlpool Evaporator Motor
8	WP2169142 Whirlpool Fan Blade
9	W10240370 Whirlpool Refrigerator Gasket
10	WP2176759 Whirlpool Refrigerator Grommet
11	W11232019 Whirlpool Refrigerator Clip
12	HARNESS, FAN EVAPORATOR (INCLUDES No.4)
13	WP693995 Whirlpool Screw
14	W10239739 Whirlpool Refrigerator Evaporator Cover
15	W10331728 Whirlpool Refrigerator Clip
