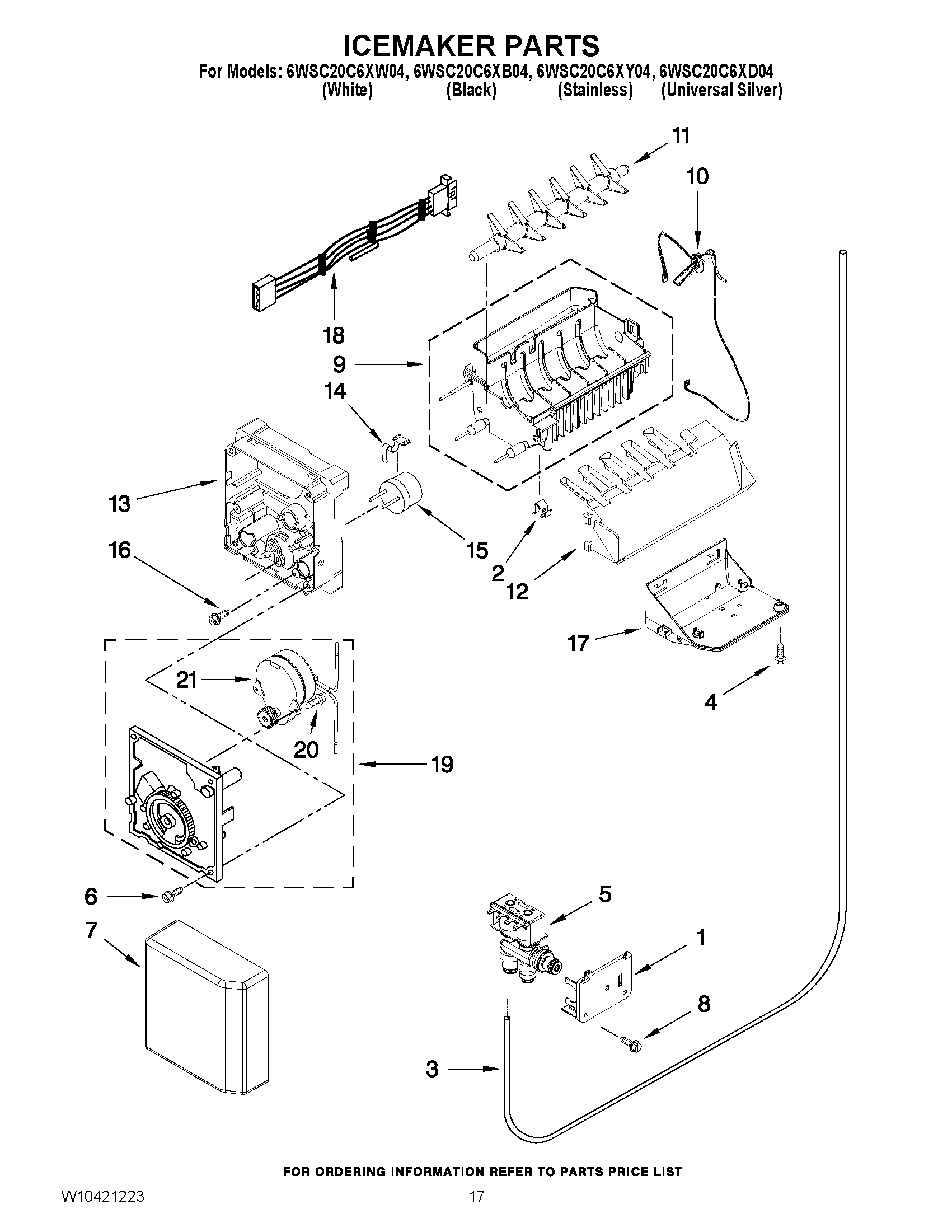

6WSC20C6XB04 10 – ICEMAKER PARTSadmin2025-04-26T12:34:39+00:006WSC20C6XB04 10 – ICEMAKER PARTS ProductsPositionProduct1W10847867 Whirlpool Refrigerator Bracket2WP628379 Whirlpool Refrigerator Clip3WPW10238092 Whirlpool Refrigerator Water Tube4WP489478 Whirlpool Refrigerator Screw5WPW10258564 Whirlpool Inlet Valve6W10001240 Whirlpool Refrigerator Screw7COVER8WPW10141625 Whirlpool Refrigerator Screw Assembly9W10251082 Whirlpool Ice Mold10FILL TUBE ASSY.11W10318644 Whirlpool Refrigerator Ejector Arm12W10747731 Whirlpool Refrigerator Arm Stripper13WP2195914 Whirlpool Refrigerator Ice Maker Housing14WP2315522 Whirlpool Refrigerator Clip15WP2321258 Whirlpool Refrigerator Bimetallic Defrost Assembly16W10001280 Whirlpool Refrigerator Screw17W10251080 Whirlpool Refrigerator Bracket18W10242384 Whirlpool Refrigerator Wire Harness19W10190933 Whirlpool Refrigerator Motor Assembly20Screw21CABINET (NOT A SERVICEABLE PART)100WPW10122580 Whirlpool Ice Maker
