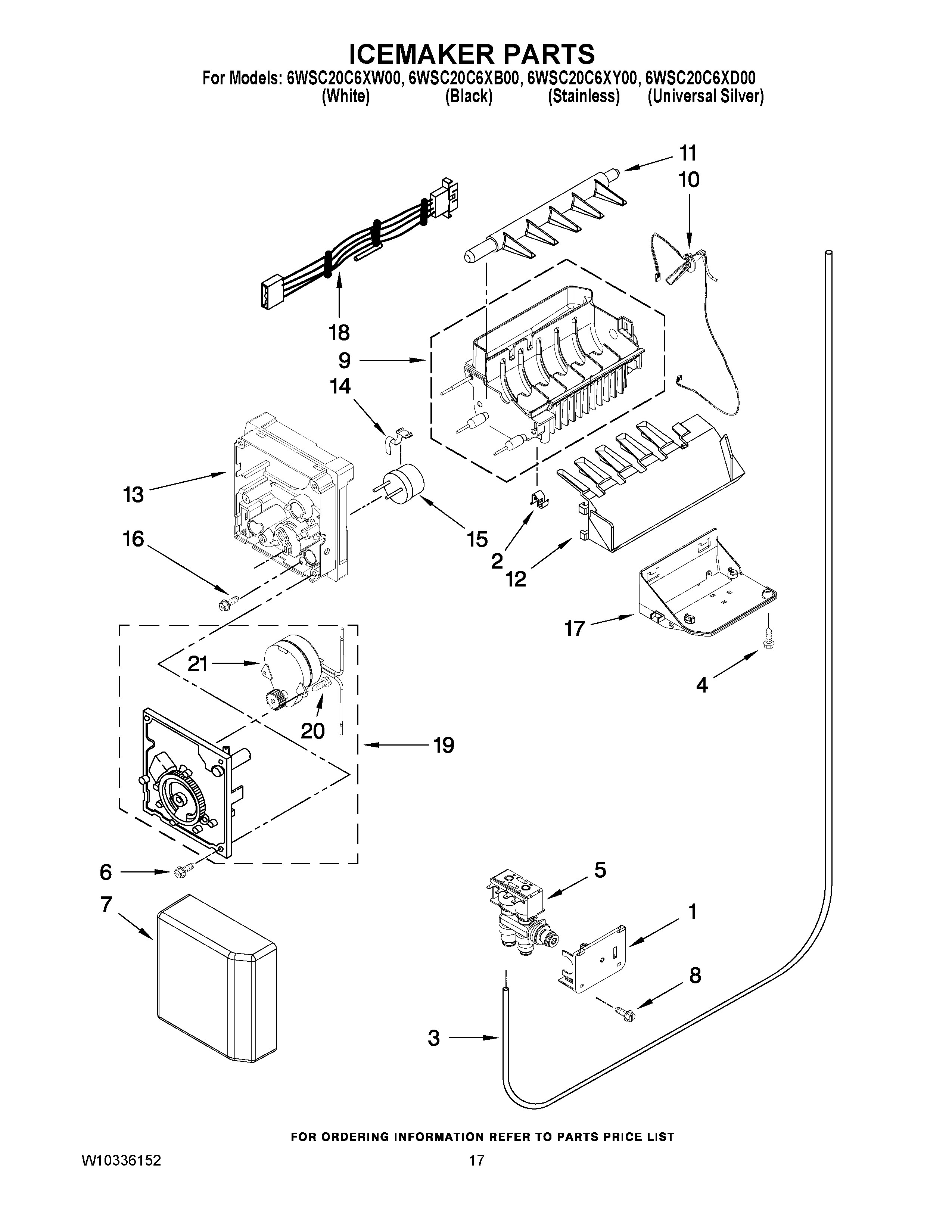

6WSC20C6XD00 10 – ICEMAKER PARTS

Products

Position	Product
1	W10847867 Whirlpool Refrigerator Bracket
2	WP628379 Whirlpool Refrigerator Clip
3	WPW10238092 Whirlpool Refrigerator Water Tube
4	WP489478 Whirlpool Refrigerator Screw
5	WPW10258564 Whirlpool Inlet Valve
6	WP681249 Whirlpool Screw Assembly
7	COVER
8	WPW10141625 Whirlpool Refrigerator Screw Assembly
9	W10251082 Whirlpool Ice Mold
10	FILL TUBE ASSY.
11	W10318644 Whirlpool Refrigerator Ejector Arm
12	W10747731 Whirlpool Refrigerator Arm Stripper
13	WP2195914 Whirlpool Refrigerator Ice Maker Housing
14	WP2315522 Whirlpool Refrigerator Clip
15	WP2321258 Whirlpool Refrigerator Bimetallic Defrost Assembly
16	W10001280 Whirlpool Refrigerator Screw
17	W10251080 Whirlpool Refrigerator Bracket
18	W10242384 Whirlpool Refrigerator Wire Harness
19	W10190933 Whirlpool Refrigerator Motor Assembly
20	Screw
21	CABINET (NOT A SERVICEABLE PART)
100	WPW10122580 Whirlpool Ice Maker
