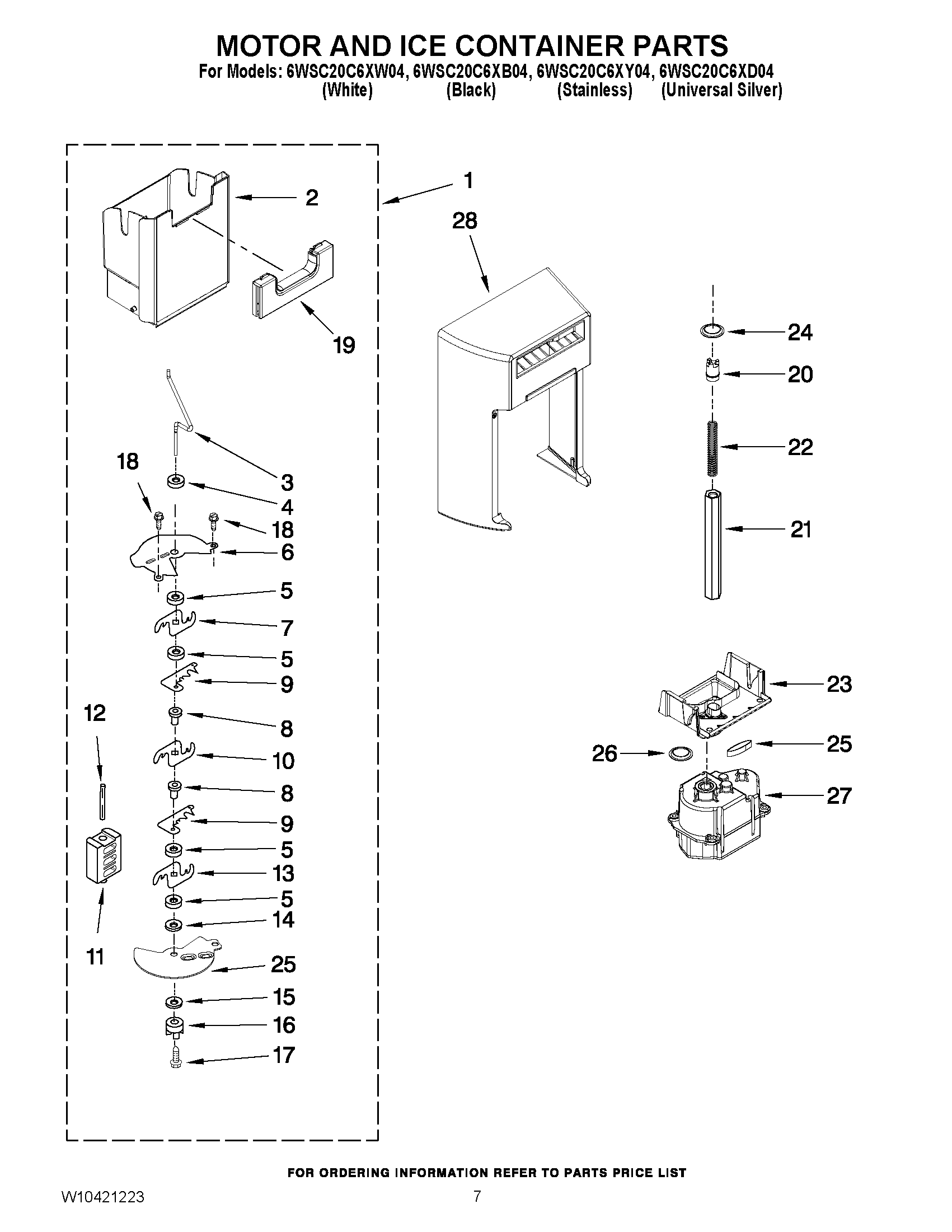

6WSC20C6XD04 05 – MOTOR AND ICE CONTAINER PARTS

6WSC20C6XD04 05 – MOTOR AND ICE CONTAINER PARTS

Written by

in

6WSC20C6XD04 05 – MOTOR AND ICE CONTAINER PARTS

Products

PositionProduct
2ICE BIN
3AUGER
4Washer
5SPACER, STEP
6COVER, CRUSHER
7BLADE, ROTARY A
8SPACER, FLAT
9Blade, Fixed
10W10341943 Whirlpool Blade
11W10178238 Whirlpool Blade Block
12W10166878 Whirlpool Roll Pin
13BLADE, ROTARY C
14WP489235 Whirlpool Refrigerator Washer
15WP2198661 Whirlpool Refrigerator Washer
16WP2220457 Whirlpool Refrigerator Ice Bin Coupling
17WP8281164 Whirlpool Refrigerator Screw
18WP3400065 Whirlpool Refrigerator Screw
19W11652042 Whirlpool Bin Latch
20WP2220458 Whirlpool Drive Cam
21WPW10258544 Whirlpool Refrigerator Shaft
22W10852956 Whirlpool Refrigerator Spring
23CHUTE
24WP2198628 Whirlpool Door Seal
25WPW10291905 Whirlpool Seal
26WP2212370 Whirlpool Washer
27DISPENSER, MOTOR
28WPW10287594 Whirlpool Refrigerator Front Cover
100W11109888 Whirlpool Refrigerator Ice Container
