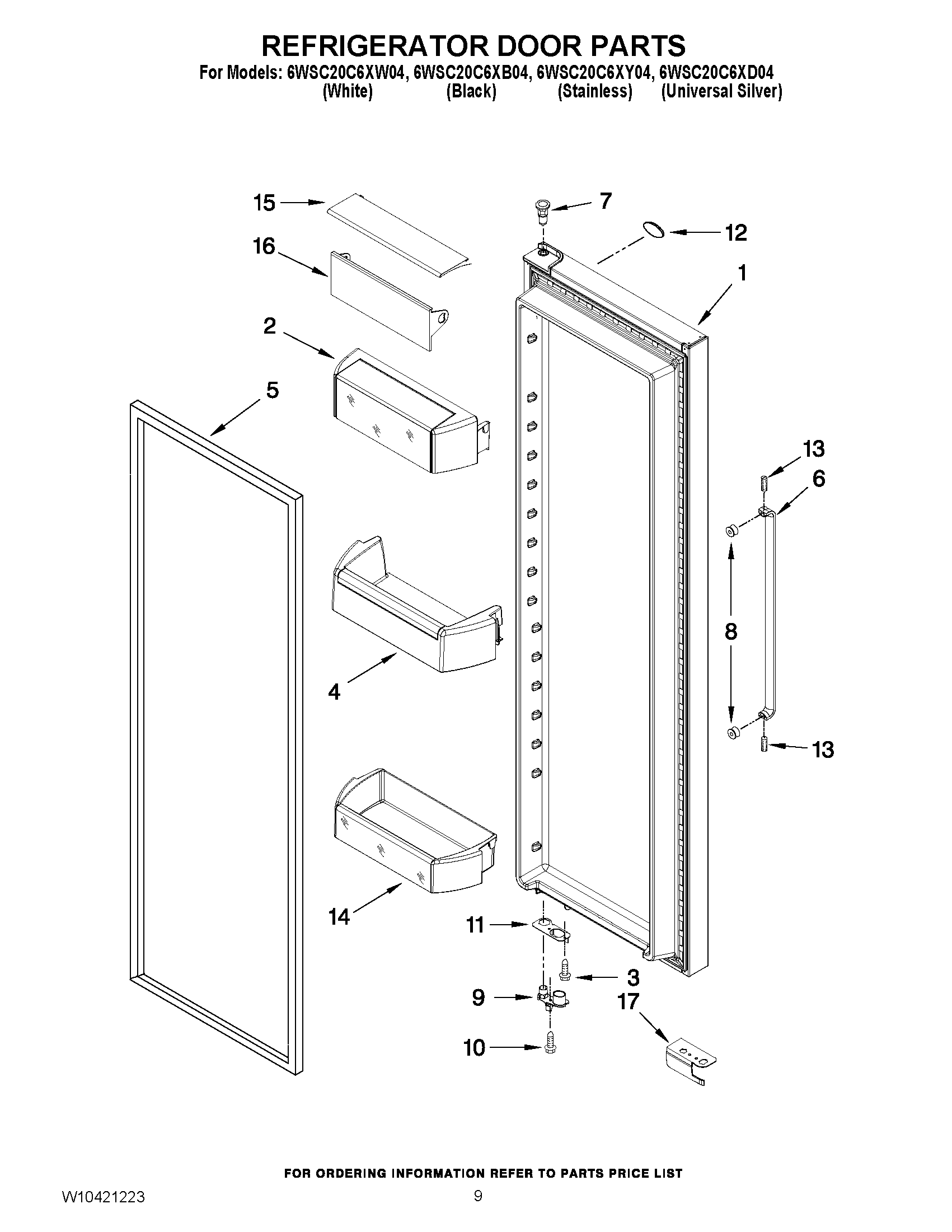

6WSC20C6XD04 06 – REFRIGERATOR DOOR PARTS

6WSC20C6XD04 06 – REFRIGERATOR DOOR PARTS

Written by

in

6WSC20C6XD04 06 – REFRIGERATOR DOOR PARTS

Products

PositionProduct
1REFRIGERATOR DOOR (INCLUDES ITEM 5) (UNIVERSAL SILVER)
1REFRIGERATOR DOOR (INCLUDES ITEM 5) (STAINLESS)
1REFRIGERATOR DOOR (INCLUDES ITEM 5) (BLACK)
1REFRIGERATOR DOOR (INCLUDES ITEM 5) (WHITE)
2WPW10324760 Whirlpool Refrigerator Door Shelf Bin
3SCREW
4DOOR BIN, SHALLOW
5WPW10249912 Whirlpool Refrigerator FIP Gasket
5W10355582 Whirlpool Refrigerator Door Gasket
5WPW10247884 Whirlpool Refrigerator FIP Gasket
6HANDLE
7WP2182181 Whirlpool Refrigerator Thimble
8WPW10170540 Whirlpool Screw
9WPW10257201 Whirlpool Door Closing Cam
9WPW10257203 Whirlpool Refrigerator Lower Door Closing Cam
9WPW10248011 Whirlpool Refrigerator Door Closing Cam White
10WPW10296804 Whirlpool Refrigerator Screw
11W11037957 Whirlpool Refrigerator Bracket
12WP2213265 Whirlpool Refrigerator Nameplate
13SCREW
14WPW10335220 Whirlpool Refrigerator Cantilever Bin
15WPW10316883 Whirlpool Refrigerator Door Compressor
16WPW10316885 Whirlpool Refrigerator Compressor Door
17W10789144 Whirlpool Refrigerator Wire Cover
17W11661847 Whirlpool Wire Cover
17W10257216 Whirlpool Refrigerator Wire Cover
