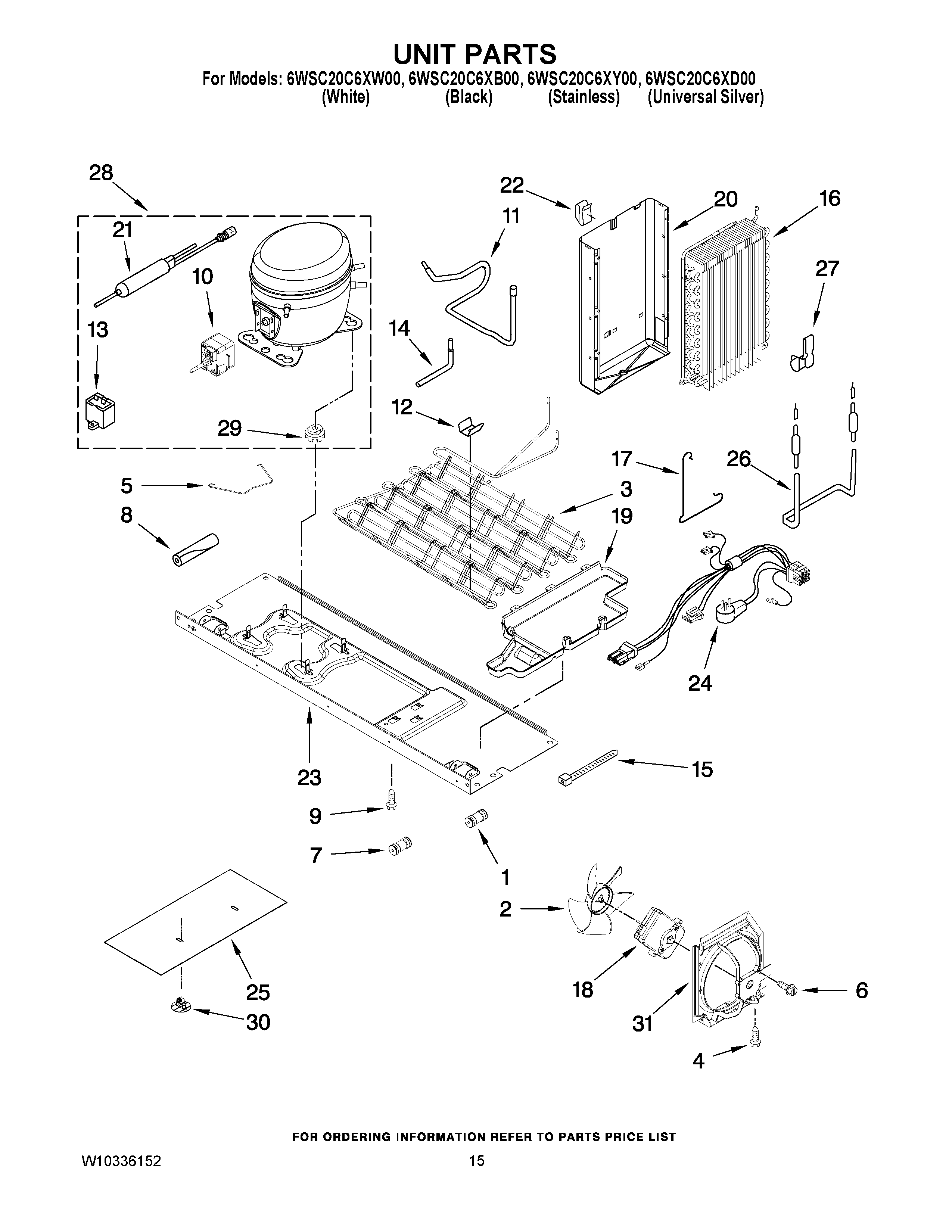

6WSC20C6XW00 09 – UNIT PARTS

Products

Position	Product
NI	978030 Whirlpool Refrigerator Valve
NI	VALVE, ACCESS (5/8“)
NI	876764 Whirlpool Refrigerator Primary Valve
NI	978026 Whirlpool Refrigerator Primary Valve
NI	978027 Whirlpool Refrigerator Primary Valve
NI	VALVE, ACCESS (1/2“)
NI	WP978025 Whirlpool Refrigerator Valve
2	W10156818 Whirlpool Refrigerator Fan Blade
3	W11708426 Whirlpool Condenser Assembly
4	WP489399 Whirlpool Refrigerator Screw
5	Strap, Bale
6	WPW10171469 Whirlpool Refrigerator Screw
7	WPW10277958 Whirlpool Refrigerator Fitting
8	SLEEVE
9	W11544659 Whirlpool Refrigerator Screw
10	WP2312007 Whirlpool Refrigerator Start Device
11	W11311688 Whirlpool Refrigerator Tube
12	W10683556 Whirlpool Refrigerator Clip
13	2321245 Whirlpool Refrigerator Capacitor
14	W10858105 Whirlpool Refrigerator Tube
15	WPW10339879 Whirlpool Wire Tie
16	WP2188822 Whirlpool Refrigerator Evaporator
17	Clamp
18	W10837641 Whirlpool Refrigerator Condenser Motor
19	WPW10251469 Whirlpool Refrigerator Evaporator Tray
20	W10274575 Whirlpool Refrigerator Shield
21	WPW10143759 Whirlpool Dryer Filter
22	Clip, Heat Shield
23	W10277704 Whirlpool Refrigerator Support
24	WPW10242407 Whirlpool Refrigerator Power Cord
25	UNIT COVER, BOTTOM
26	WPW10495967 Whirlpool Refrigerator Heater
27	W11623163 Whirlpool Refrigerator Clip
28	W10183407 Whirlpool Refrigerator Compressor
29	876811 Whirlpool Grommet
29	WPW10169124 Whirlpool Refrigerator Grommet
30	W10296661 Whirlpool Refrigerator Clip
31	WPW10251467 Whirlpool Refrigerator Air Baffle
