6WSC20C6XY02 04 – FREEZER LINER PARTS

6WSC20C6XY02 04 – FREEZER LINER PARTS

Written by

in

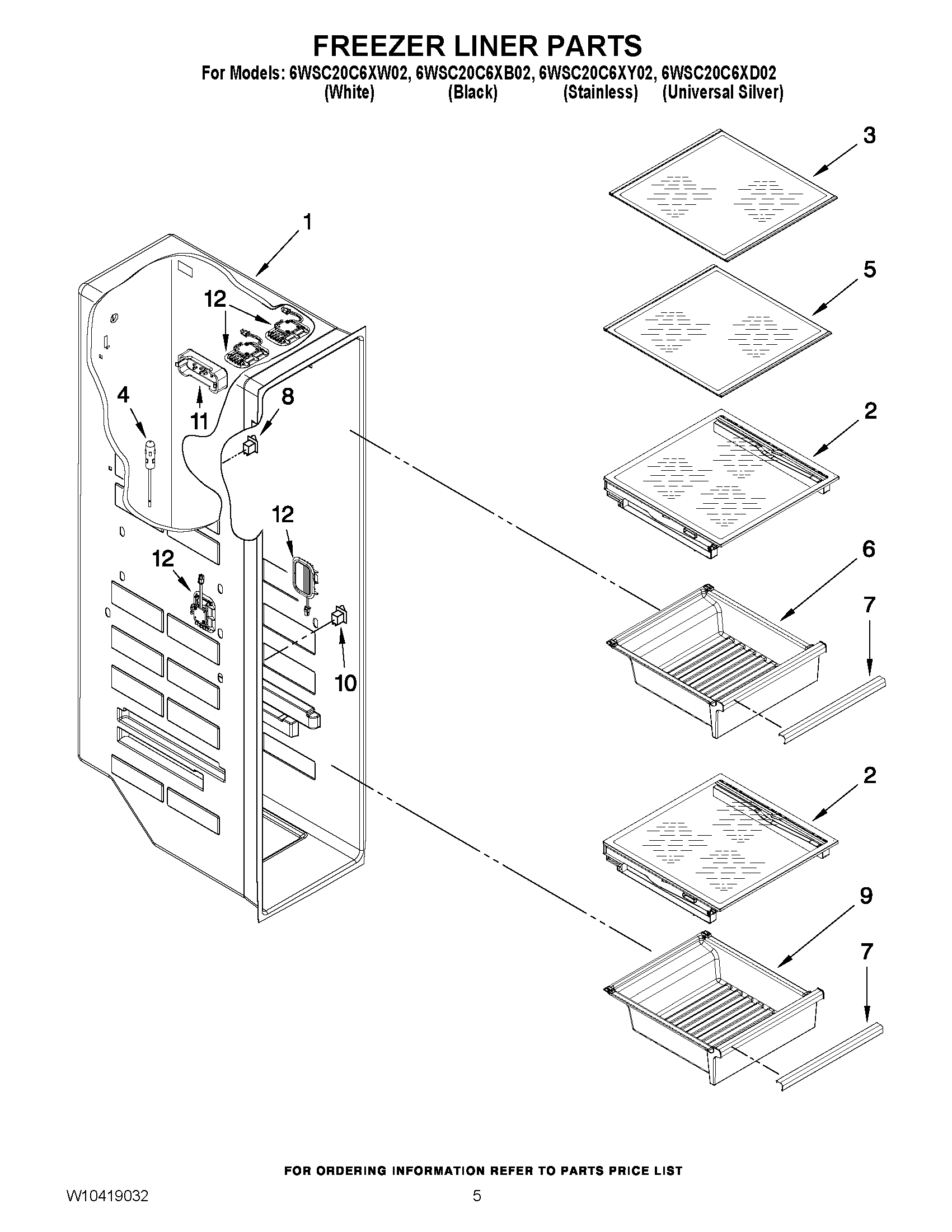

6WSC20C6XY02 04 – FREEZER LINER PARTS

Products

PositionProduct
1CABINET (NOT A SERVICEABLE PART)
2COVER ASSY
3WPW10269160 Whirlpool Glass Shelf
4THERMISTOR
5WPW10269161 Whirlpool Refrigerator Glass Shelf
6PAN, FREEZER UPPER (ALSO ORDER 9)
7TRIM, HANDLE
8W11123943 Whirlpool Refrigerator Switch
9PAN, FREEZER LOWER (ALSO ORDER 11)
10W11457217 Whirlpool Refrigerator Rocker Switch Combination
11W10425253 Whirlpool Refrigerator Cover
12MODULE
