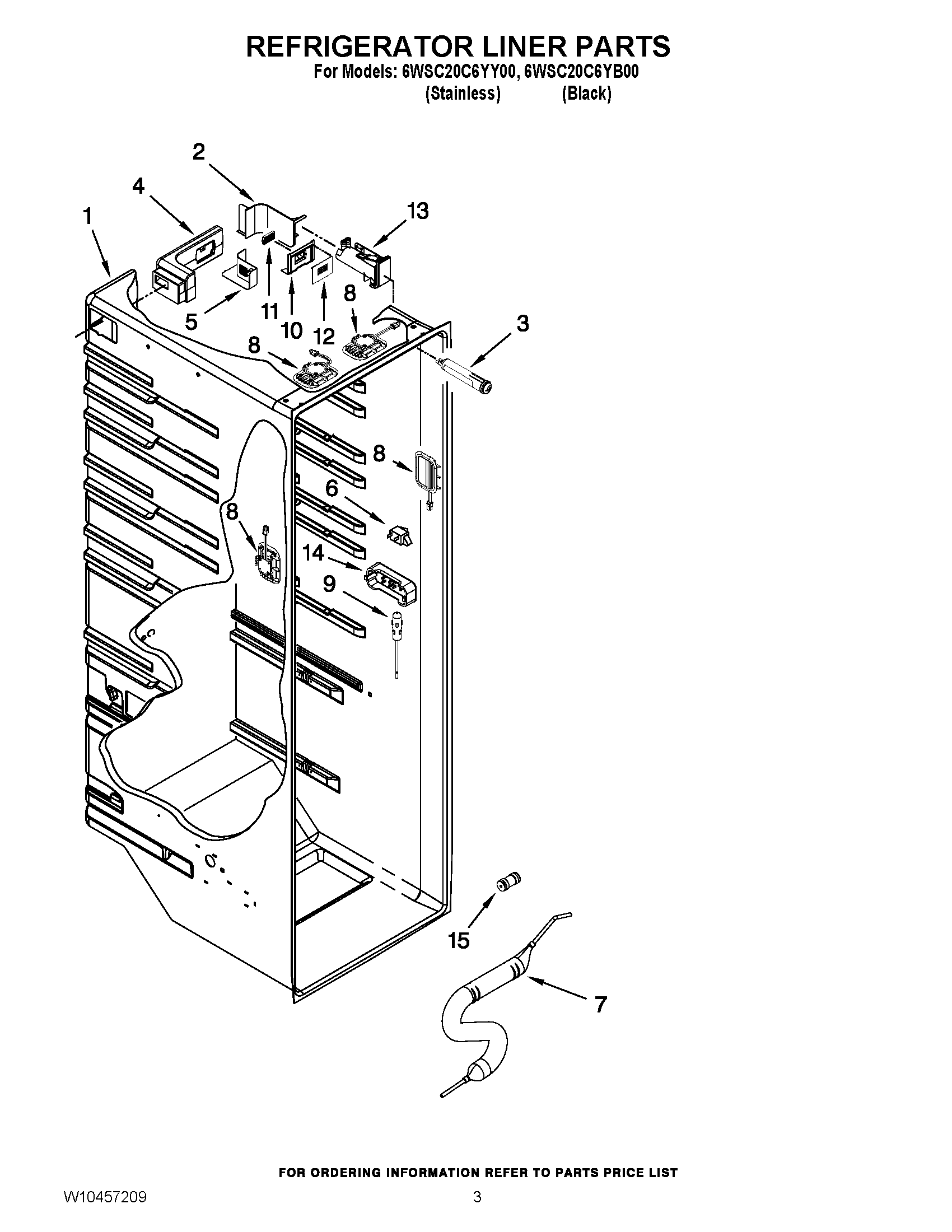

6WSC20C6YY00 02 – REFRIGERATOR LINER PARTS

6WSC20C6YY00 02 – REFRIGERATOR LINER PARTS

Written by

in

6WSC20C6YY00 02 – REFRIGERATOR LINER PARTS

Products

PositionProduct
1CABINET (NOT A SERVICEABLE PART)
2WPW10260405 Whirlpool Refrigerator Filter Cover
3EDR1RXD1 Whirlpool EveryDrop® Filter 1 Refrigerator Water
4W11162594 Whirlpool Diffuser
5WPW10260409 Whirlpool Refrigerator Cover
6W11384469 Whirlpool Door Switch
7W11613294 Whirlpool Refrigerator Reservoir
8MODULE
9THERMISTOR
10W10342986 Whirlpool Refrigerator Cover
11W10311524 Whirlpool FreshFlow Refrigerator Air Filter
12AIR FILTER COVER
13WPW10238123 Whirlpool Refrigerator Housing
14WPW10425252 Whirlpool Refrigerator Cover
15WP2300868 Whirlpool Refrigerator Fitting
