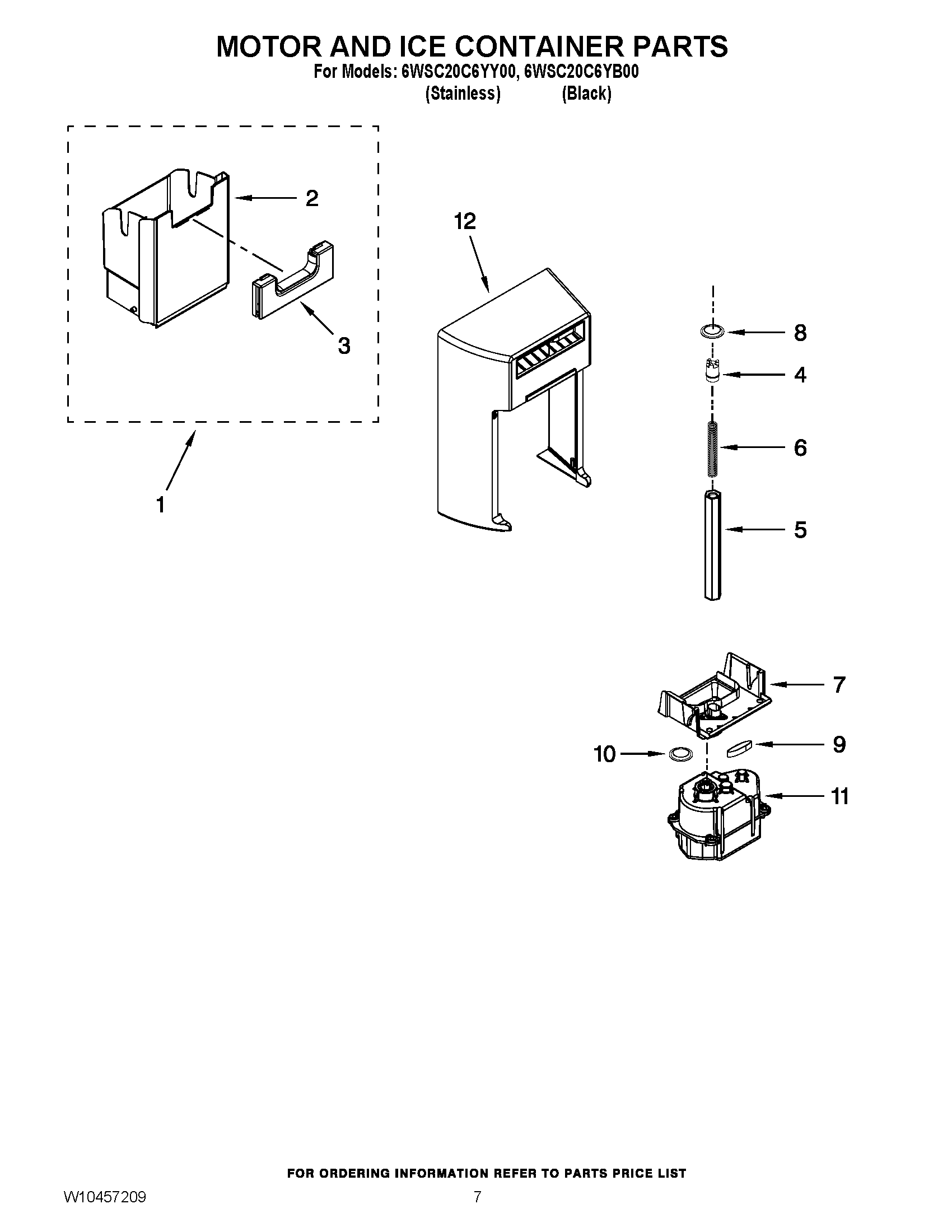

6WSC20C6YY00 05 – MOTOR AND ICE CONTAINER PARTS

Written by

Products

Position	Product
2	ICE BIN
3	W11652042 Whirlpool Bin Latch
4	WP2220458 Whirlpool Drive Cam
5	WPW10258544 Whirlpool Refrigerator Shaft
6	W10852956 Whirlpool Refrigerator Spring
7	CHUTE
8	WP2198628 Whirlpool Door Seal
9	WPW10291905 Whirlpool Seal
10	WP2212370 Whirlpool Washer
11	DISPENSER, MOTOR
12	WPW10287594 Whirlpool Refrigerator Front Cover
100	W11109888 Whirlpool Refrigerator Ice Container
