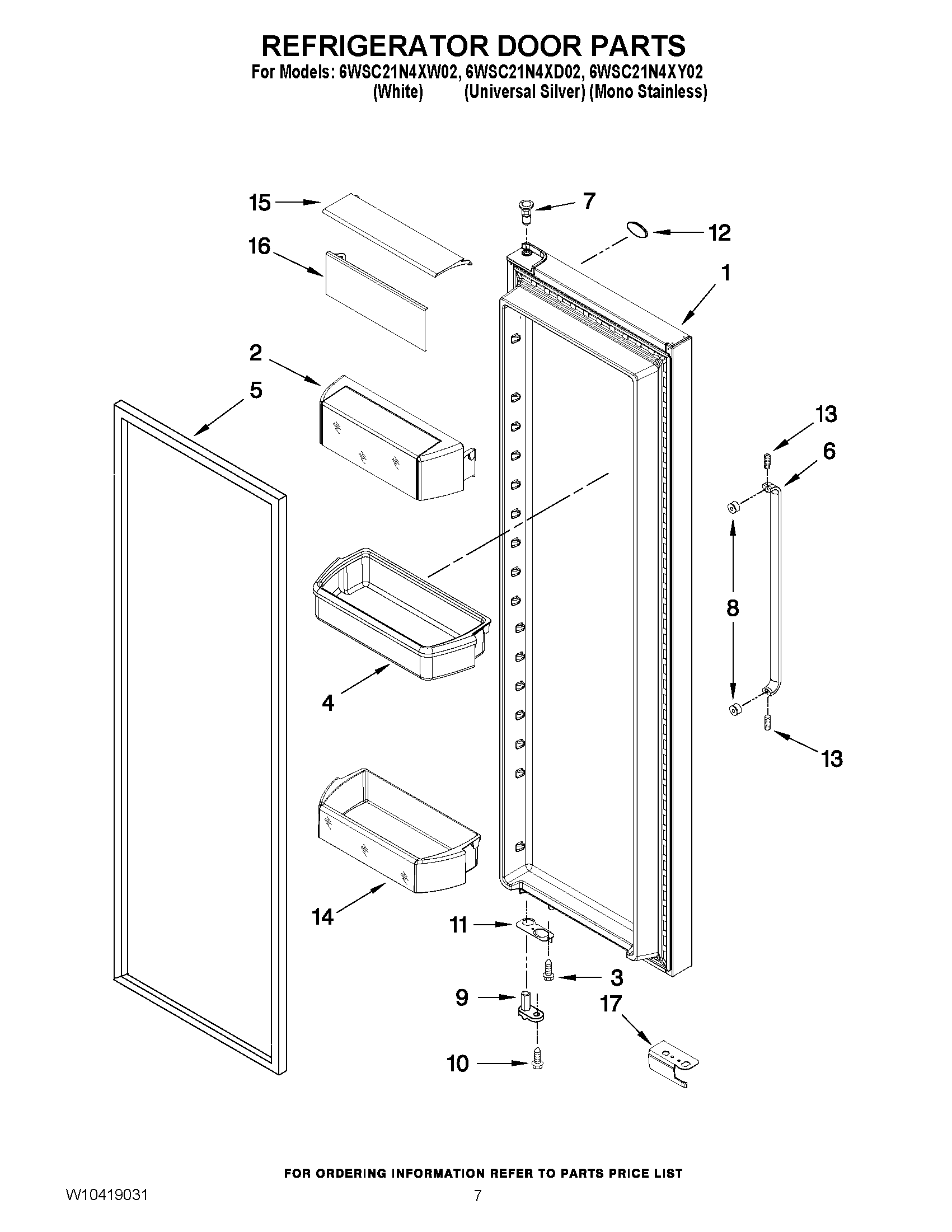

6WSC21N4XW02 05 – REFRIGERATOR DOOR PARTS

6WSC21N4XW02 05 – REFRIGERATOR DOOR PARTS

Written by

in

6WSC21N4XW02 05 – REFRIGERATOR DOOR PARTS

Products

PositionProduct
1REFRIGERATOR DOOR (INCLUDES ITEM 5) (UNIVERSAL SILVER)
1REFRIGERATOR DOOR (INCLUDES ITEM 5) (STAINLESS)
1REFRIGERATOR DOOR (INCLUDES ITEM 5) (WHITE)
2WPW10324760 Whirlpool Refrigerator Door Shelf Bin
3SCREW
4W10286561 Whirlpool Bin Containment Lever
5WPW10247884 Whirlpool Refrigerator FIP Gasket
5W10355582 Whirlpool Refrigerator Door Gasket
6HANDLE
7WP2182181 Whirlpool Refrigerator Thimble
8WPW10170540 Whirlpool Screw
9WPW10248011 Whirlpool Refrigerator Door Closing Cam White
9WPW10257203 Whirlpool Refrigerator Lower Door Closing Cam
10WPW10296804 Whirlpool Refrigerator Screw
11W11037957 Whirlpool Refrigerator Bracket
12WP2213265 Whirlpool Refrigerator Nameplate
13SCREW
14W10309878 Whirlpool Control Bin
15WPW10316883 Whirlpool Refrigerator Door Compressor
16WPW10316885 Whirlpool Refrigerator Compressor Door
17W11661847 Whirlpool Wire Cover
17W10789144 Whirlpool Refrigerator Wire Cover
