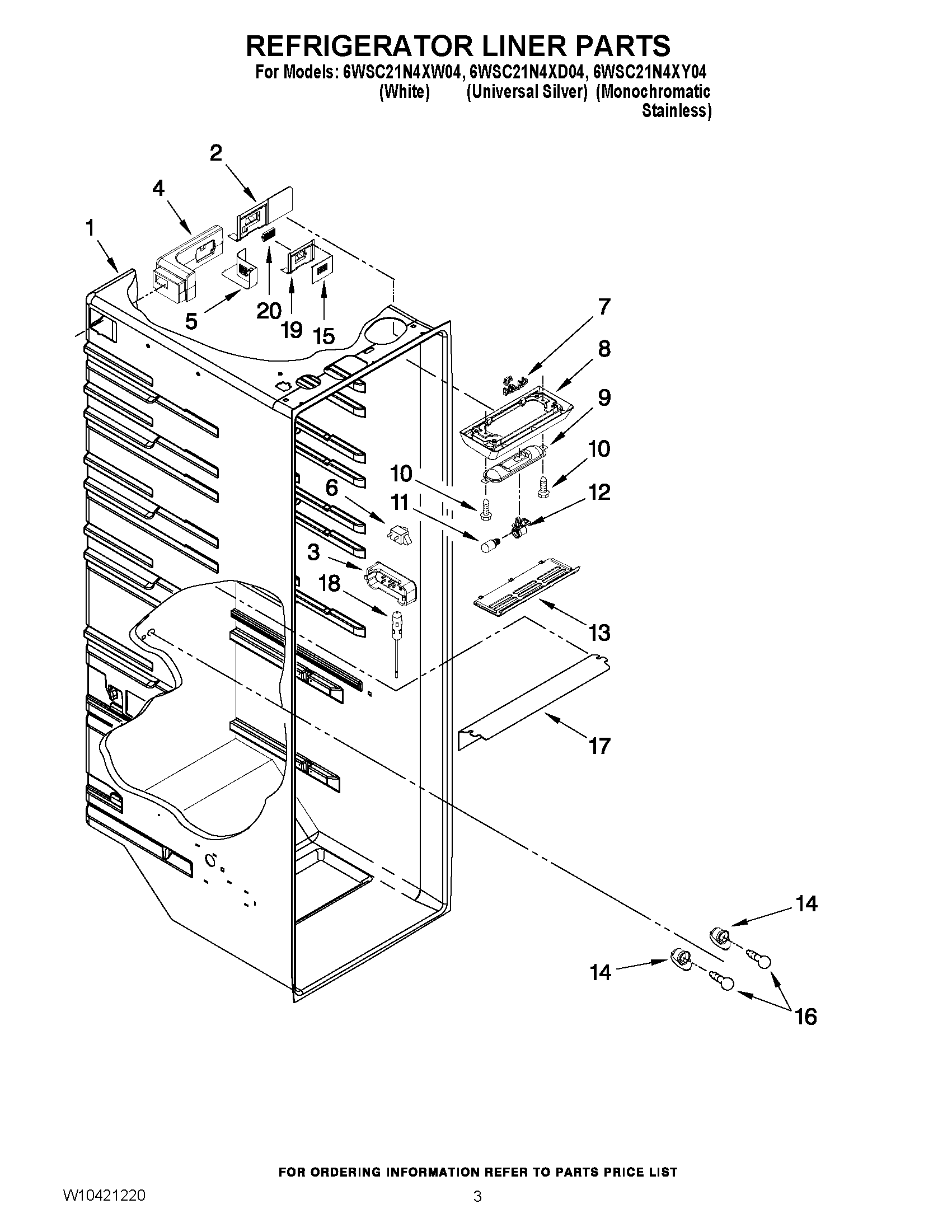

6WSC21N4XW04 02 – REFRIGERATOR LINER PARTS

Products

PositionProduct
1CABINET (NOT A SERVICEABLE PART)
3WPW10425252 Whirlpool Refrigerator Cover
4W11162594 Whirlpool Diffuser
5WPW10260409 Whirlpool Refrigerator Cover
6W11384469 Whirlpool Door Switch
7WIRE ASSY, TOP LIGHT
8W10280178 Whirlpool Refrigerator Trim
92223680 Whirlpool Refrigerator Shield
10WP3400906 Whirlpool Refrigerator Screw
11W11618980 Whirlpool Light Bulb
12W11661565 Whirlpool Refrigerator Socket
13W10280420 Whirlpool Refrigerator Light Lens
14W11447232 Whirlpool Refrigerator Socket
15AIR FILTER COVER
16WP67002552 Whirlpool Refrigerator Light Bulb
17WPW10269099 Whirlpool Refrigerator Light Lens
18THERMISTOR
19SUPPORT, AIR FILTER
20W10311524 Whirlpool FreshFlow Refrigerator Air Filter
