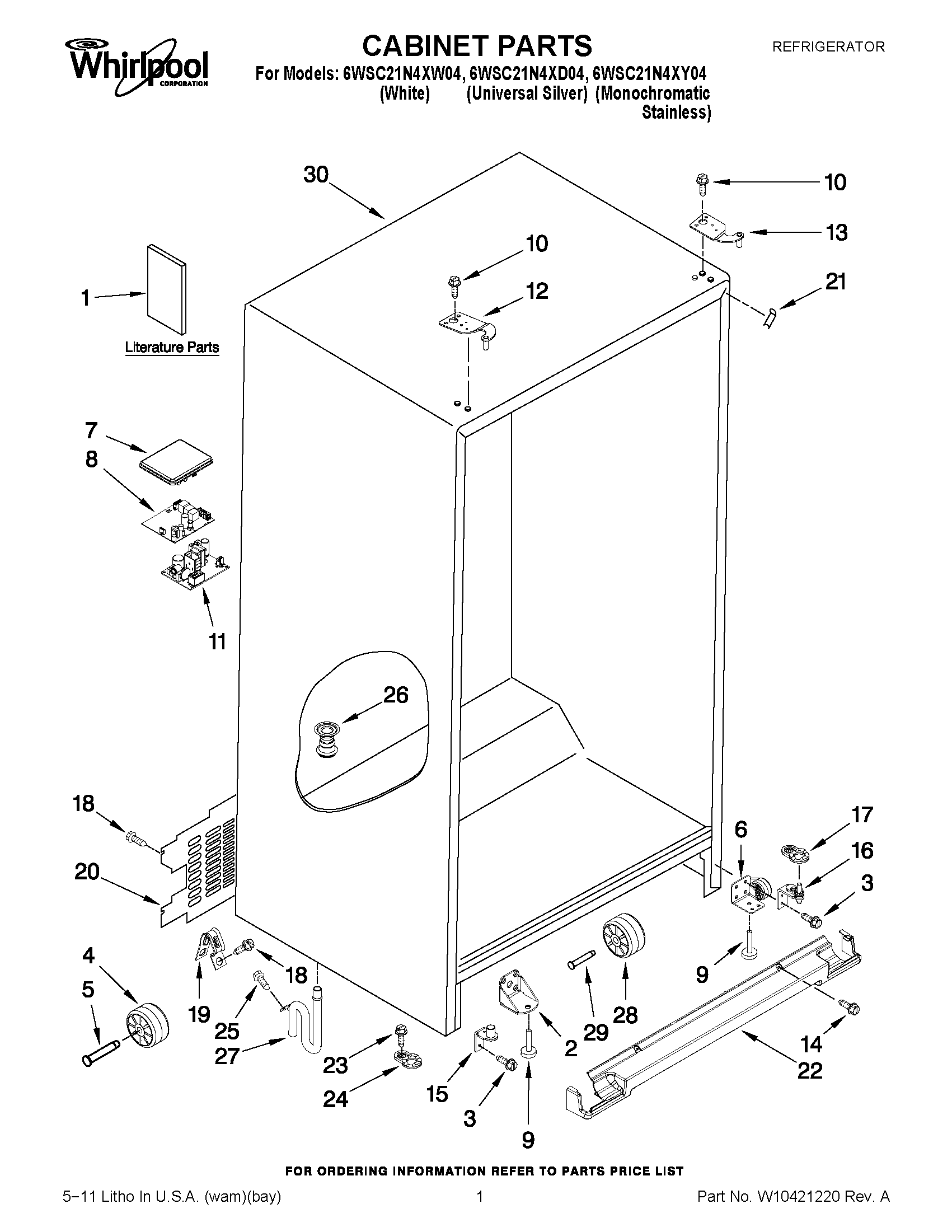

6WSC21N4XY04 01 – CABINET PARTS

6WSC21N4XY04 01 – CABINET PARTS

Written by

in

6WSC21N4XY04 01 – CABINET PARTS

Products

PositionProduct
1USE & CARE GUIDE
1SERVICE & WIRING SHEET
1ENERGY LABEL
3WPW10297485 Whirlpool Refrigerator Screw
4WP67005149 Whirlpool Roller
567006434 Whirlpool Axle Pin
6W11266052 Whirlpool Refrigerator Bracket
7LID, HV BOX
8WPW10158418-includeCORE Whirlpool WPW10158418 Refrigerator Electronic Control Board + Core
9WPW10141622 Whirlpool Leveler
10WPW10308751 Whirlpool Screw
10WPW10308750 Whirlpool Refrigerator Screw
11WPW10235418-includeCORE Whirlpool WPW10235418 Refrigerator Electronic Control Board + Core
12W11590581 Whirlpool Refrigerator Door Hinge
12W10901051 Whirlpool Refrigerator Door Hinge
13W11573587 Whirlpool Refrigerator Door Hinge
13HINGE-DOOR
14WPW10142283 Whirlpool Refrigerator Screw
15W11293373 Whirlpool Refrigerator Door Hinge
15W11293374 Whirlpool Refrigerator Door Hinge
17W10500000 Whirlpool Refrigerator Door Hinge
17W10500004 Whirlpool Refrigerator Door Hinge
18SCREW
19549193 Whirlpool Refrigerator Power Clamp
20WPW10393909 Whirlpool Unit Cover
21WP12587703AP Whirlpool Refrigerator Filler
2112587703W Whirlpool Refrigerator Cover
22WPW10713153 Whirlpool Refrigerator Grille
22WPW10713160 Whirlpool Refrigerator Grille
23WP489483 Whirlpool Screw
24W10876198 Whirlpool Refrigerator Door Cam
24W10876191 Whirlpool Refrigerator Door Cam
25WP489464 Whirlpool Refrigerator Screw
26W10247979 Whirlpool Refrigerator Fitting
27W10280082 Whirlpool Extension
28WPW10475495 Whirlpool Roller Assembly
29WPW10285005 Whirlpool Refrigerator Rivet
30CABINET (NOT A SERVICEABLE PART)
