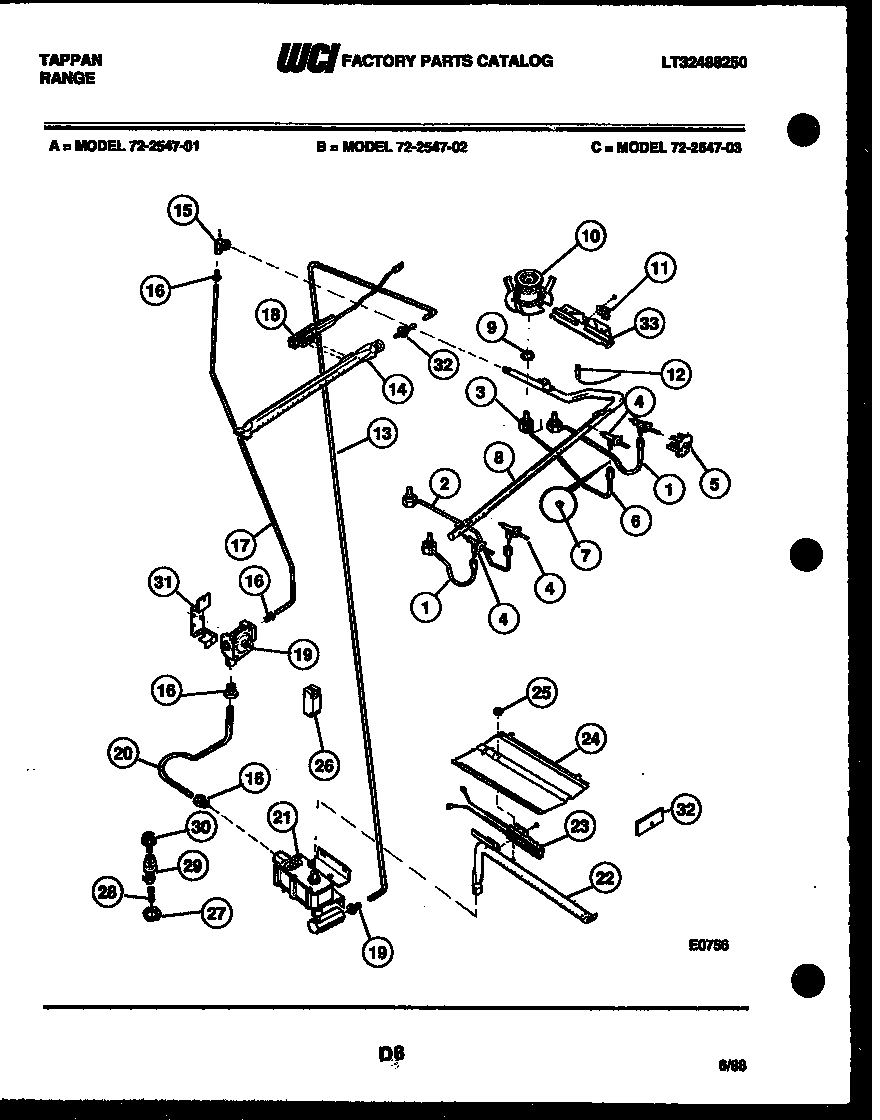

72-2547-00-02 08 – BURNER, MANIFOLD AND GAS CONTROL

Products

PositionProduct
*92501WCI 3051420
1BURNER TUBE-RF & LF
2WCI 079T033H03
3WCI 079T033H02
4WCI 774T135P01
5IGN.-SWITCH
6NUT COMPRESSN (4)
7WCI 247T074P01
8MANIFOLD, PIPE
9NUT SPECIAL
10WCI 079T032S02
11RETAINER ELECTROS
12WCI 3131686
13WCI 3131643
14WCI 079T026P01
15ELBOW 1/2 NP TO 9/16-24
16FITTING-LOXIT (8)
17TUBE-REGUL TEE
18IGNITER-UPPER OVEN
195303935125 Frigidaire Pressure Regulator
20TUBE-VALVE TO REGUL
215303208499 Frigidaire Safety Gas Valve
22WCI 079T029P03
235303935066 Frigidaire Oven Flat Igniter 17" Leads
24WCI 3131327
255303013272 Frigidaire Oven Nut
265303912606 Frigidaire Oven Range Spark Module 2+0 4 Large Terminals
27NUT FUSE
28FUSE, BUSS
29RECEPT-FUSE
30CAP-FUSE RECEPT.
31316091600 Frigidaire Oven Bracket
32WCI 3131641
32BBRKT MIXER
32CWCI 3131189
32AWCI 072T821F01
33WCI 136T355W03
