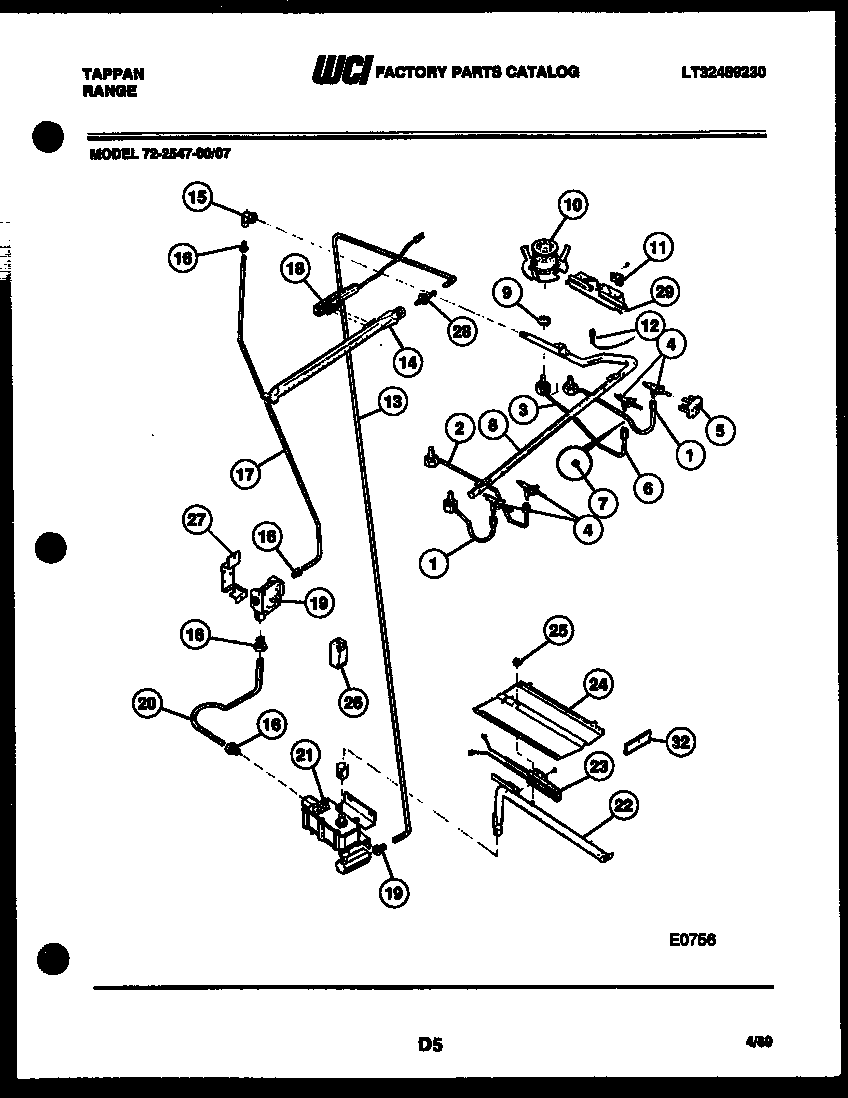

72-2547-00-07 08 – BURNER, MANIFOLD AND GAS CONTROL

72-2547-00-07 08 – BURNER, MANIFOLD AND GAS CONTROL

Written by

in

72-2547-00-07 08 – BURNER, MANIFOLD AND GAS CONTROL

Products

PositionProduct
*22456WCI 3051420
1BURNER TUBE-RF & LF
2WCI 079T033H03
3WCI 079T033H02
4WCI 3017542
5WCI 695T225P01
6NUT COMPRESSN (4)
7WCI 3012358
8WCI 3018861
9NUT, SPECIAL
10BURNER TOP (4)
11WCI 3018617
12IGNITER-TOP BURNER (4)
13WCI 3131643
14BURNER-UPPER OVEN
15ELBOW 1/2 NP TO 9/16-24
16FITTING-LOXIT (8)
17TUBE-REGUL TEE
18IGNITER-OVEN
195303935125 Frigidaire Pressure Regulator
20TUBE ALUM 3/8
215303208499 Frigidaire Safety Gas Valve
22WCI 3131634
235303935066 Frigidaire Oven Flat Igniter 17" Leads
24WCI 3131327
255303013272 Frigidaire Oven Nut
265303912606 Frigidaire Oven Range Spark Module 2+0 4 Large Terminals
27316091600 Frigidaire Oven Bracket
28AWCI 3018603
28BBRKT MIXER
28WCI 3131641
29WCI 136T355W03
