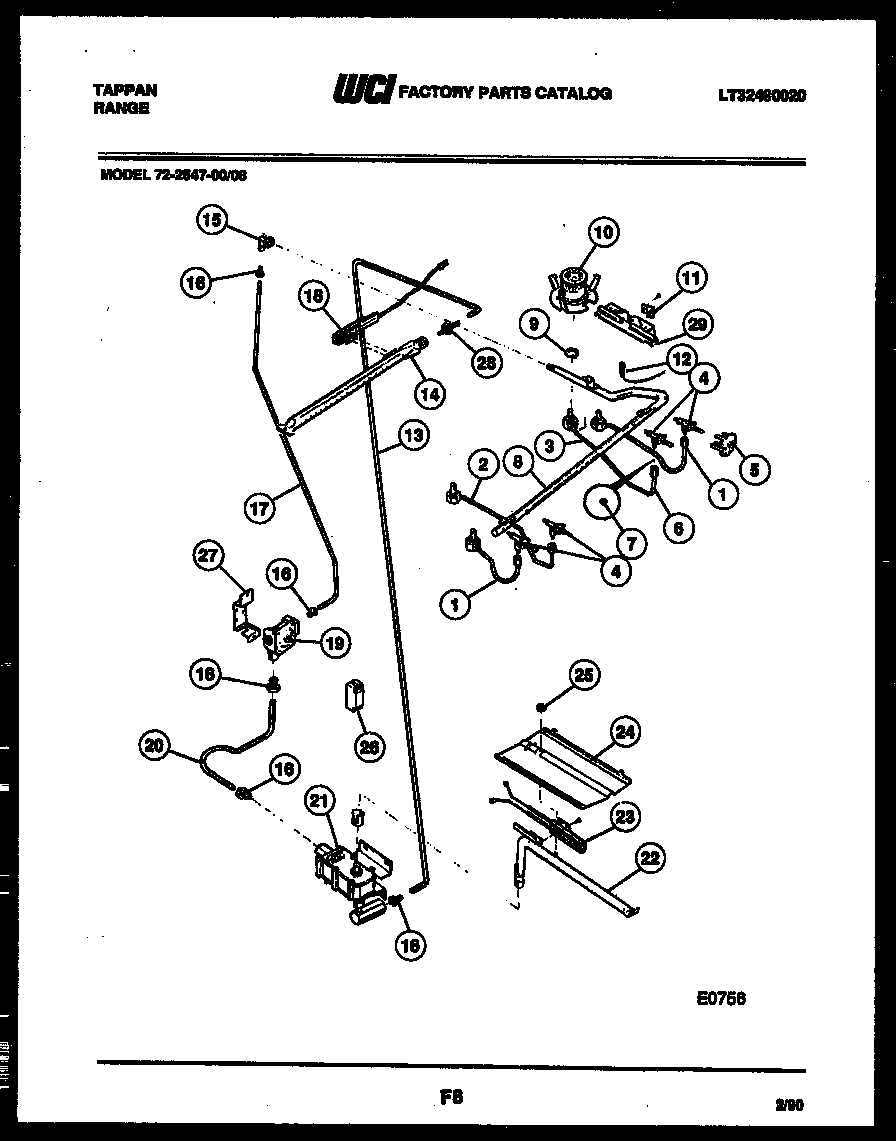

72-2547-00-08 08 – BURNER, MANIFOLD AND GAS CONTROL

Products

Position	Product
*35219	WCI 3051420
1	BURNER TUBE-RF & LF
2	WCI 079T033H03
3	WCI 079T033H02
4	WCI 3017542
5	WCI 695T225P01
6	NUT COMPRESSN (4)
7	WCI 3012358
8	WCI 3018861
9	NUT, SPECIAL
10	BURNER TOP (4)
11	WCI 3018617
12	IGNITER-TOP BURNER (4)
13	WCI 3131643
14	BURNER-UPPER OVEN
15	ELBOW 1/2 NP TO 9/16-24
16	FITTING-LOXIT (8)
17	TUBE-REGUL TEE
18	IGNITER-OVEN
19	5303935125 Frigidaire Pressure Regulator
20	TUBE ALUM 3/8
21	5303208499 Frigidaire Safety Gas Valve
22	WCI 3131634
23	5303935066 Frigidaire Oven Flat Igniter 17" Leads
24	WCI 3131327
25	5303013272 Frigidaire Oven Nut
26	5303912606 Frigidaire Oven Range Spark Module 2+0 4 Large Terminals
27	316091600 Frigidaire Oven Bracket
28A	WCI 3018603
28B	BRKT MIXER
28	WCI 3131641
29	WCI 136T355W03
