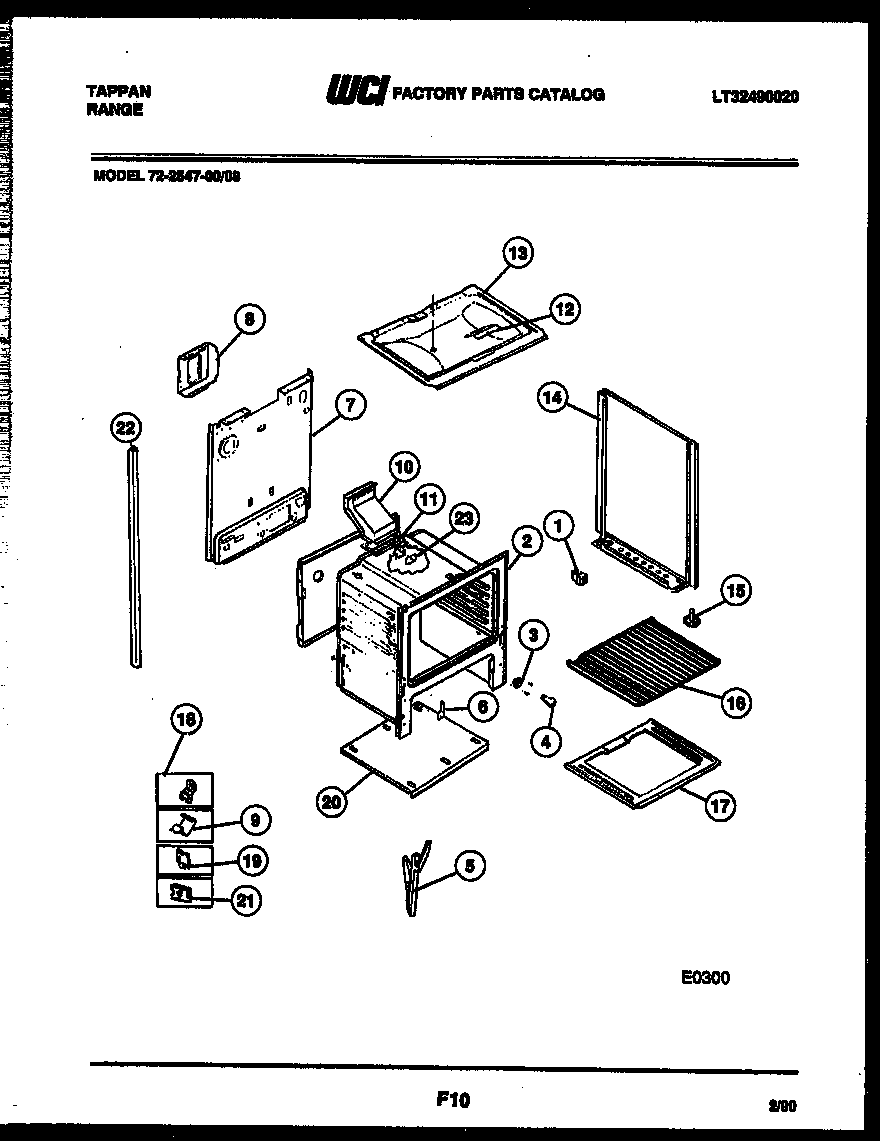

72-2547-00-08 09 – LOWER BODY PARTS

72-2547-00-08 09 – LOWER BODY PARTS

Written by

in

72-2547-00-08 09 – LOWER BODY PARTS

Products

PositionProduct
*35227ANTI-TIP KIT (NOT ILLUSTRATED)
1SPACER-BODYSIDE, (8)
3316116400 Frigidaire Oven Light Socket
4316538904 Frigidaire Oven Lamp Light
5CHANL-DR HNG (2)
6WCI 3131570
6A5304534000 Frigidaire Cord
7WCI 3131567
8WCI 3131660
9CLIP-WIRE
10316204402 Frigidaire Oven Flue
11316542102 Frigidaire Flue Gasket
12WCI 3131101
13WCI 3131185
14APNL B/S-RH (ALMOND)
14B/S-RH-(WHITE)
14AB/S-LH-(WHITE)
14PNL B/S-LH (ALMOND)
14PNL B/S-LH (WHEAT)
14APNL B/S-RH (WHEAT)
15SCREW-LEVELING
16316067902 Frigidaire Oven Rack
17BWCI 3131246
17BTTM-OVEN
17AINSULATION, OVEN WRAPPER
185303284616 Frigidaire Range Bulb Clip Thermostat
18AFSTNR PWR CORD (2) (NON-ILLUSTRATED)
19A3131903 Frigidaire Door/Drawer Bumper
19B316064600 Frigidaire Oven Support
19316539800 Frigidaire Oven Retainer
20APLATE-OV. LT MTG (NON-ILLUSTRATED)
20WCI 3131180
20CWASHER-BLACK
20BCOVER-POWER CORD, (NON-ILLUSTRATED)
21ACOVER-BURNER BOX
213203010 Frigidaire Clip
22ATUBE-POST LH
22B5300809968 Frigidaire Dishwasher P-1 Washer
22WCI 5303208642
22D316282700 Frigidaire Oven Screw
22ESHIELD-HEAT
22CINSUL-WOOL
23COVER-IGNITOR
