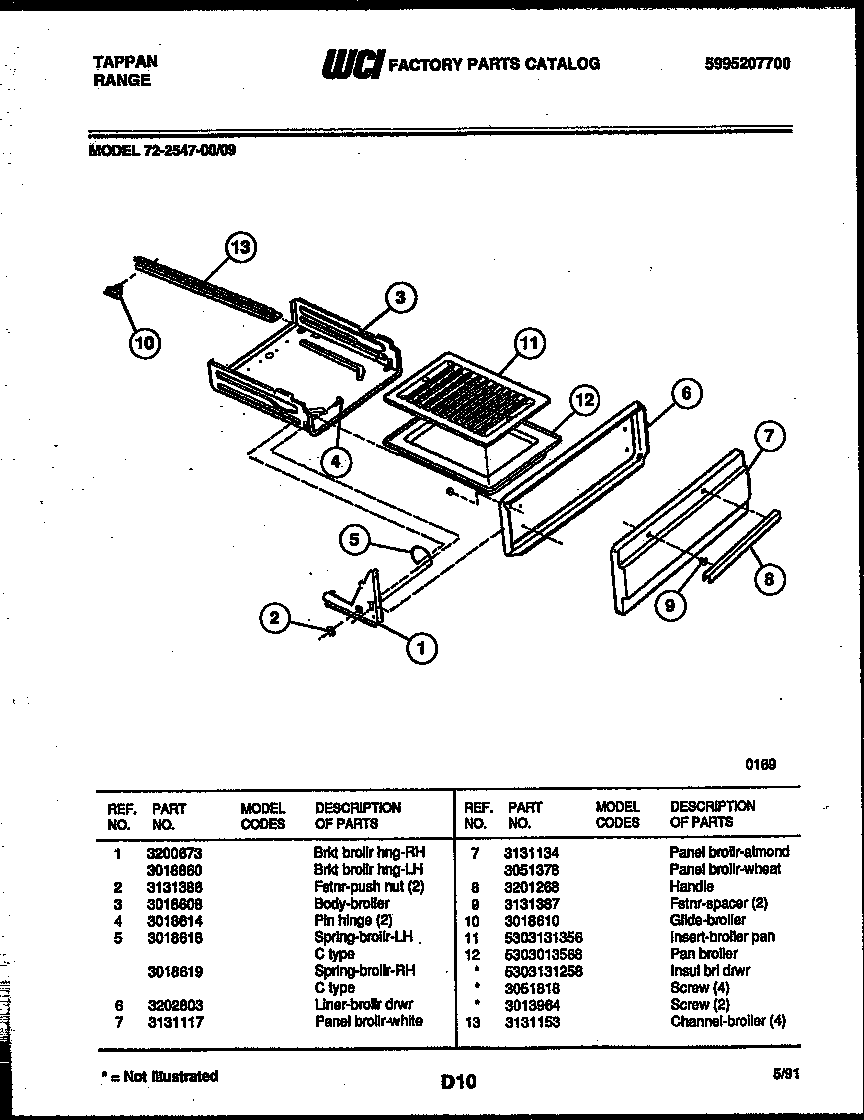

72-2547-00-09 05 – BROILER DRAWER PARTS

Products

Position	Product
1A	WCI 3018860
1	WCI 3200673
2	WCI 3131386
3	DRAWER-BROILER
4	PIN, HINGE (2)
5A	SPRING-BROILER, RH
5	WCI 3018618`
6	WCI 3202803
7	PNL DRAWER WHEAT
7	PANEL – BROILER ALMD
7	PNL-DRAWER (WHTE)
8	HANDLE-DRAWER, BRUSHED CHROME
9	FSTNR, SPACER (2)
10	GLIDE-DRAWER, REAR
11	WCI 5303131356
12B	5303300265 Frigidaire Oven Screw
12B	SCREW-PNL ASSY (2)
12	PAN-BROILER
12A	INSULATION, BROILER DRAWER
13	WCI 3131153
