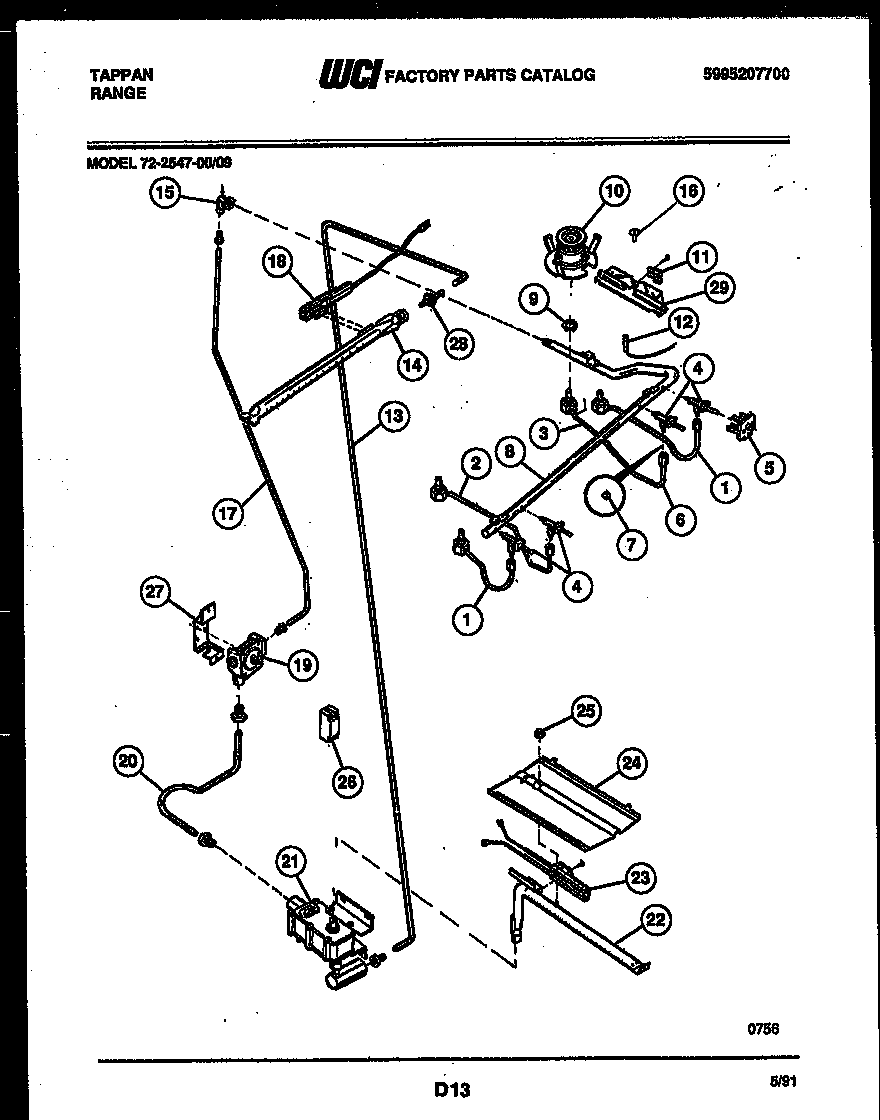

72-2547-00-09 08 – BURNER, MANIFOLD AND GAS CONTROL

Products

PositionProduct
1BURNER TUBE-RF & LF
2WCI 5303011570
3WCI 5303011569
4WCI 5303017542
5IGN.-SWITCH
6NUT COMPRESSN (4)
7FERRULE (4)
8WCI 3131440
9NUT, SPECIAL
10BURNER TOP (4)
11WCI 3018617
12IGNITER-TOP BURNER (4)
13WCI 5303211073
14BURNER-UPPER OVEN
15ELBOW 1/2 NP TO 9/16-24
16WCI 3051420
17TUBE-ALUM 3/8 REG/MANIFOLD PIPE
18IGNITER-UPPER OVEN
195303935125 Frigidaire Pressure Regulator
20TUBE-VALVE TO REGUL
215303208499 Frigidaire Safety Gas Valve
22WCI 5303131634
235303935066 Frigidaire Oven Flat Igniter 17" Leads
24WCI 3203265
255303013272 Frigidaire Oven Nut
265303912606 Frigidaire Oven Range Spark Module 2+0 4 Large Terminals
27316091600 Frigidaire Oven Bracket
28BBRKT MIXER
28AWCI 3018603
28WCI 5303211078
29WCI 3206267
