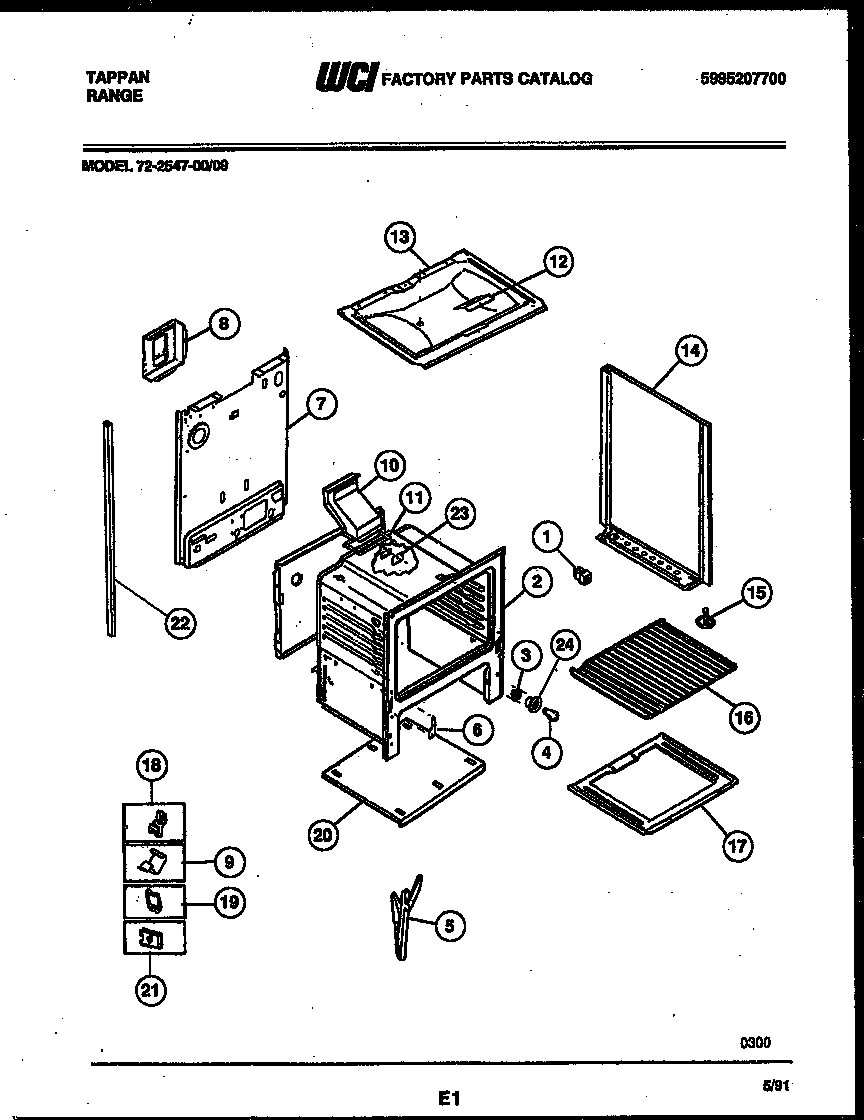

72-2547-00-09 09 – LOWER BODY PARTS

72-2547-00-09 09 – LOWER BODY PARTS

Written by

in

72-2547-00-09 09 – LOWER BODY PARTS

Products

PositionProduct
*50714WCI 08010570
*50714WCI 19100220007
1SPACER-BODYSIDE, (8)
3316116400 Frigidaire Oven Light Socket
4316538904 Frigidaire Oven Lamp Light
5CHAN-DOOR HINGE (2)
6A5304534000 Frigidaire Cord
6WCI 3131570
7WCI 3203082
8WCI 3131660
9CLIP-WIRE
10316204402 Frigidaire Oven Flue
11316542102 Frigidaire Flue Gasket
12WCI 08067757
13WCI 3131185
14PNL-B/S-RH-WHITE
14APNL-B/S-LH-WHITE
14AWCI 5303269545
14PNL-B/S RH-WHEAT
14WCI 5303269543
14APNL-B/S LH-WHEAT
15SCREW-LEVELING
16316067902 Frigidaire Oven Rack
17AINSULATION, OVEN WRAPPER
17BTTM-OVEN
17BINSUL – OVEN BACK (NON-ILLUSTRATED)
18AWCI 08067961
185303284616 Frigidaire Range Bulb Clip Thermostat
19A3131903 Frigidaire Door/Drawer Bumper
19316539800 Frigidaire Oven Retainer
19B316064600 Frigidaire Oven Support
20BWASHER-BLACK
20WCI 5303270160
20ACOVER-POWER CORD, (NON-ILLUSTRATED)
213203010 Frigidaire Clip
21ACOVER-OVEN FRONT
22ESHIELD-HEAT
22WCI 5303208642
22ATUBE-POST LH
22CINSUL-WOOL
22D316282700 Frigidaire Oven Screw
22B5300809968 Frigidaire Dishwasher P-1 Washer
23COVER-IGNITOR
23AANTI-TIP KIT (NOT ILLUSTRATED)
24WCI 3051511
