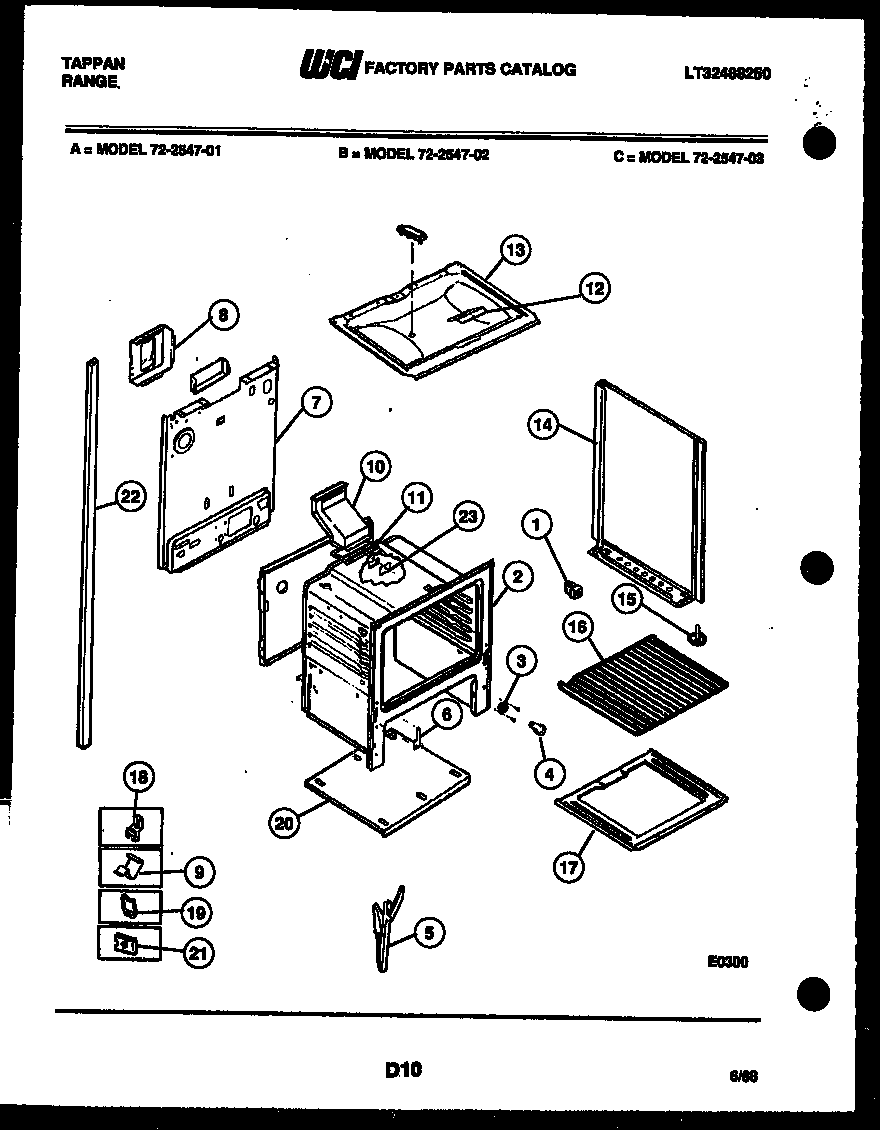

72-2547-66-02 09 – LOWER BODY PARTS

72-2547-66-02 09 – LOWER BODY PARTS

Written by

in

72-2547-66-02 09 – LOWER BODY PARTS

Products

PositionProduct
1SPACER-BDYSDE (8)
3316116400 Frigidaire Oven Light Socket
4316538904 Frigidaire Oven Lamp Light
5CHANL-DR HNG (2)
6A5304534000 Frigidaire Cord
6WCI 3131570
7WCI 3131567
8WCI 655T421F02-18
9CLIP, WIRE
10316204402 Frigidaire Oven Flue
11316542102 Frigidaire Flue Gasket
12WCI 3131101
13WCI 3131185
14PNL. B/S (RH WEAT)
14APNL. B/S (LH WEAT)
15WCI 636M004P01
16316067902 Frigidaire Oven Rack
17BWCI 3131246
17AWCI 3131201
17WCI 058T036F02-86
18AFSTNR-POWER CORD (NON-ILLUSTRATED)
185303284616 Frigidaire Range Bulb Clip Thermostat
19316539800 Frigidaire Oven Retainer
19A3131903 Frigidaire Door/Drawer Bumper
19B316064600 Frigidaire Oven Support
20BCOVER-POWER CORD, (NON-ILLUSTRATED)
20CWASHER-BLACK
20APLATE-OV. LT MTG (NON-ILLUSTRATED)
20WCI 3131180
21ACOVER FRNT MAIN (NON-ILLUSTRATED)
213203010 Frigidaire Clip
22A5300809968 Frigidaire Dishwasher P-1 Washer
22DSHIELD-HEAT
22C316282700 Frigidaire Oven Screw
22BINSUL-WOOL
22WCI 3051723
22WCI 3051724
23COVER PLATE (NON-ILLUSTRATED)
