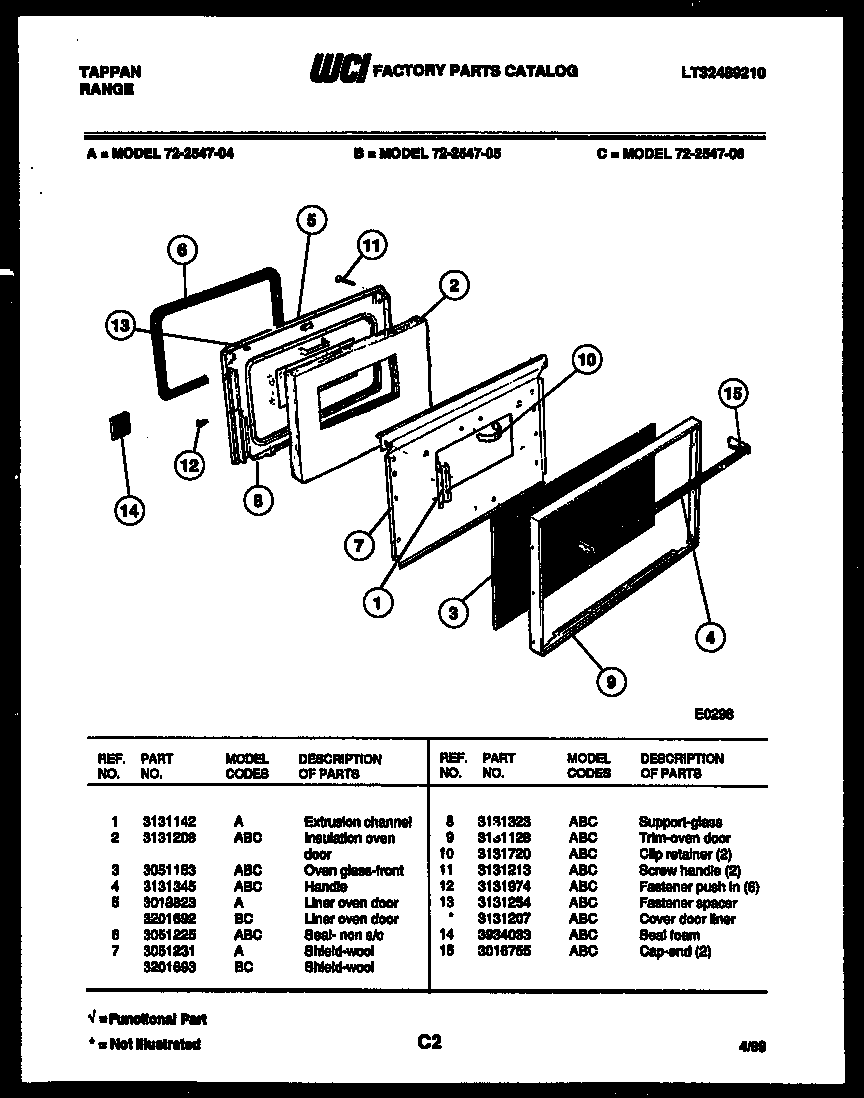

72-2547-66-04 04 – LOWER OVEN DOOR PARTS

Written by

Products

Position	Product
1	EXTRUSION-CHANNL
2	INSUL. OVEN DR
3	GLASS-FRONT BLACK
4	HANDLE
5	LINER-OVEN DOOR
6	5303202011 Frigidaire Door Seal
7	WCI 3051231
8	SUPPORT, GLASS
9	WCI 3131128
10	CLIP-RETAINING
11	SCREW HANDL (2)
12	FSTNR. SPACER (6)
13A	COVER DOOR LINER (NON-ILLUSTRATED)
13	CLIP
14	SEAL, FOAM (4)
15	316137003 Frigidaire Range / Cooktop End Cap
