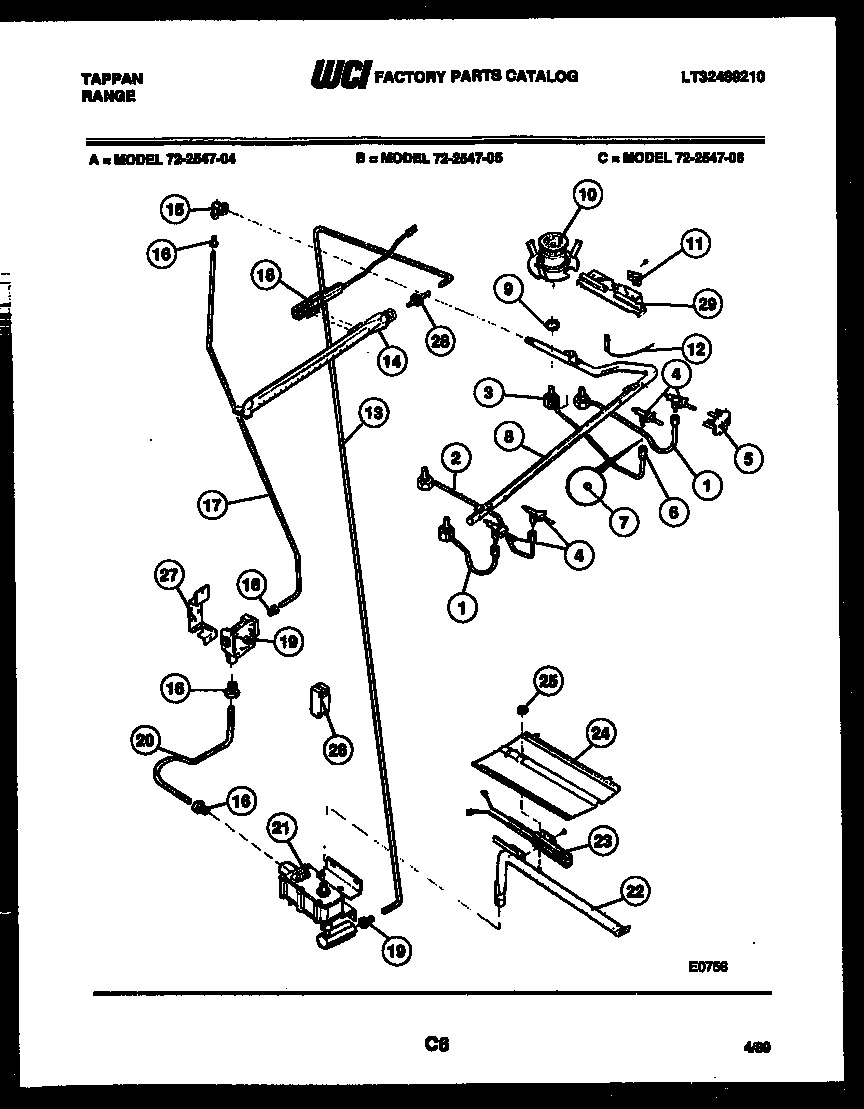

72-2547-66-05 08 – BURNER, MANIFOLD AND GAS CONTROL

Products

Position	Product
*22329	WCI 3051420
1	BURNER TUBE-RF & LF
2	WCI 079T033H03
3	WCI 079T033H02
4	WCI 774T135P01
5	IGN.-SWITCH
6	NUT COMPRESSN (4)
7	WCI 247T074P01
8	MANIFOLD, PIPE
9	NUT SPECIAL
10	WCI 079T032S02
11	RETAINER ELECTROS
12	WCI 3131686
13	WCI 3131643
14	WCI 079T026P01
15	ELBOW 1/2 NP TO 9/16-24
16	FITTING-LOXIT (8)
17	TUBE-REGUL TEE
18	IGNITER-UPPER OVEN
19	5303935125 Frigidaire Pressure Regulator
20	TUBE-VALVE TO REGUL
21	5303208499 Frigidaire Safety Gas Valve
22	WCI 079T029P03
23	5303935066 Frigidaire Oven Flat Igniter 17" Leads
24	WCI 3131327
25	5303013272 Frigidaire Oven Nut
26	5303912606 Frigidaire Oven Range Spark Module 2+0 4 Large Terminals
27	316091600 Frigidaire Oven Bracket
28	WCI 3131641
28B	BRKT MIXER
28A	WCI 072T821F01
28C	WCI 3131189
29	WCI 136T355W03
