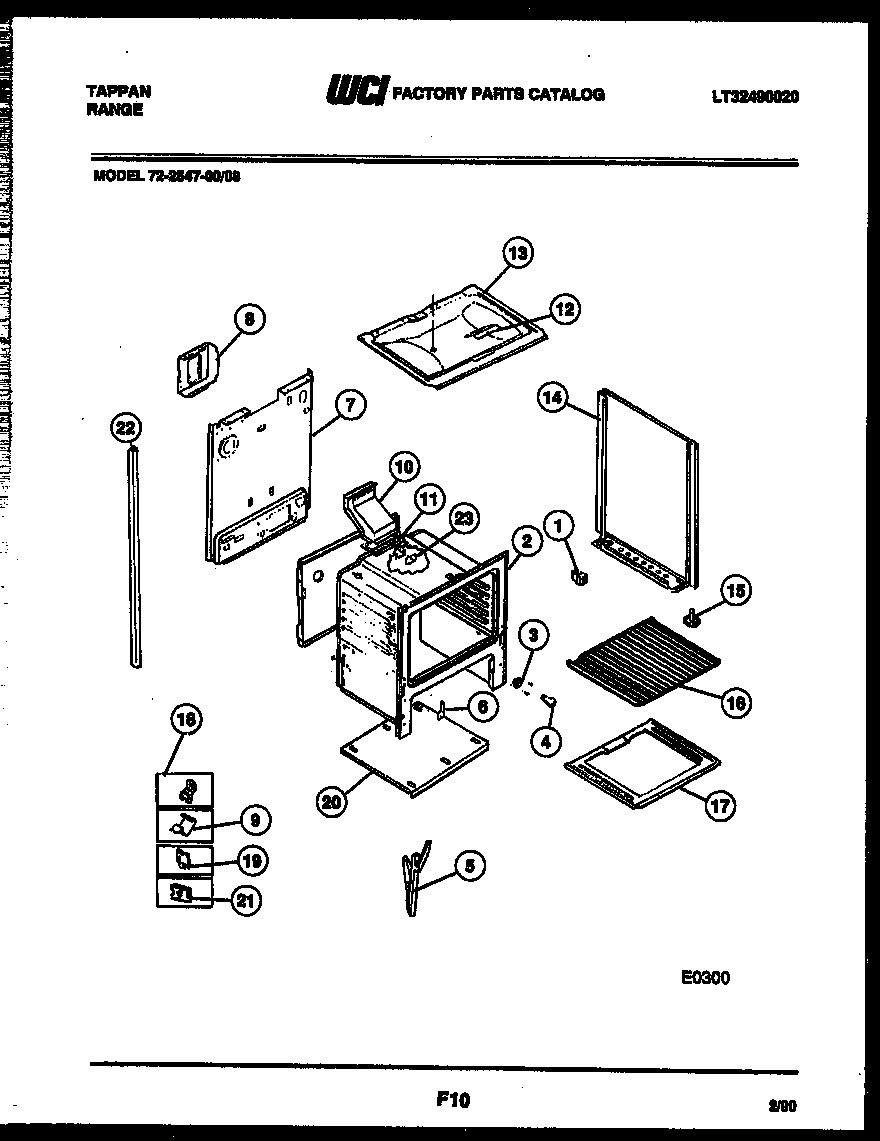

72-2547-66-08 09 – LOWER BODY PARTS

Products

Position	Product
*35227	ANTI-TIP KIT (NOT ILLUSTRATED)
1	SPACER-BODYSIDE, (8)
3	316116400 Frigidaire Oven Light Socket
4	316538904 Frigidaire Oven Lamp Light
5	CHANL-DR HNG (2)
6A	5304534000 Frigidaire Cord
6	WCI 3131570
7	WCI 3131567
8	WCI 3131660
9	CLIP-WIRE
10	316204402 Frigidaire Oven Flue
11	316542102 Frigidaire Flue Gasket
12	WCI 3131101
13	WCI 3131185
14A	PNL B/S-RH (WHEAT)
14	PNL B/S-LH (WHEAT)
15	SCREW-LEVELING
16	316067902 Frigidaire Oven Rack
17B	WCI 3131246
17A	INSULATION, OVEN WRAPPER
17	BTTM-OVEN
18A	FSTNR PWR CORD (2) (NON-ILLUSTRATED)
18	5303284616 Frigidaire Range Bulb Clip Thermostat
19	316539800 Frigidaire Oven Retainer
19B	316064600 Frigidaire Oven Support
19A	3131903 Frigidaire Door/Drawer Bumper
20B	COVER-POWER CORD, (NON-ILLUSTRATED)
20A	PLATE-OV. LT MTG (NON-ILLUSTRATED)
20	WCI 3131180
20C	WASHER-BLACK
21	3203010 Frigidaire Clip
21A	COVER-BURNER BOX
22C	INSUL-WOOL
22A	TUBE-POST LH
22D	316282700 Frigidaire Oven Screw
22B	5300809968 Frigidaire Dishwasher P-1 Washer
22E	SHIELD-HEAT
22	WCI 5303208642
23	COVER-IGNITOR
