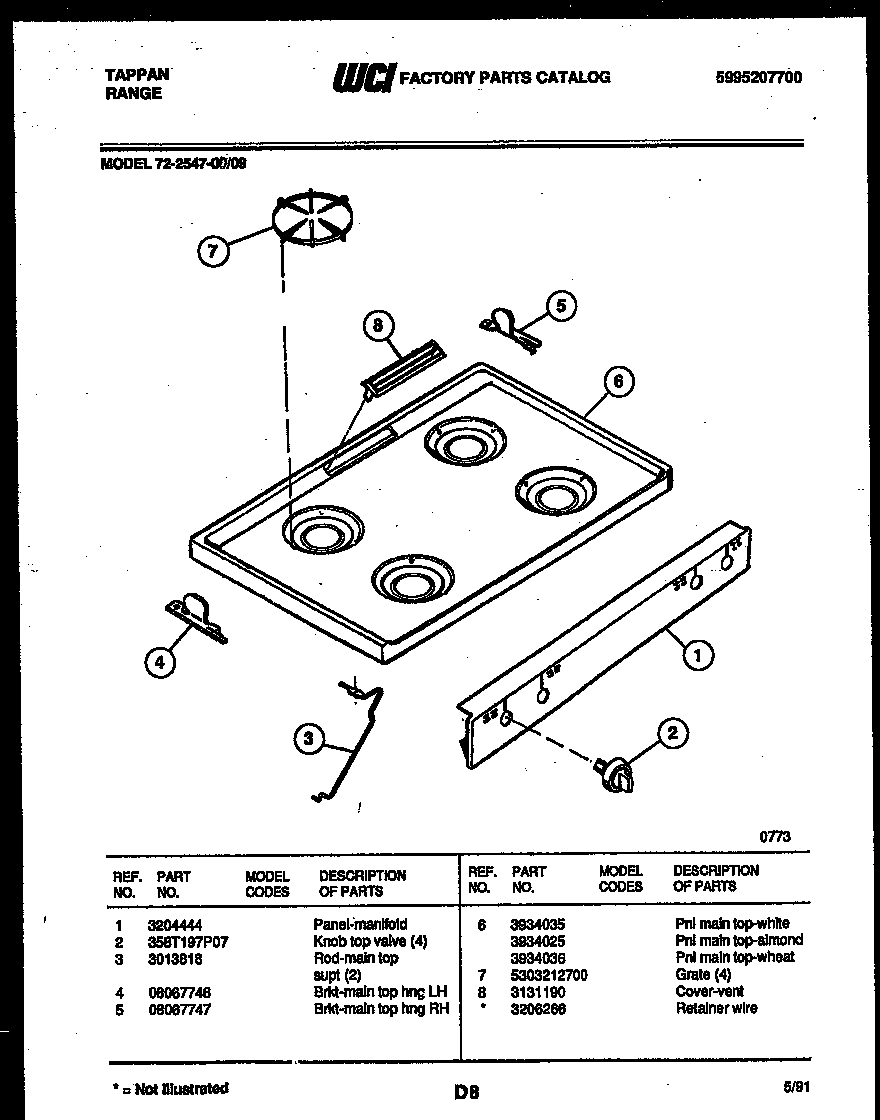

72-2547-66-09 03 – COOKTOP PARTS

72-2547-66-09 03 – COOKTOP PARTS

Written by

in

72-2547-66-09 03 – COOKTOP PARTS

Products

PositionProduct
*50699RETAINER WIRE
1WCI 3204444
2KNOB TOP VALVE (4)
3ROD – MAINTOP SUPT.
4BRACKET-HINGE,MAIN TOP LH
5BRACKET-HINGE,MAIN TOP RH
6PNL MAIN TOP (WHEAT)
7WCI 5303212700
8WCI 3131190
