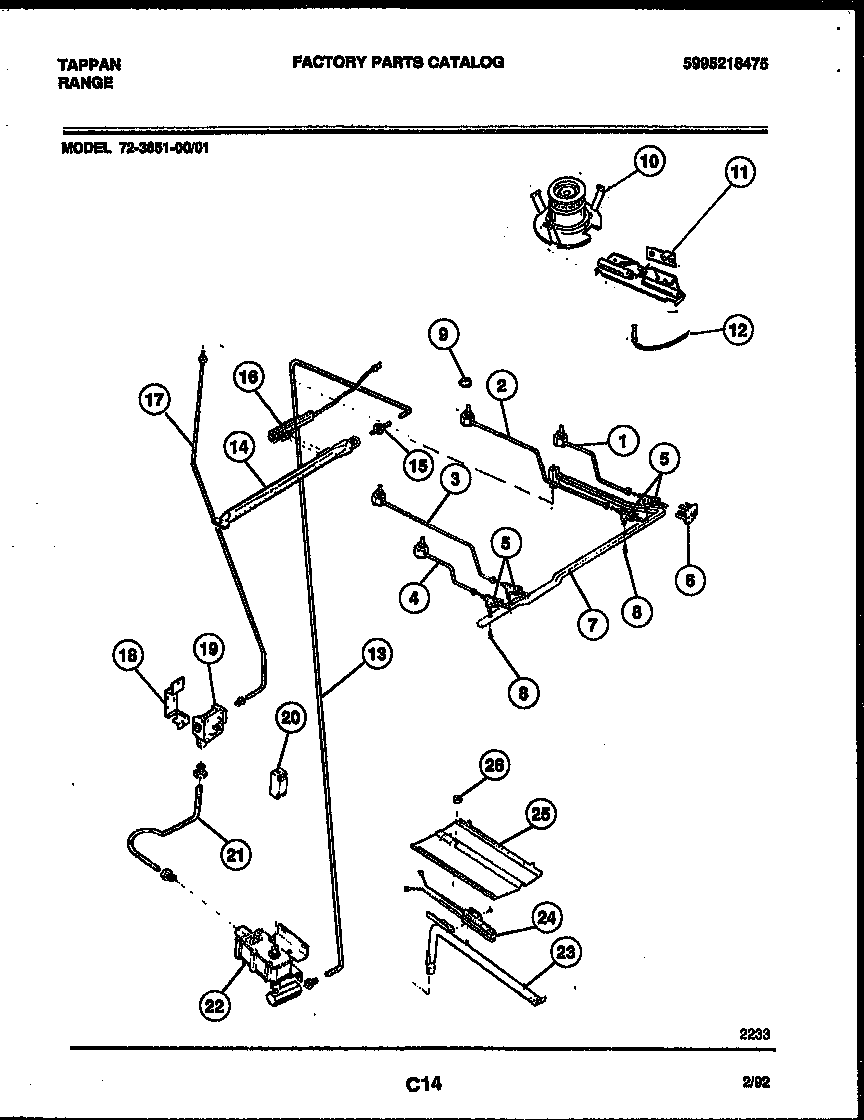

72-3651-00-01 06 – BURNER, MANIFOLD AND GAS CONTROL

Products

Position	Product
*64366	WCI 3018603
1	WCI 5303283665
2	WCI 5303283667
3	WCI 5303283668
4	WCI 5303283666
5	VALVE-TOP 3 POS (4)
6	SWITCH-IGNITER (4)
7	WCI 5303271375
8	316048200 Frigidaire Oven Screw
9	NUT, SPECIAL
10	BURNER TOP (4)
11	WCI 3018617
12	ELECTRODE
13	WCI 5303211073
14	BURNER-UPPER OVEN
15	WCI 5303211078
16	IGNITER-UPPER OVEN
17	TUBE-ALUM 3/8 REG/MANIFOLD PIPE
18	316091600 Frigidaire Oven Bracket
19	5303935125 Frigidaire Pressure Regulator
20	5303912606 Frigidaire Oven Range Spark Module 2+0 4 Large Terminals
21	TUBE-VALVE TO REGUL
22	5303208499 Frigidaire Safety Gas Valve
23	WCI 5303131634
24	5303935066 Frigidaire Oven Flat Igniter 17" Leads
25	WCI 3203265
26	5303013272 Frigidaire Oven Nut
27	WCI 3206267
