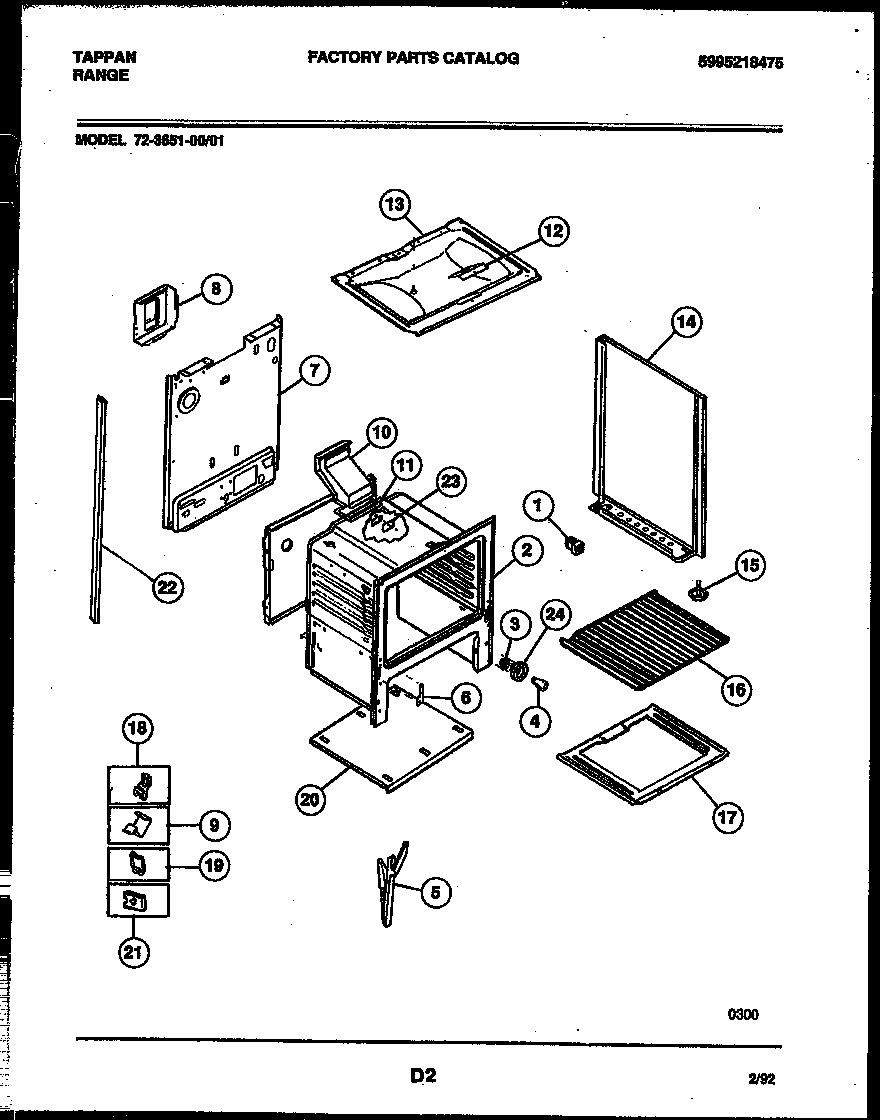

72-3651-00-01 07 – LOWER BODY PARTS

Products

PositionProduct
*64370WCI 08010570
*64371WCI 19100220001
*64369WCI 08067961
1SPACER-BODYSIDE, (8)
3316116400 Frigidaire Oven Light Socket
4316538904 Frigidaire Oven Lamp Light
5HINGE-DOOR ASSY
6WCI 3131570
6A5304534000 Frigidaire Cord
7WCI 3203082
8WCI 3131660
9CLIP-WIRE
10316204402 Frigidaire Oven Flue
11316542102 Frigidaire Flue Gasket
12WCI 08067757
13WCI 3011597
14PNL-B/S-RH-WHITE
14APNL-B/S-LH-WHITE
15SCREW-LEVELING
16316067902 Frigidaire Oven Rack
17BTTM-OVEN
17AINSULATION, OVEN WRAPPER
17BINSUL – OVEN BACK (NON-ILLUSTRATED)
185303284616 Frigidaire Range Bulb Clip Thermostat
19A3131903 Frigidaire Door/Drawer Bumper
19B316064600 Frigidaire Oven Support
19316539800 Frigidaire Oven Retainer
20WCI 5303270160
20ACOVER-POWER CORD, (NON-ILLUSTRATED)
21ACOVER-OVEN FRONT
213203010 Frigidaire Clip
22ATUBE-POST LH
22DSHIELD-HEAT
22WCI 5303208642
22C316282700 Frigidaire Oven Screw
22BINSUL-WOOL
23AANTI-TIP KIT (NOT ILLUSTRATED)
23COVER-IGNITOR
24WCI 5303271606
