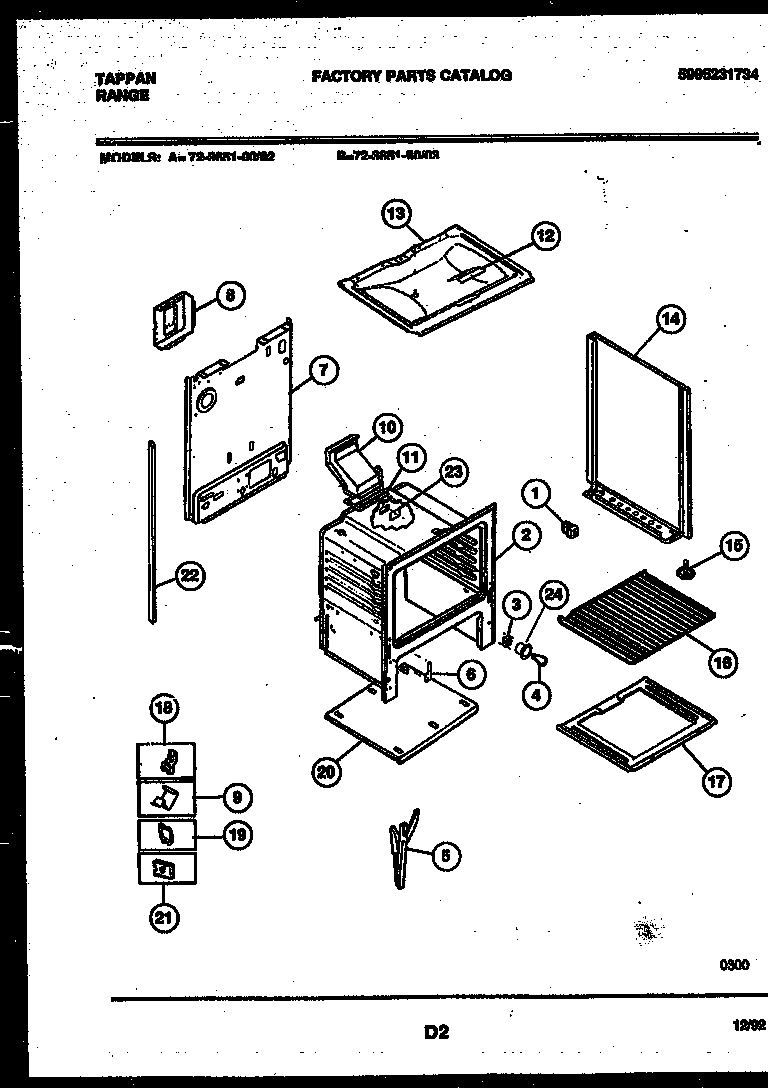

72-3651-00-03 07 – LOWER BODY PARTS

Products

Position	Product
*81741	WCI 3015371
*81740	WCI 08010570
*81740	WCI 19100220001
1	SPACER-BODYSIDE, (8)
3	316116400 Frigidaire Oven Light Socket
4	316538904 Frigidaire Oven Lamp Light
5	CHANL DR HNG (2)
6A	5304534000 Frigidaire Cord
6	WCI 3131570
7	WCI 3203082
8	WCI 3131660
9	CLIP-WIRE
10	WCI 3131904
11	316542102 Frigidaire Flue Gasket
12	WCI 08067757
13	WCI 3011597
14	PNL-B/S-RH-WHITE
14A	PNL-B/S-LH-WHITE
15	SCREW-LEVELING
16	316067902 Frigidaire Oven Rack
17B	INSUL – OVEN BACK (NON-ILLUSTRATED)
17A	INSULATION, OVEN WRAPPER
17	BTTM-OVEN
18	5303284616 Frigidaire Range Bulb Clip Thermostat
18A	WCI 08067961
19A	3131903 Frigidaire Door/Drawer Bumper
19B	316064600 Frigidaire Oven Support
19	316539800 Frigidaire Oven Retainer
20	WCI 5303270160
20A	COVER-POWER CORD, (NON-ILLUSTRATED)
21A	COVER-OVEN FRONT
21	3203010 Frigidaire Clip
22C	316282700 Frigidaire Oven Screw
22	WCI 5303208642
22D	SHIELD-HEAT
22B	INSUL-WOOL
22A	TUBE-POST LH
23A	ANTI-TIP KIT (NOT ILLUSTRATED)
23	COVER-IGNITOR
24A	WCI 5303271606
