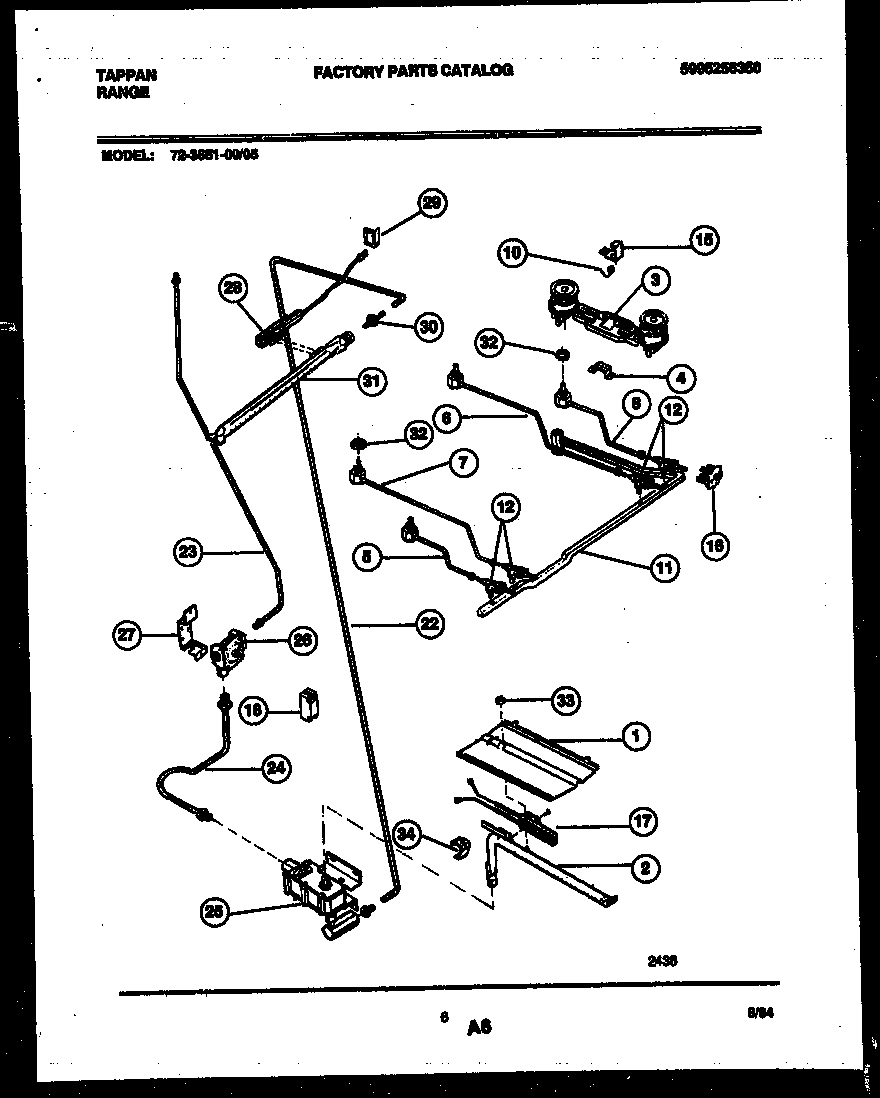

72-3651-00-05 06 – BURNER, MANIFOLD AND GAS CONTROL

72-3651-00-05 06 – BURNER, MANIFOLD AND GAS CONTROL

Written by

in

72-3651-00-05 06 – BURNER, MANIFOLD AND GAS CONTROL

Products

PositionProduct
1WCI 3203265
2WCI 5303131634
3WCI 316057100
4BRACKET BURNER MTG
5WCI 5303283666
6WCI 5303283667
7WCI 5303283668
8WCI 5303283665
10IGNITER-TOP BURNER, BASE, (2)
11WCI 316066201
12VALVE-TOP BURNER, 3 POSITION, (4), W/SCREW
153016993 Frigidaire Oven Retainer
16SWITCH-IGNITER, (4)
175303935066 Frigidaire Oven Flat Igniter 17" Leads
185303912606 Frigidaire Oven Range Spark Module 2+0 4 Large Terminals
22WCI 5303211073
23WCI 316065005
24WCI 316065003
255303208499 Frigidaire Safety Gas Valve
265303935125 Frigidaire Pressure Regulator
27316091600 Frigidaire Oven Bracket
28IGNITER-UPPER OVEN
29BRKT-CONNEC MTG
30WCI 5303211078
31BURNER-UPPER OVEN
32NUT, SPECIAL
335303013272 Frigidaire Oven Nut
34WCI 3018603
