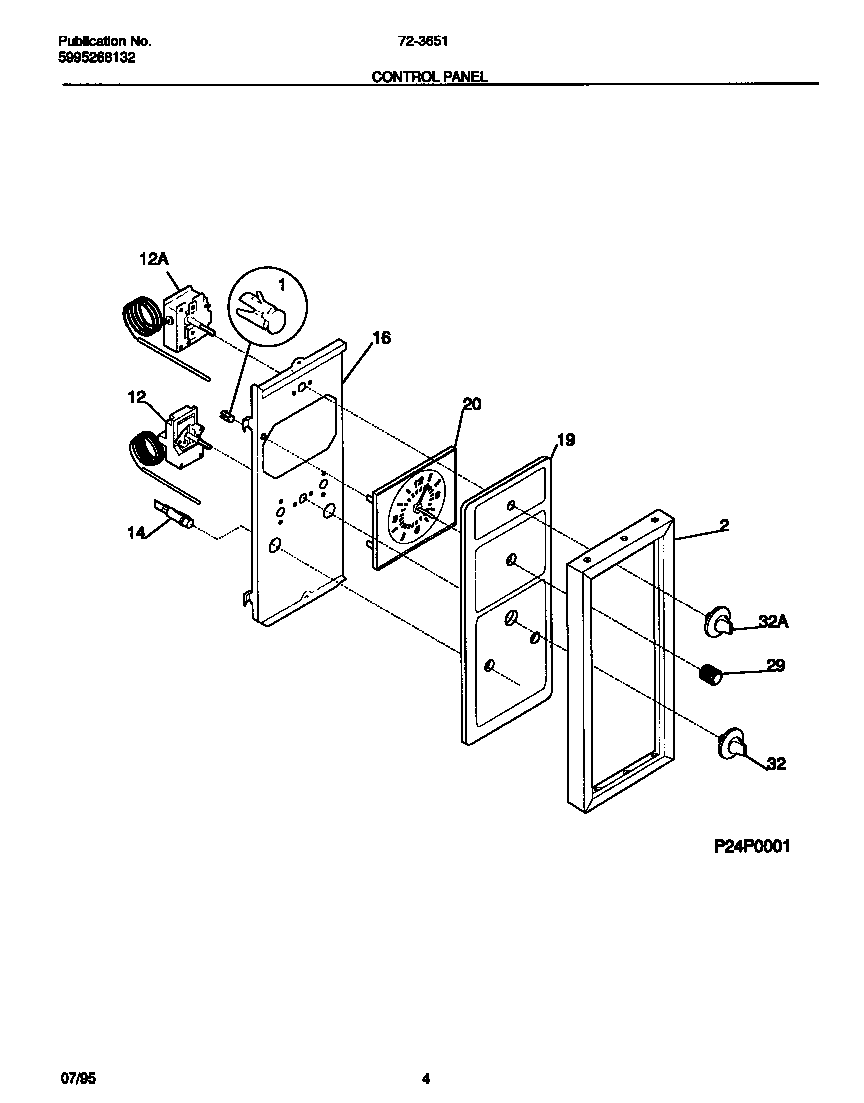

72-3651-00-06 03 – CONTROL PANEL

72-3651-00-06 03 – CONTROL PANEL

Written by

in

72-3651-00-06 03 – CONTROL PANEL

Products

PositionProduct
*41722WCI 5308010401
*41723WCI 316001423
1FSTNR-CLOCK
2TRIM-FRAME
12ATHERMOSTAT-OVEN, LOWER
12THERMOSTAT-OVEN
14WCI 5308037896
16PLATE, INSTRUMENT MTG
19PANEL-CONTROL, GLASS
20CLOCK/TIMER, ANALOG 3 STEM
29KNOB-CLOCK
32AWCI 5303284804
32KNOB-THERMOSTAT
