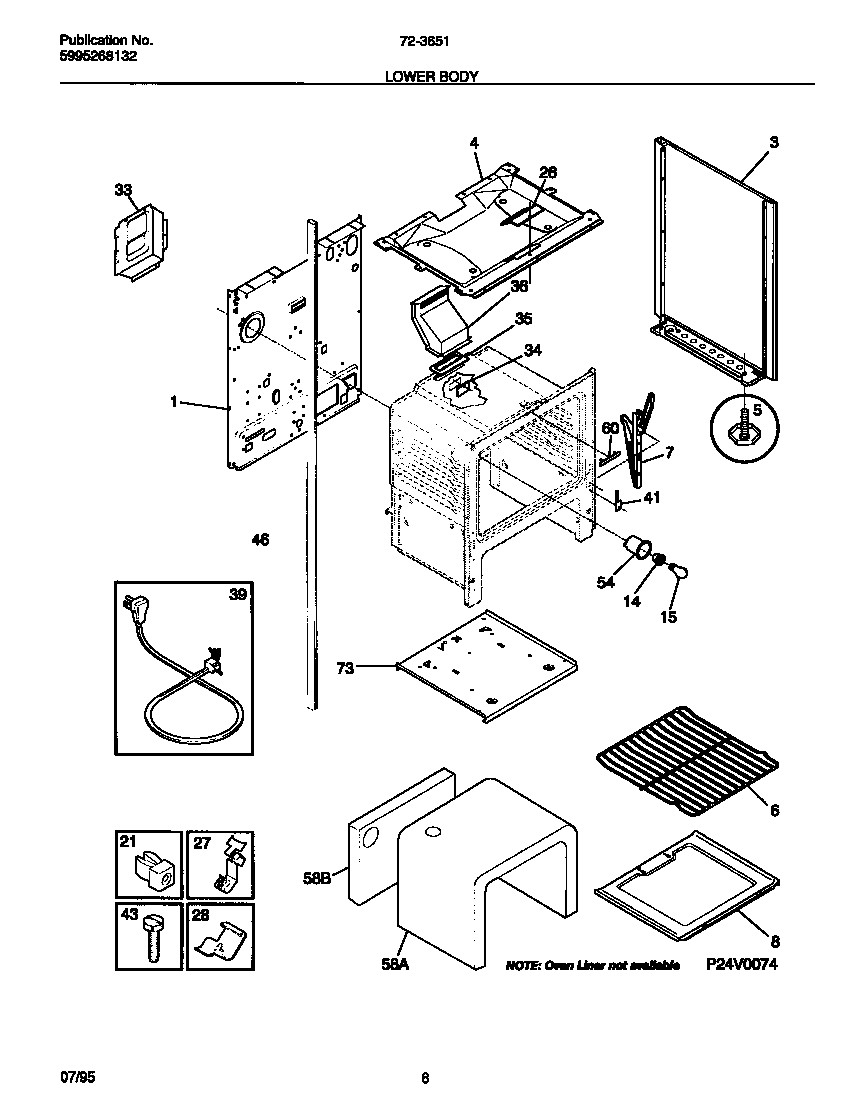

72-3651-00-07 05 – LOWER BODY

72-3651-00-07 05 – LOWER BODY

Written by

in

72-3651-00-07 05 – LOWER BODY

Products

PositionProduct
*417263203010 Frigidaire Clip
*41729WCI 316000623
*41724316539800 Frigidaire Oven Retainer
*41727INSUL-WOOL
*41725316064600 Frigidaire Oven Support
*41728SHIELD-HEAT
1WCI 316029405
3BANTI-TIP KIT (NOT ILLUSTRATED)
3WCI 316081004
3AWCI 316081005
4WCI 3011597
5ANUT, T,TYPE, LEVELING SCREW (NOT ILLUSTRATED)
5SCREW-LEVELING
6316067902 Frigidaire Oven Rack
7Hinge,oven door ,(2)
8PANEL-OVEN BOTTOM
14316116400 Frigidaire Oven Light Socket
15316538904 Frigidaire Oven Lamp Light
21SPACER-BODYSIDE, (8)
26WCI 08067757
275303284616 Frigidaire Range Bulb Clip Thermostat
28CLIP-WIRE
33WCI 3131660
34COVER-IGNITOR
35316542102 Frigidaire Flue Gasket
36WCI 3131904
395304534000 Frigidaire Cord
39AWCI 08067961
41WCI 3131570
43316282700 Frigidaire Oven Screw
46WCI 5303208642
46ATUBE-POST LH
54WCI 3051511
58AWCI 316054200
58INSULATION, OVEN WRAPPER
60COVER-OVEN FRONT
73BASE-BROIL
