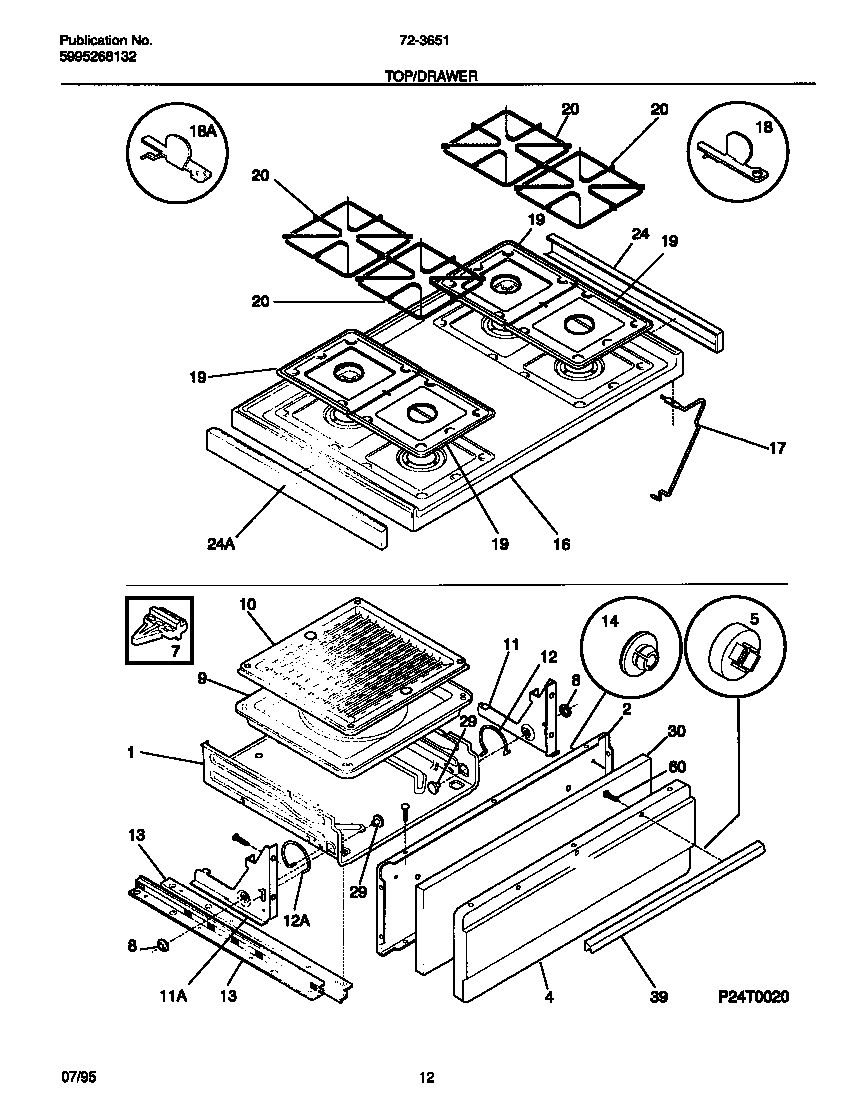

72-3651-00-07 07 – TOP/DRAWER

72-3651-00-07 07 – TOP/DRAWER

Written by

in

72-3651-00-07 07 – TOP/DRAWER

Products

PositionProduct
*417363016993 Frigidaire Oven Retainer
1DRAWER-BROILER
2WCI 3202803
4PANEL-BROILER, WHITE
5FSTNR, SPACER (2)
7GLIDE-DRAWER, REAR
8WCI 3131386
9PAN-BROILER
10WCI 5303131356
11ABRACKET-BROILER HINGE, LH
11BRACKET-BROILER HINGE, RH
12AWCI 3018618`
12SPRING-BROILER, RH
13WCI 3131153
14WCI 3206216
16WCI 3131351
17WCI 316066900
18BRACKET-HINGE,MAIN TOP RH
18ABRACKET-HINGE,MAIN TOP LH
19WCI 316021203
20WCI 5303272852
24AWCI 3051354
24WCI 3051355
29PIN, HINGE (2)
30INSULATION, BROILER DRAWER
39HANDLE
60SCREW-DRAWER HANDLE, 8 TRUSS HEAD, 10-16 X 1/2
