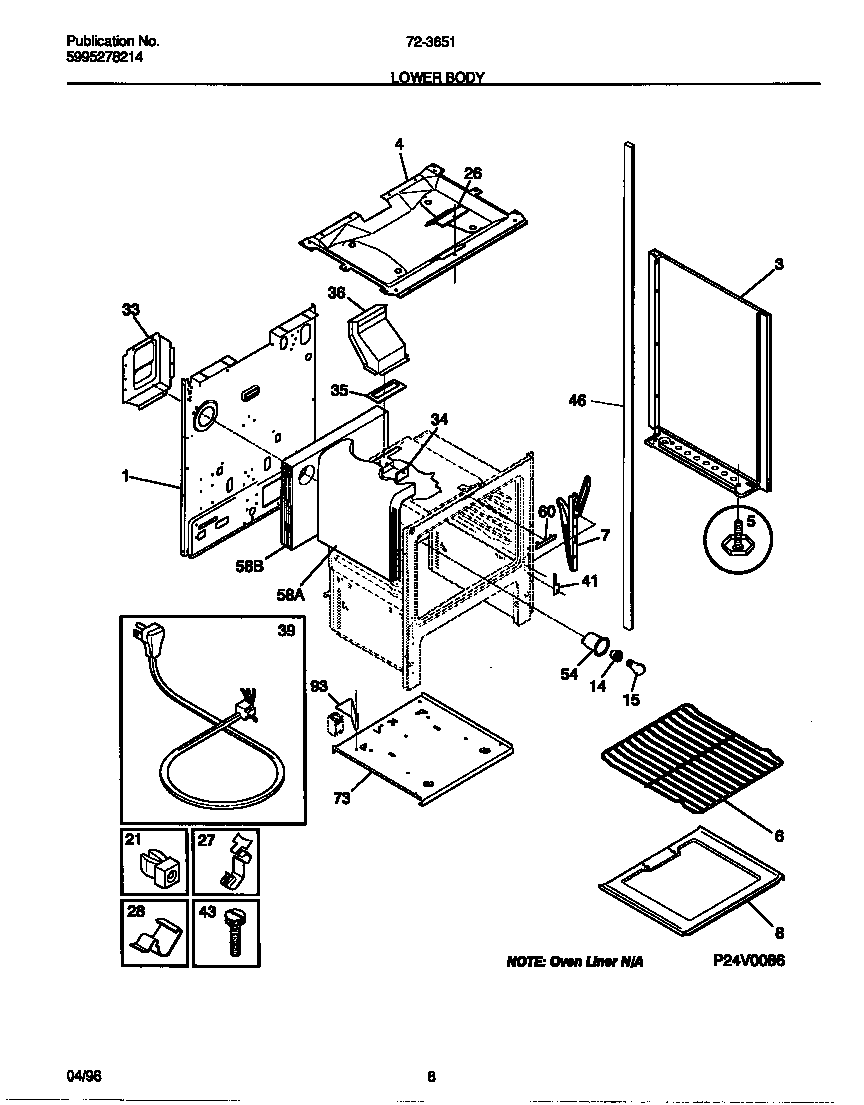

72-3651-00-08 05 – LOWER BODY

Products

Position	Product
*94208	WCI 5303280614
*94205	SHIELD-HEAT
*94207	316021105 Frigidaire Oven Screw
*94206	316539800 Frigidaire Oven Retainer
1	WCI 316029410
3	WCI 316081005
3	WCI 316081004
4	WCI 3011597
5B	316116000 Frigidaire Screw
5A	SCREW-LEVELING
5C	NUT, T,TYPE, LEVELING SCREW (NOT ILLUSTRATED)
6	316067902 Frigidaire Oven Rack
7	Hinge,oven door ,(2)
8B	316064600 Frigidaire Oven Support
8A	WCI 5303300406
14	316116400 Frigidaire Oven Light Socket
15	316538904 Frigidaire Oven Lamp Light
21	SPACER-BODYSIDE, (8)
26	WCI 08067757
27	5303284616 Frigidaire Range Bulb Clip Thermostat
28	CLIP-WIRE
33	WCI 316055601
34	COVER-IGNITOR
35	316542102 Frigidaire Flue Gasket
36	WCI 3131904
39A	5304534000 Frigidaire Cord
39B	WCI 08067961
41	WCI 3131570
43	316282700 Frigidaire Oven Screw
46B	TUBE-POST LH
46A	WCI 5303208642
54	WCI 5303271606
58	INSULATION, OVEN WRAPPER
58	INSUL – OVEN BACK (NON-ILLUSTRATED)
60	COVER-OVEN FRONT
73	BASE-BROIL
93	WCI 316055501
