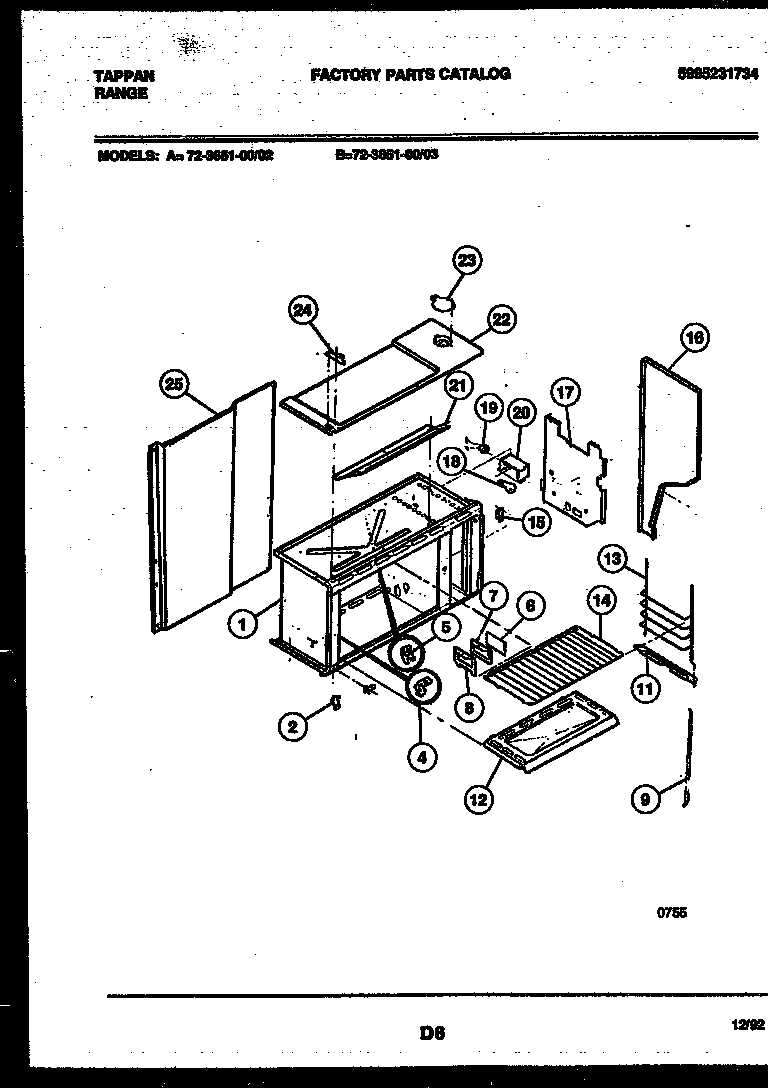

72-3651-23-02 10 – UPPER BODY PARTS

Products

Position	Product
*81748	WCI 08011676
*81748	WCI 3204440
*81748	RETAINER OVEN BURN UPPER
*81748	BRKT-CONNEC MTG
*81748	INSUL O/U UPPER
*81748	INSUL WOOL
2	HINGE-DOOR ASSY
4	WCI 08011665
5	5303284616 Frigidaire Range Bulb Clip Thermostat
6	GLASS-OVN LITE LENS
7	GSKT OVEN LIGHT
8	WCI 08011669
9	WCI 5303934092
11	GLIDE-OVEN BTM
12	WCI 3200488
13	WCI 08011674
14	RACK-OVEN, FLAT
15	WCI 08011680
16	PANEL-BODYSIDE, ALMOND, LH (NOT ILLUSTRATED)
16	PANEL-BODYSIDE, ALMOND, RH
17	SHIELD-WOOL
18	316538904 Frigidaire Oven Lamp Light
19	316116400 Frigidaire Oven Light Socket
20	WCI 08011684
21	FLUE BACK U/O
22	PNL-TOP U/O
23	WCI 08067732
24	HINGE-DOOR-TOP
25	WCI 3203082
