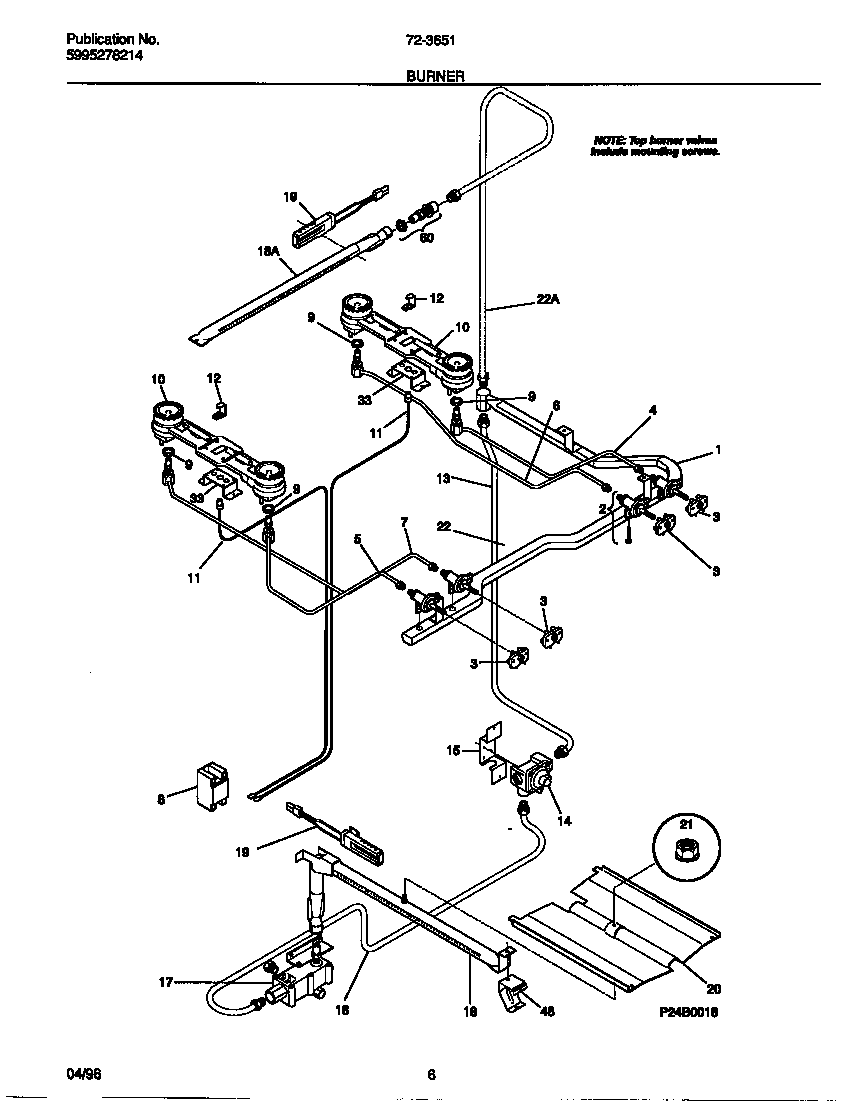

72-3651-23-08 04 – BURNER

72-3651-23-08 04 – BURNER

Written by

in

72-3651-23-08 04 – BURNER

Products

PositionProduct
*94204RETAINER-OVEN SPUD
*94203BRKT MIXER
1WCI 316066201
2AVALVE-TOP BURNER, 3 POSITION, (4), W/SCREW
2B316048200 Frigidaire Oven Screw
3SWITCH-IGNITER, (4)
4WCI 316051400
5WCI 316051401
6WCI 316051402
7WCI 316051403
85303912606 Frigidaire Oven Range Spark Module 2+0 4 Large Terminals
9NUT, SPECIAL
10WCI 316057100
11BIGNITER-TOP BURNER, BASE, 33“
11AIGNITER-TOP BURNER, BASE, (2)
123016993 Frigidaire Oven Retainer
13WCI 316065005
145303935125 Frigidaire Pressure Regulator
15316091600 Frigidaire Oven Bracket
16WCI 316065003
175303208499 Frigidaire Safety Gas Valve
18WCI 5303131634
18BURNER-UPPER OVEN
19BIGNITER-UPPER OVEN
19A5303935066 Frigidaire Oven Flat Igniter 17" Leads
20WCI 5303288409
215303013272 Frigidaire Oven Nut
22WCI 316065001
33BRACKET BURNER MTG
48WCI 3018603
60WCI 316070300
