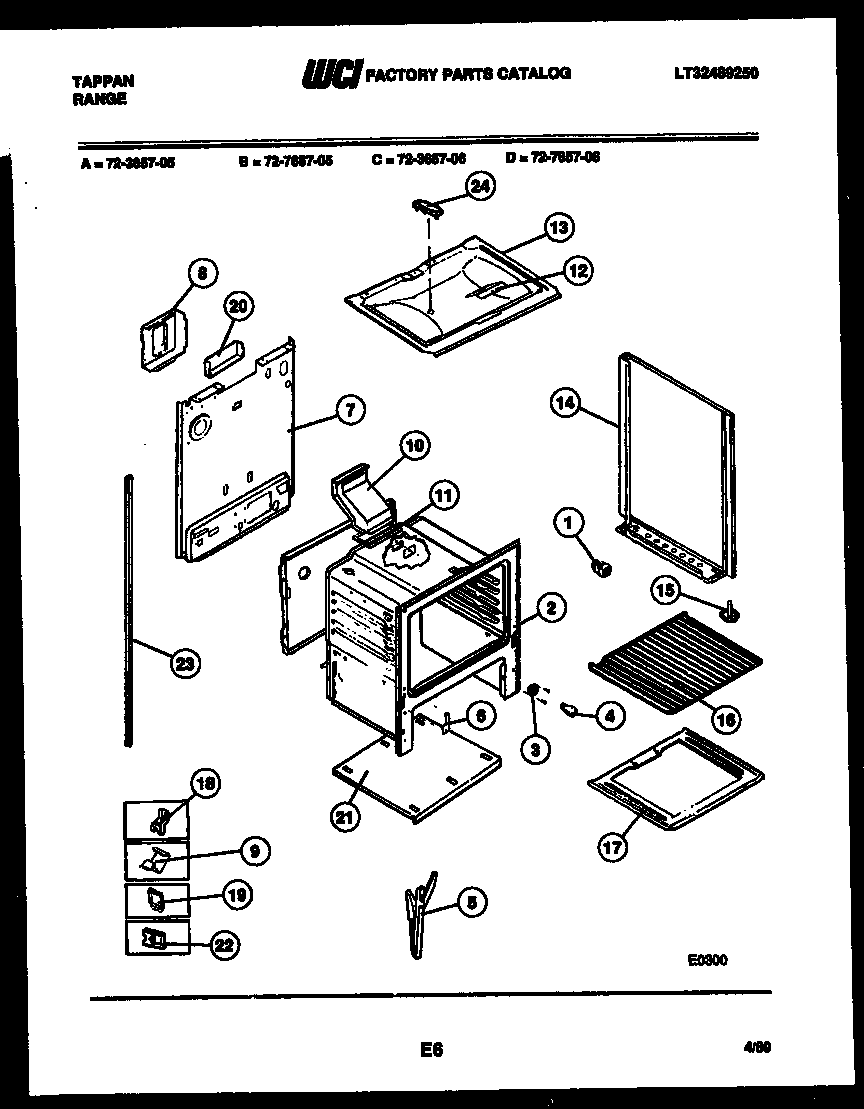

72-3657-00-05 09 – LOWER BODY PARTS

72-3657-00-05 09 – LOWER BODY PARTS

Written by

in

72-3657-00-05 09 – LOWER BODY PARTS

Products

PositionProduct
*22582316282700 Frigidaire Oven Screw
*22581INSUL-WOOL
*225815300809968 Frigidaire Dishwasher P-1 Washer
*22581WASHER-BLACK (4)
1SPACER-BDYSDE (8)
3316116400 Frigidaire Oven Light Socket
4316538904 Frigidaire Oven Lamp Light
5CHANL-DR HNG (2)
6WCI 3131570
6A5304534000 Frigidaire Cord
7WCI 3131567
8WCI 655T421F02-18
9CLIP, WIRE
10WCI 3131904
11316542102 Frigidaire Flue Gasket
12WCI 3131101
13WCI 095T030F02-86
14B/S-RH-(WHITE)
14AB/S-LH-(WHITE)
15WCI 636M004P01
16316067902 Frigidaire Oven Rack
17WCI 058T036F02-86
17BWCI 3131246
17AWCI 3131201
185303284616 Frigidaire Range Bulb Clip Thermostat
18AFSTNR-POWER CORD (NON-ILLUSTRATED)
19316539800 Frigidaire Oven Retainer
20WCI 3131348
20A3131903 Frigidaire Door/Drawer Bumper
20B316064600 Frigidaire Oven Support
21BCOVER-POWER CORD, (NON-ILLUSTRATED)
21APLATE-OV. LT MTG (NON-ILLUSTRATED)
21WCI 3131180
22ACOVER FRNT MAIN (NON-ILLUSTRATED)
223203010 Frigidaire Clip
23AWCI 3051724
23WCI 3051723
24WCI 3015371
