72-3657-23-01 06 – CONTROL PANEL

72-3657-23-01 06 – CONTROL PANEL

Written by

in

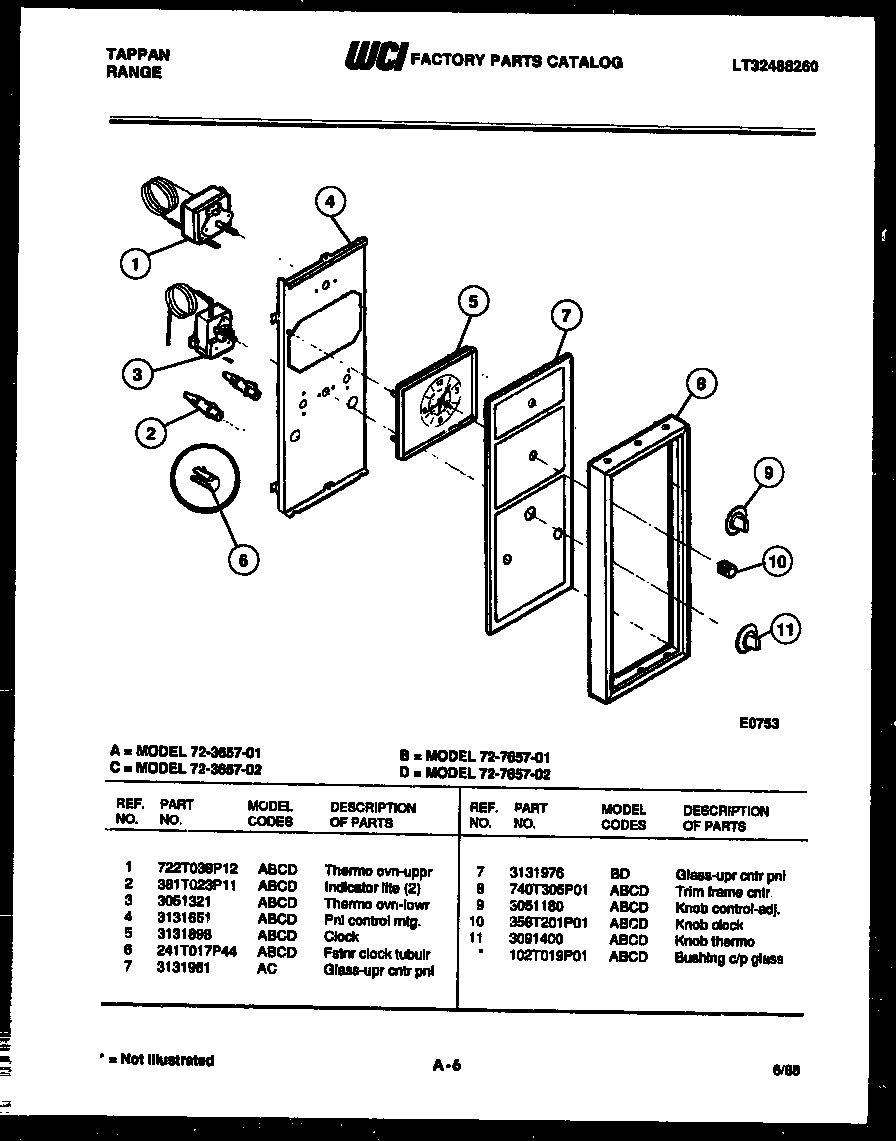

72-3657-23-01 06 – CONTROL PANEL

Products

PositionProduct
*13811BUSHING C/P
1THERMO-OVEN-UPPER
2INDICATOR LITE (2)
3THERMO OVN-LOWER
4WCI 3131651
5WCI 3131898
6FSTNR-CLOCK
7WCI 3131961
8TRIM-FRAME CONTROL PANEL
9KNOB-CONTROL UPPER
10WCI 358T201P01
11KNOB-THERMO LOWR
